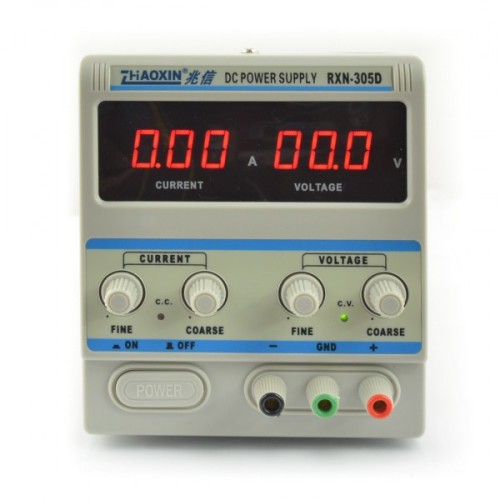

Laboratory power supply Zhaoxin RXN-305D 30V 5A

Product Code: ZAS-06276
Availability: 3-5 business days
Planned delivery date after ordering: 2021-08-05
73.00€
Ex Tax: 60.33€

Qty

Stabilized laboratory power supply with smoothly adjustable voltage in the range from 0 to 30 Volts and current in the range from 0 to 5 A. It has two modes of operation: of constant output voltage and of constant current load.


Key features:

  •      Smoothly adjustable output voltage in the range from 0 V to 30 V
  •         Smoothly adjustable output current in the range from 0 A to 5 A
  •     The device can operate in the following modes:
  •         Operation in the mode of CV (Constant Voltage) - of constant output voltage
  •         Operation in the mode of CC (Constant Current) - of constant current load
  •     Current capacity up to 5A
  •     Simultaneous read of measurement of voltage and output current on display
  •     Voltmeter: LCD display 3,5 digits with a resolution of 0.1 V
  •     Ammeter: LCD display, 3.5 digits with a resolution of 0.01 A
  •     Protection against short circuit (with a short circuit, it is automatically disabled)
  •     Active cooling via built in fan - constant operation


Specification:

  •     Supply voltage: 230 V / 50 Hz (network)
  •     Built-in digital display
  •     Regulation: coarse and precise (of voltage and current, current limitation)
  •     The short-circuit protection
  •     Operating temperature: -10°C – 40°C
  •     Humidity: <90%
  •     Reading accuracy of voltmeter: ± (1% + 1 digit)
  •     The precision of ammeter: ± (1% + 1 digit)
  •     The coefficient of voltage regulation CV: ≤ 0,01% + 2 mV
  •     Voltage of ripples and noise voltage: ≤ 0,5 mVrms
  •     Current stabilization: ≤ 0,2% + 3 mA
  •     Voltage of ripples and noise of current: ≤ 2 mArms
  •     External dimensions: 275 x 126 x 155mm
  •     Weight: 4,54 kg


Included:
Laboratory power supply Zhaoxin RXN-305D
Power cable
The user manual
