LED ring ZIP Halo HD for the BBC micro:bit - Kitronik 5672

Brand: Kitronik
Product Code: AN-16880
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
43.30€
Ex Tax: 35.79€

Qty

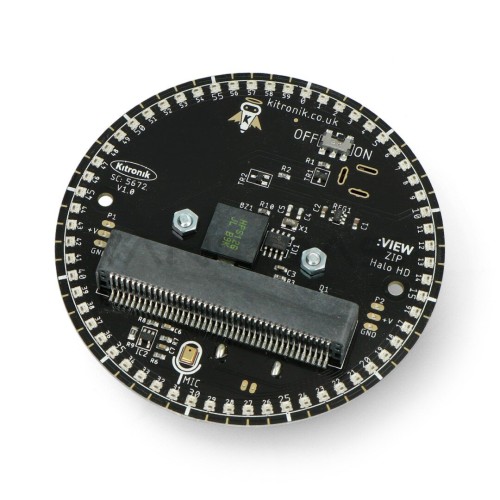

Round plate for the micro:bit module equipped with 60 addressed RGB LEDs. It also has P1 and P2 outputs in a standard 2.54 mm raster, a MEMS microphone for sound detection and a piezo buzzer for sound. On the board, you can also find a real-time RTC chip controlled by the I2C line of the micro:bit module. The board is equipped with 2 M3 mounting holes. The module is powered by 3 AA batteries (not included).

Main features:

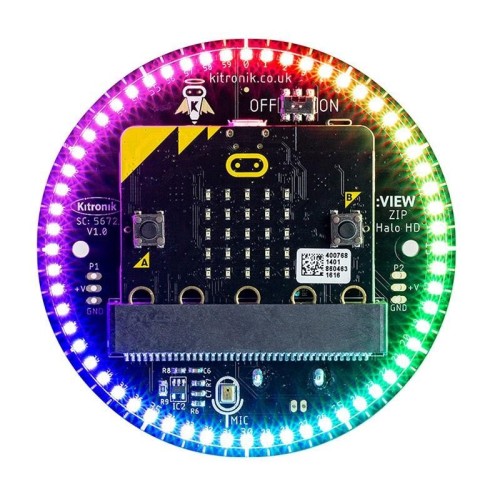

  • 60 addressed RGB ZIP LEDs
  • Pins P1 and P2 with a standard 2.54 mm grid
  • MEMS microphone and piezo buzzer
  • A real-time clock (RTC) controlled by an I2C line
  • Plug and Play

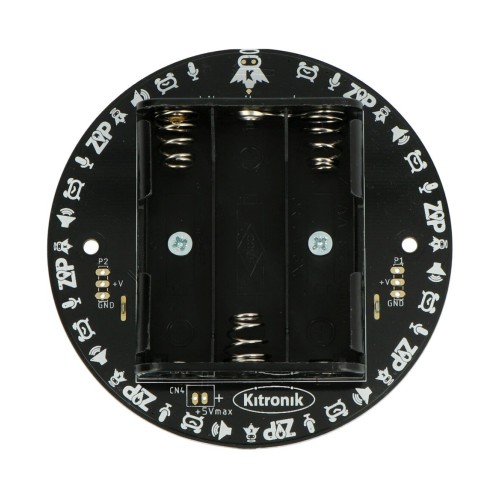

  • Powered by three AA batteries (not included)
  • Power on/off switch
  • Programmed by MakeCode using blocks or MicroPython
  • Two M3 mounting holes
Specification:
  • Supply voltage: 3.5 V to 5 V
  • Number of ZIP diodes: 60
  • Number of external channels: 3 (1x ZIP LED, 2x I/O pins 3 V / 50 mA)
  • Maximum current consumption (at maximum LED brightness): 0.9 A (15 mA / diode)
  • Dimensions: diameter 87 mm
  • Mounting holes: M3 with 68.4 mm spacing
