M5Atom Motion - motor and servo driver - with M5Atom Lite development module - STM32F0

Brand: M5Stack
Product Code: AN-18962
Availability: Temporarily Out Of Stock
44.90€
Ex Tax: 37.11€

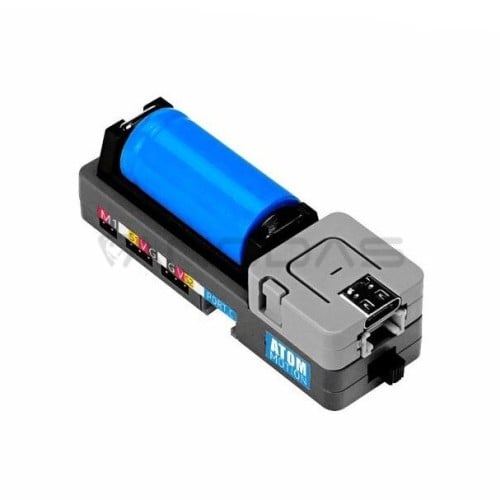

The kit consists of the M5Atom Motion overlay and the M5Atom Lite development module. The overlay has an integrated STM32 chip equipped with an I2C communication interface. It has a 4-channel servo controller and a 2-channel DC motor controller. It is powered by a removable 16340 Li-Ion battery included in the kit. Additionally, the M5Atom Motion overlay is equipped with an HY2.0-4P bi-directional interface extension and 4 output pins that can be used to connect additional sensors and peripherals.

Main features:

  • 4-channel servo controller
  • 2-channel DC motor controller
  • Powered by a replaceable 16340 Li-Ion battery
  • Equipped with an independent power switch
  • Bi-directional HY2.0-4P interface extension
  • M5Atom development module based on ESP32-PICO controller is also included
  • Programmed from EasyLoader plane - fast and easy to use
Specification:
  • Development module: M5Atom
    • Controller: ESP32-PICO
    • Flash memory: 4 MB
    • Connectors: GPIO, USB C, Grove
  • Driver chip: STM32
  • A number of channels:
    • 4 channels for controlling servos
    • 2 channels to control DC motors
  • Power supply: replaceable Li-Ion 16340 battery
  • Battery capacity: 700 mAh
  • Pin spacing: 2.54 mm
  • Communication interface: I2C
  • Interface address: 0x38
  • Programming: EasyLoader
  • Dimensions: 24 x 72 x 21 mm
  • Weight: 40 g
Set includes:
  • M5Atom Lite
  • M5Atom Motion
  • Screwdriver M2
  • Mounting screws M2 x 8 mm
  • USB cable type C - length 20 cm
