M5Stamp - I/O expansion module - M5Stack S002

Brand: M5Stack
Product Code: AN-21571
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
16.30€
Ex Tax: 13.47€

Qty

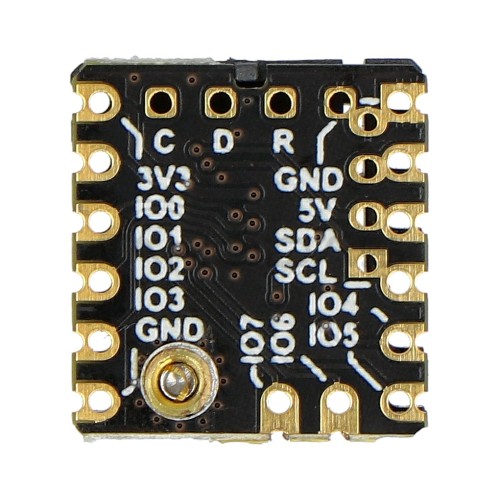

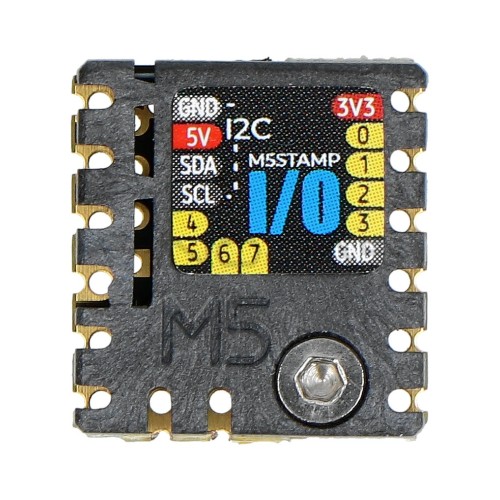

M5Stamp - I/O expansion module from M5Stack increases the number of pins by 8 inputs/outputs in the main module. It is based on the STM32F030 chip and uses the I2C interface for communication. Each digital input/output can be freely configured as ADC, servo/LED RGB interface. It can be used for multi-channel digital/analog signal acquisition and LED lighting/servo control applications.

Main features:

  • 8-channel expansion of inputs and outputs
  • Digital input/output
  • ADC input
  • SERVO control (PWM)
  • RGB LED control
  • Supports I2C address configuration
  • Three types of connection are possible (SMT, DIP, wired)
  • Peak temperature: 230 °C
Specification:
  • Microcontroller: STM32F030
  • I2C address: 0x45
  • Number of I/O extensions: 8
  • I/O support mode: Digital I/O, ADC, servo control, RGB LED control
  • Power supply: 3.3 V
  • Peak temperature: 230 °C
  • Dimensions: 15 x 4.7 x 16 mm
  • Weight: 2.5 g

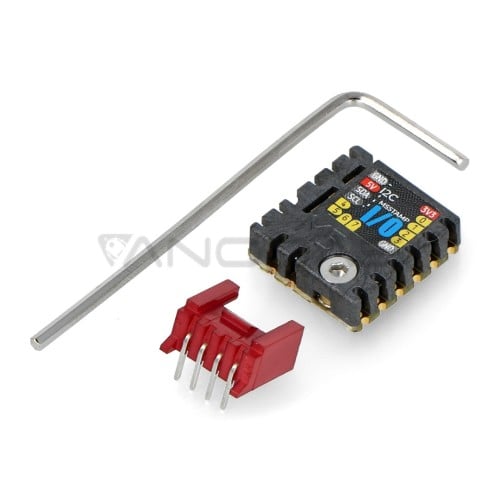

Set includes:
  • 1x M5Stamp - extended I/O module - M5Stack - SKU: S002
  • 1x HY2.0-4P female connector (red)
  • 1x 1.5 mm hex key
