Magician Chassis v2 - 3 Wheel Robot Chassis with DC Motor Drive + Accessories

Brand: OEM
Product Code: AN-06860
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
30.90€
Ex Tax: 25.54€

Qty

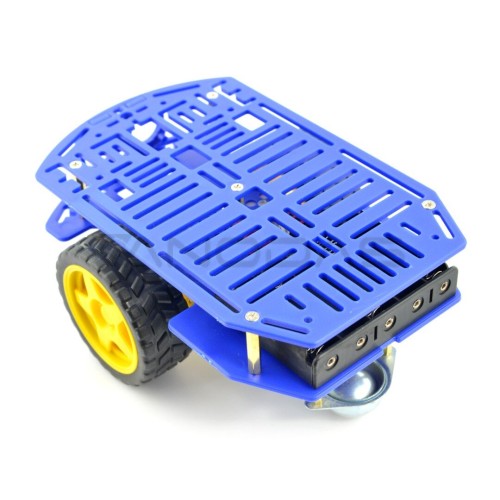

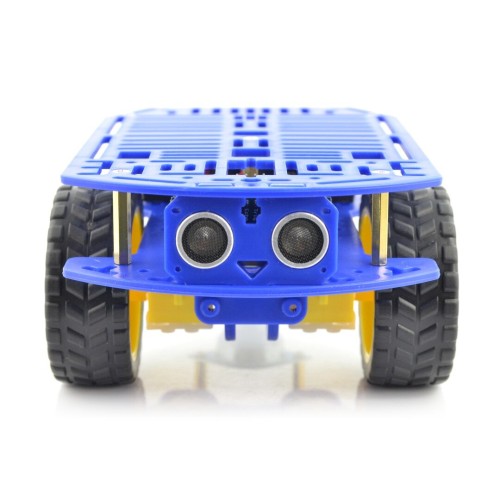

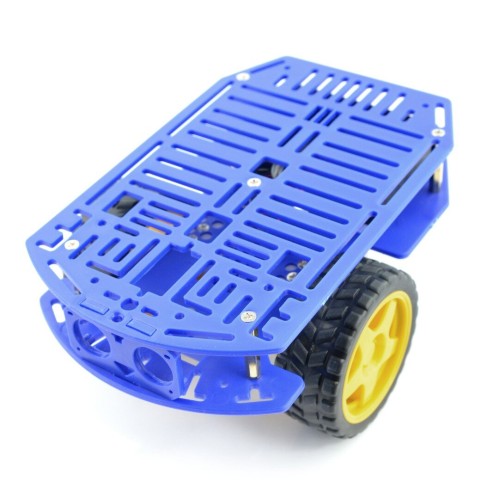

Magician Chassis is a platform for building a robot made by the Dagu company. Included are two DC motors with wheels with a diameter of 65 mm. In the front, there is a metal ball caster. The chassis components are made of acrylic, have mounting holes allowing you to install all the sensors, controllers (including the Arduino, Baby Orangutan, Raspberry Pi) and others. This version has an additional mounting sensor, ultrasonic distance sensor and IR sensor.

Specification:

  • Voltage motor power supply: max. 6 V
  • Torque: 0.8 kg/cm (0.78 Nm)
  • Gearbox: 1:48
  • Engine speed with no load: 90 +/-10 rpm
  • Consumption current of the motor without load: 190 mA (250 mA max.)
  • The current consumption of the engine at the fixed shaft 1, And
  • Wheels:
    • Diameter: 65 mm
    • Width: 30 mm
    • Plastic wheels with rubber tires
  • Design size: 110 x 174 mm

Set includes:

  • Two mounting platform
  • Two wheels with tires with a diameter of 65 mm
  • Two DC motors with gearboxes
  • Metal ball caster
  • Metal and plastic components
  • Container for the batteries (5 x AA) with female connector

Useful links:
Manual
