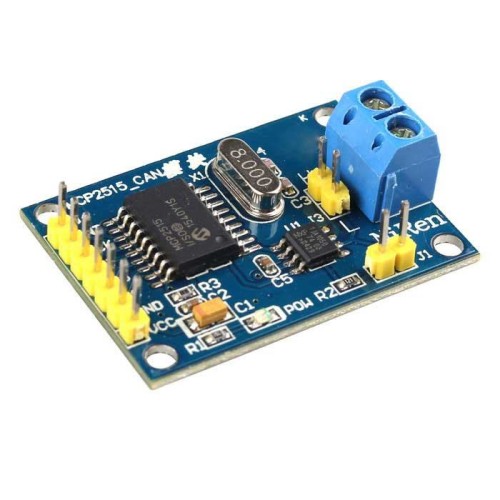

MCP2515 CAN Bus Module TJA1050 Receiver SPI Protocol

Product Code: AN0214-149A
EAN: 4779044513949
Availability: Vilnius Store In Stock
Kaunas Store In Stock
Ex Tax: 4.55€


Support CAN V2.0B specification, the communication speed 1Mb / S
0 to 8-byte data field
Three frames - standard, expand the frame and remote
DC5V power supply module & SPI interface protocol control
120 ohm termination resistors, Impedance matching, ensure drive capacity, long-distance data transmission against signal radiation
Module dimensions - 4 x 2.8 cm / 1.57 x 1.1" (approx.)
Working Current - typ. 5mA & 1μA standby current
Working Temperature - (Industrial grade) -40 ℃- +85℃
