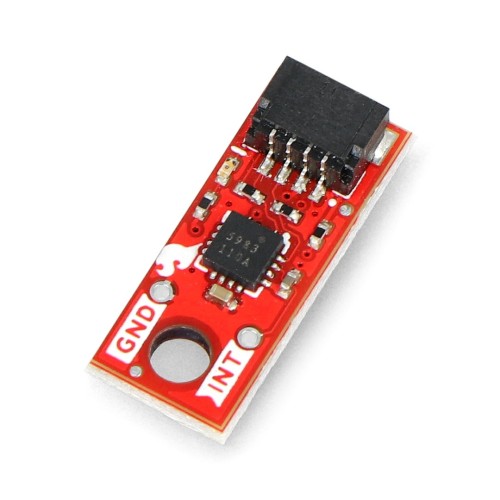

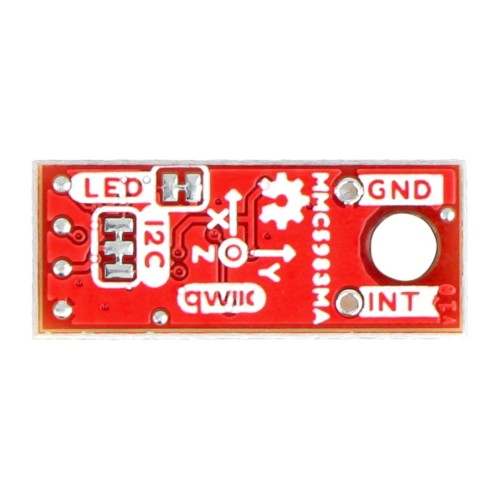

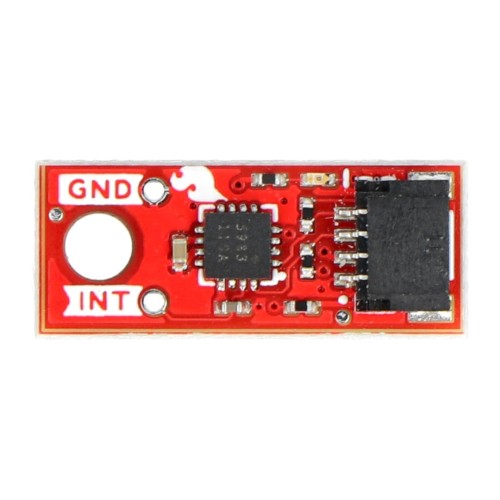

Micro 3-axis magnetometer - MMC5983MA - Qwiic - SparkFun SEN-19921
Brand: Sparkfun
Product Code: AN-21816
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-04
Product Code: AN-21816
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-04
Ex Tax: 24.88€
3-axis magnetometer in a miniature version, equipped with the MMC5983MA system by MEMSIC. It is characterized by high sensitivity, allowing the accuracy of the course on the level of ± 0.5°. The maximum data rate is up to 1 kHz, the FSR is ± 8G, and the resolution is 18 bit. The module is fully integrated and has a built-in degaussing circuit. The dimensions of the module are 19.1 x 7.6 mm, and there is a Qwiic connector on the board.
Specification:
Specification:
- Type: magnetometer
- Built-in chip: MMC5983MA by MEMSIC
- Measurement range: 3-axis X, Y, Z
- Communication interface: I2C bus and SPI interfaces
- I2C bus address: 0x30
- FSR: ± 8G
- Measurement resolution: 18 bit
- Total RMS Noise (RMS): 0.4 mG
- Course accuracy: ± 0.5º
- Maximum data rate: up to 1 kHz
- Built-in temperature sensor
- Built-in degaussing circuit
- Supply voltage: from 2.8 V to 3.6 V
- Tile sizes: 19.1 x 7.6 mm
Tags: micro, 3-axis, magnetometer, mmc5983ma, qwiic, sparkfun, sen-19921, accelerometers, gyroscopes, and, magnetometers
