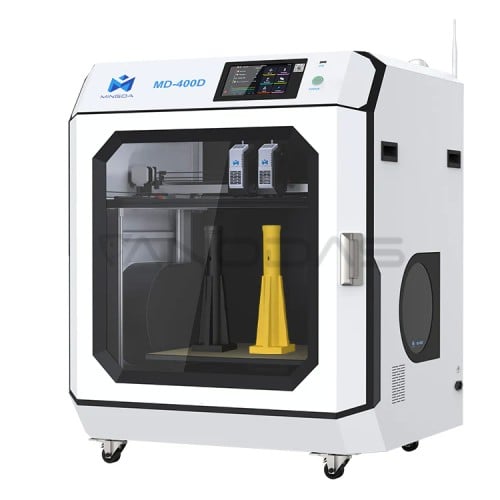

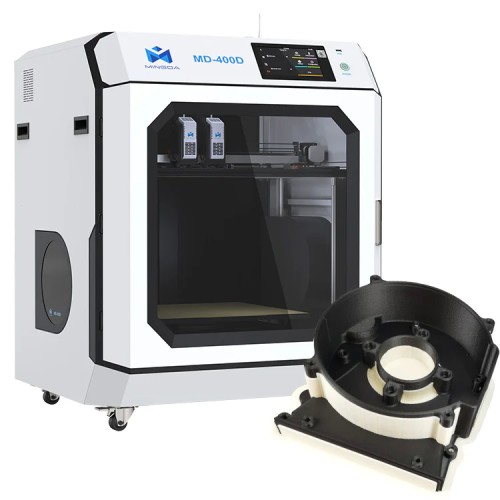

MINGDA MD-400D High-speen IDEX ​​3D Printer

The MINGDA MD-400D 3D printer really has a lot of impressive features. Thanks to the many materials and versatile design

it has the potential to redefine expectations in the field of 3D printing.

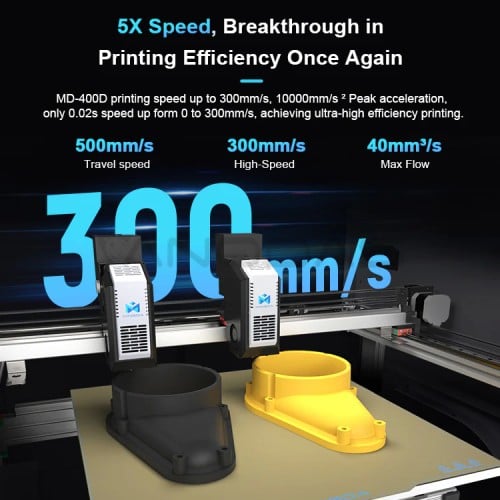

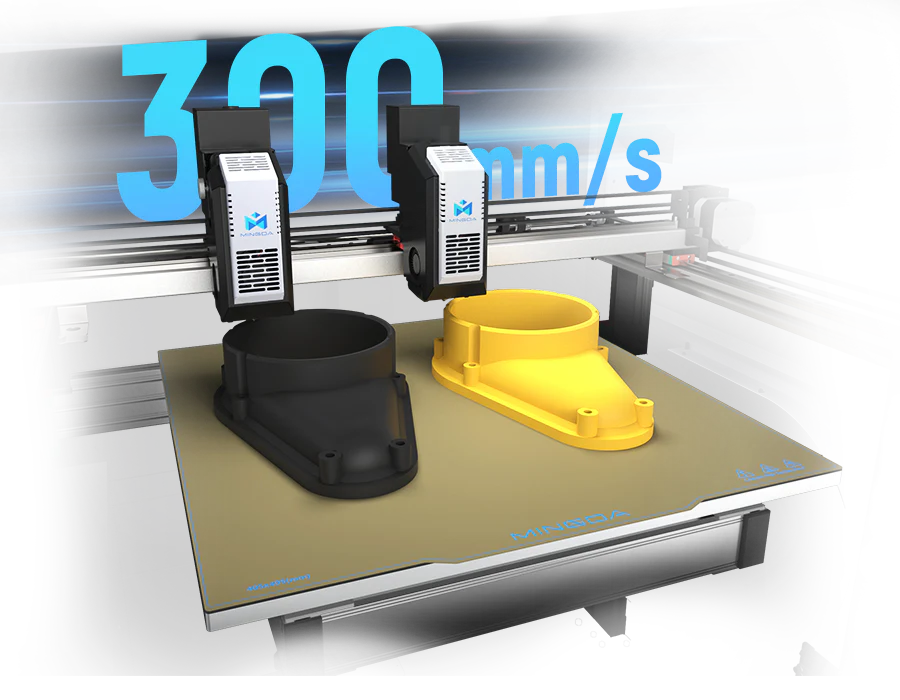

5X speed, once again a breakthrough in printing efficiency

MD-400D printing speed up to 300mm/s, 10,000mm/s ² Maximum acceleration, only 0.02s accelerates printing from 0 to 300mm/s, resulting in extremely high printing efficiency.

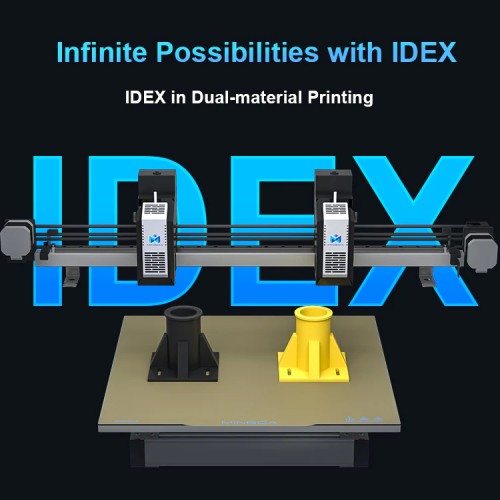

Compared to a multi-material unit, IDEX bi-material printing requires less filament change time and less waste.

In addition, IDEX offers the cleanest dual-extruder solution that prevents cross-contamination. This creates a clean interface between the two

materials, remove with ease and avoid stains and weird fusing along the seam.

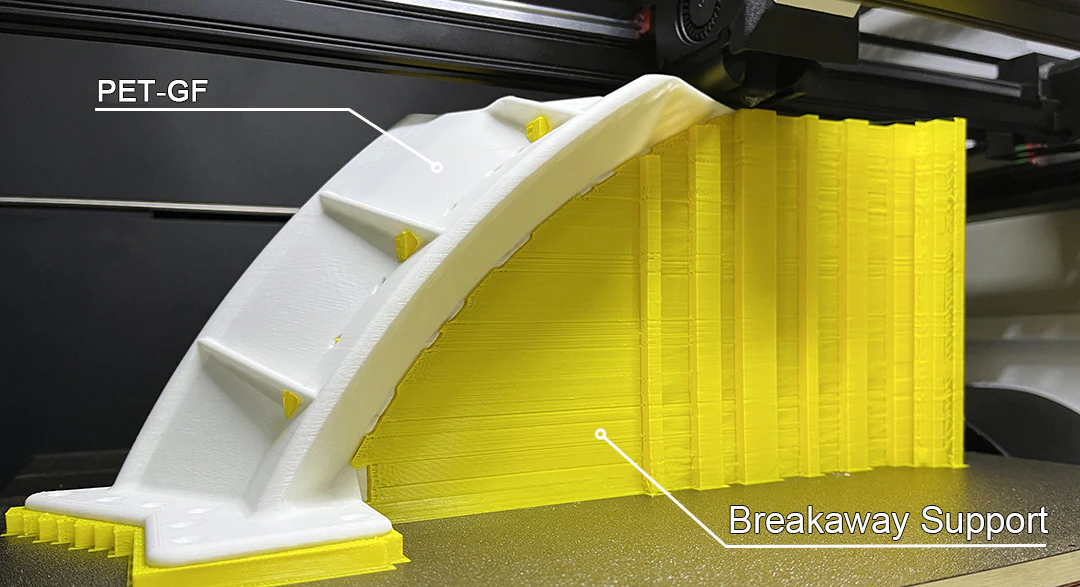

Broken support thread

It is much easier to remove the support, the supported surface comes out clean and smooth.

Dissolvable support thread

Complex models with internal geometries and hollow structures can be printed using a water-soluble filament.

1+1>2

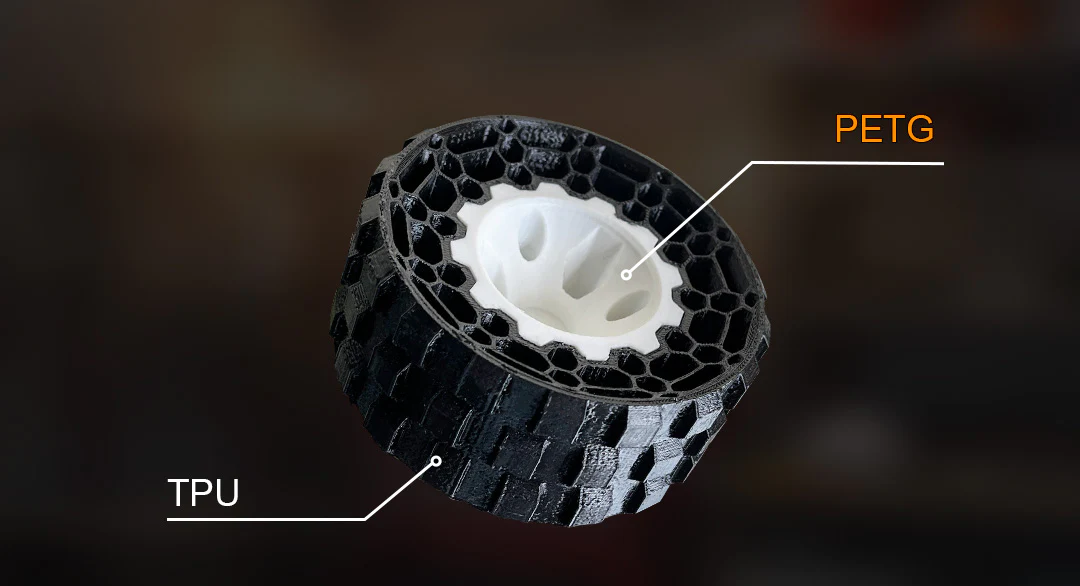

Two-material prints. You get the most out of two sets of features in one print. Combine the strength of PETG with

TPU flexibility for functional parts that can withstand daily wear and tear impressively. Also print multi-part objects as

the whole When not assembled, the object acquires stronger interrelationships and is therefore less vulnerable.

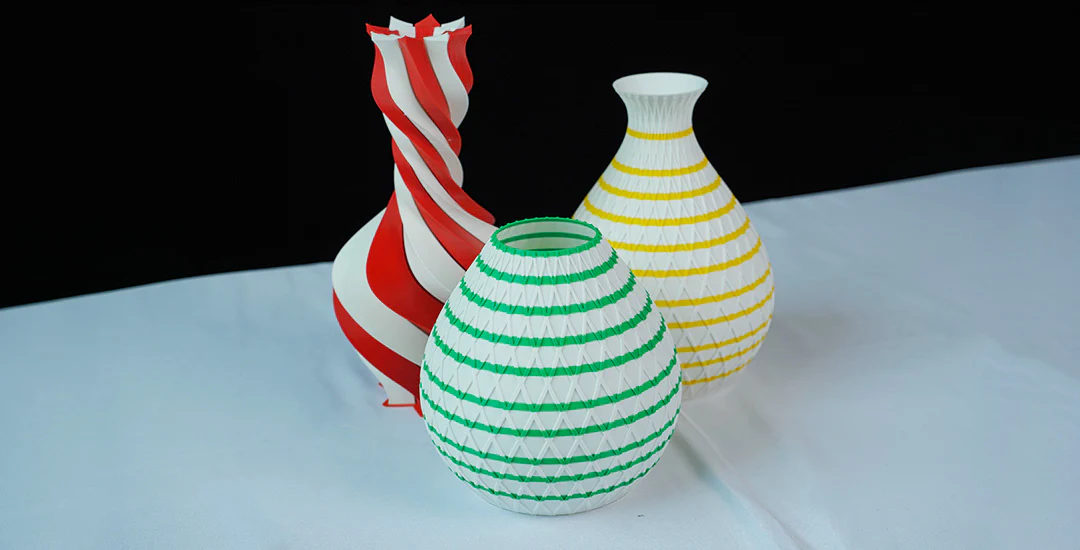

Two-color prints. Add personality to your concept models, miniatures,

party supplies, gifts and home decor.

Use different materials for walls and infill. When printing filler with economical materials and large diameter

tip, now you can spend most of your time and money on perfecting the exterior.

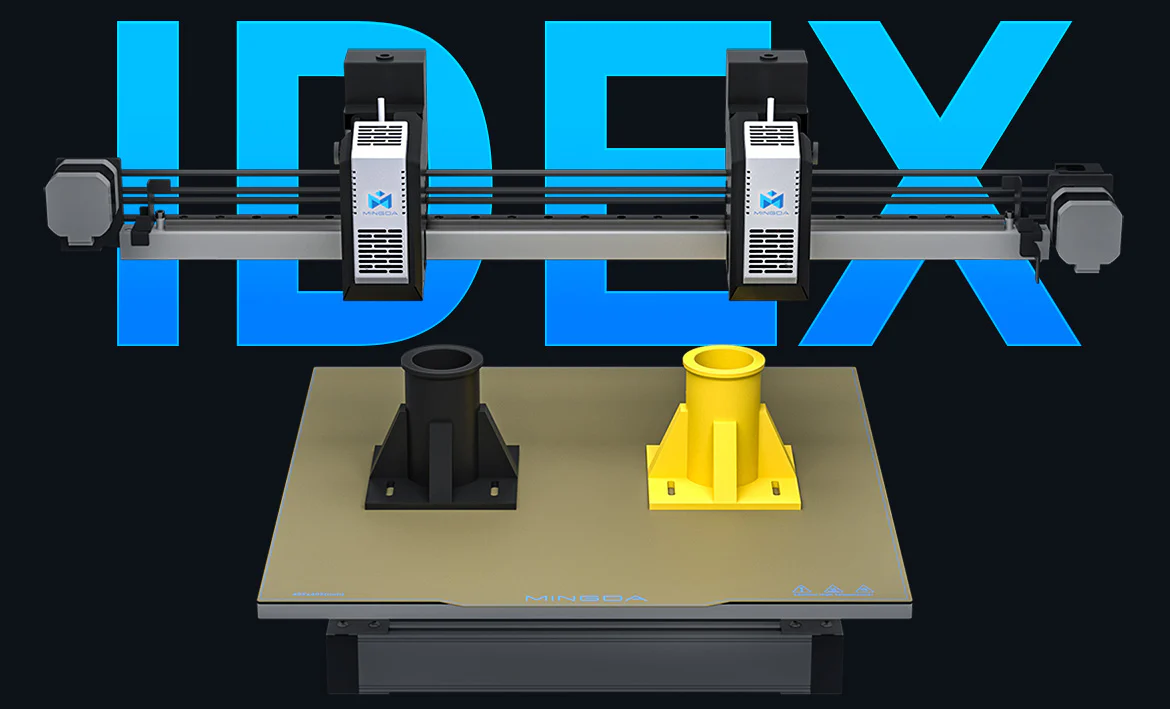

Print in parallel

Cut your waiting time in half, double your productivity. IDEX is the only extrusion system with two separate extruders

moves independently in the X-axis, so you can print two prints at once.

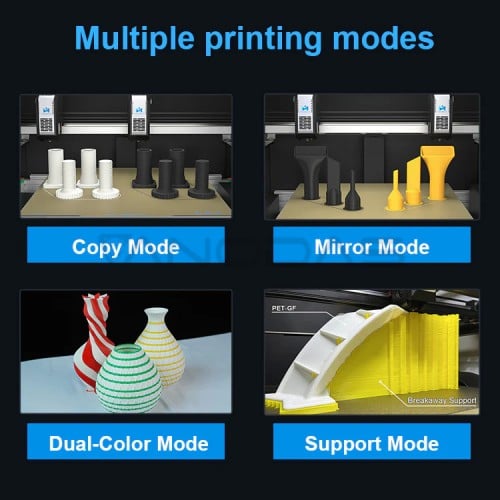

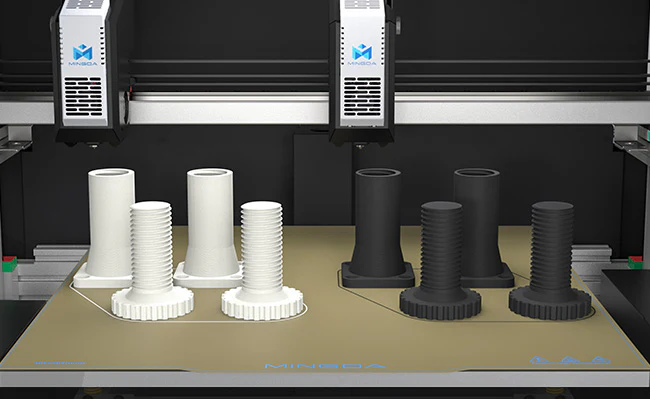

Copy mode

Print two identical objects in one go. It is particularly suitable for batch printing, empowering studios and enthusiasts.

Mirror mode

The MD-400D directly mirrors your model and prints the original and the mirror in one go. For a symmetrical model, you can import half of it and print in mirror mode to reduce waiting time by 50%, perfect for quick drafts and concept models.

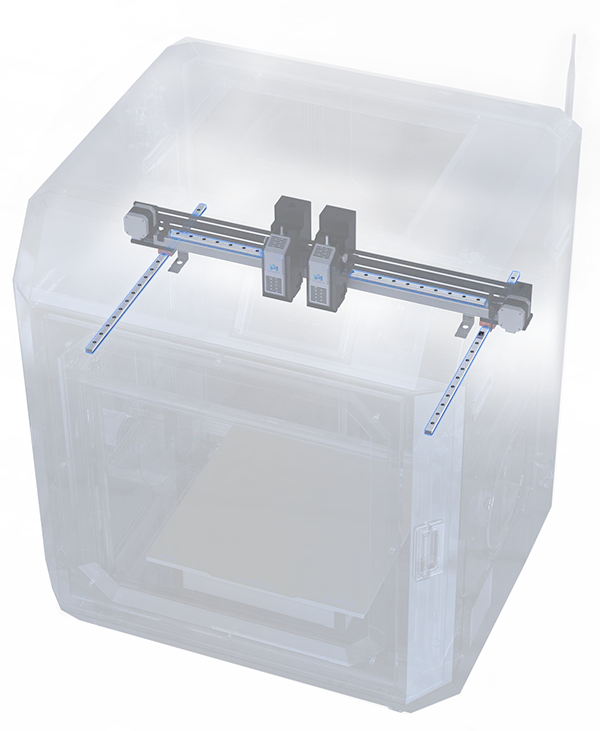

High precision linear rails

Industrial-grade linear rails are CNC-milled to the micron level, ensuring smooth and stable motion. A big increase in precision, strength and durability so you can enjoy fast, accurate and stable production.

XY-axis displacement calibration

Fine tune the XY axis to align the center of the right extruder nozzle with the origin of the XY axis.

Z-axis offset calibration

Fine-tune the Z axis to align the center of the right extruder nozzle with the origin of the Z axis.

Input shaper

Reduce vibration patterns and make the surface smoother

Traffic control

Improved print quality and accuracy. Flow control allows precise control of the amount of filament to be extruded, reducing errors such as over/under extrusion. This results in smoother prints with sharper details.

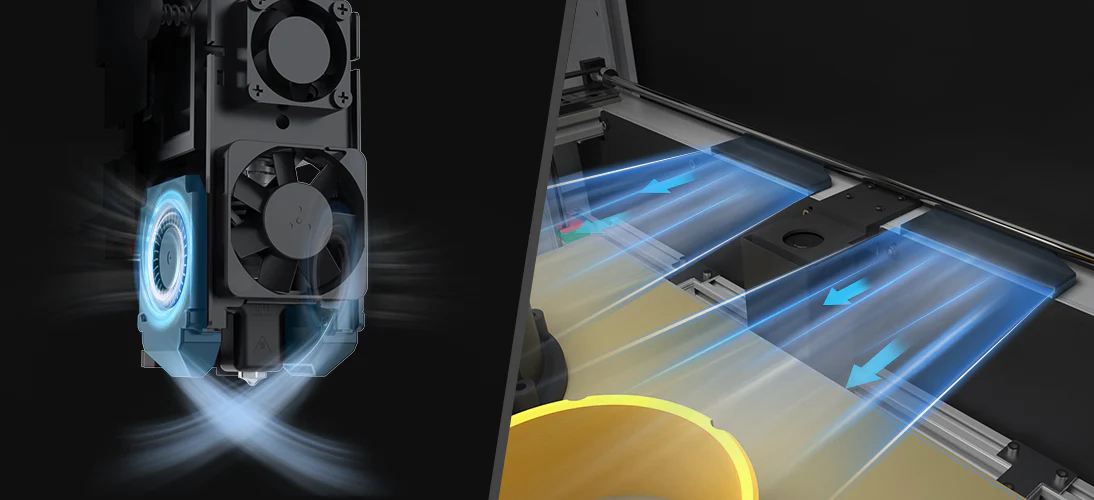

New cooling system design

The dual cooling system really takes model cooling to the next level with an aerodynamic air channel design that inflates models

with intensely powerful directional airflow for better cooling capabilities and perfect prints.

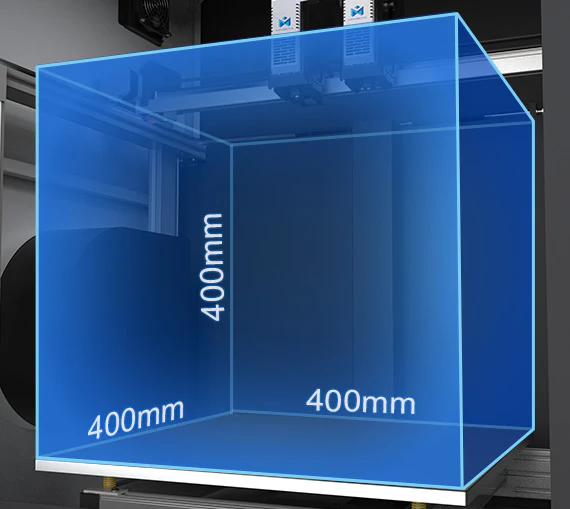

Large working field

Working area: 400mm*400mm*400mm;

meets most prototyping printing needs

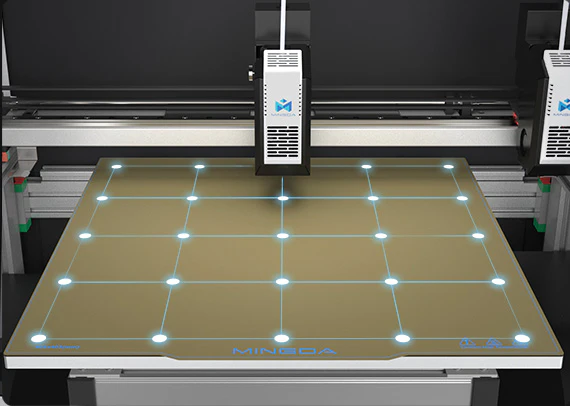

Free leveling

Automatic leveling system greatly improves printing efficiency and quality stability. This helps reduce failed prints due to misaligned plate construction. Precise calibration of nozzle spacing also allows 3D printers to print models with finer layer resolution.

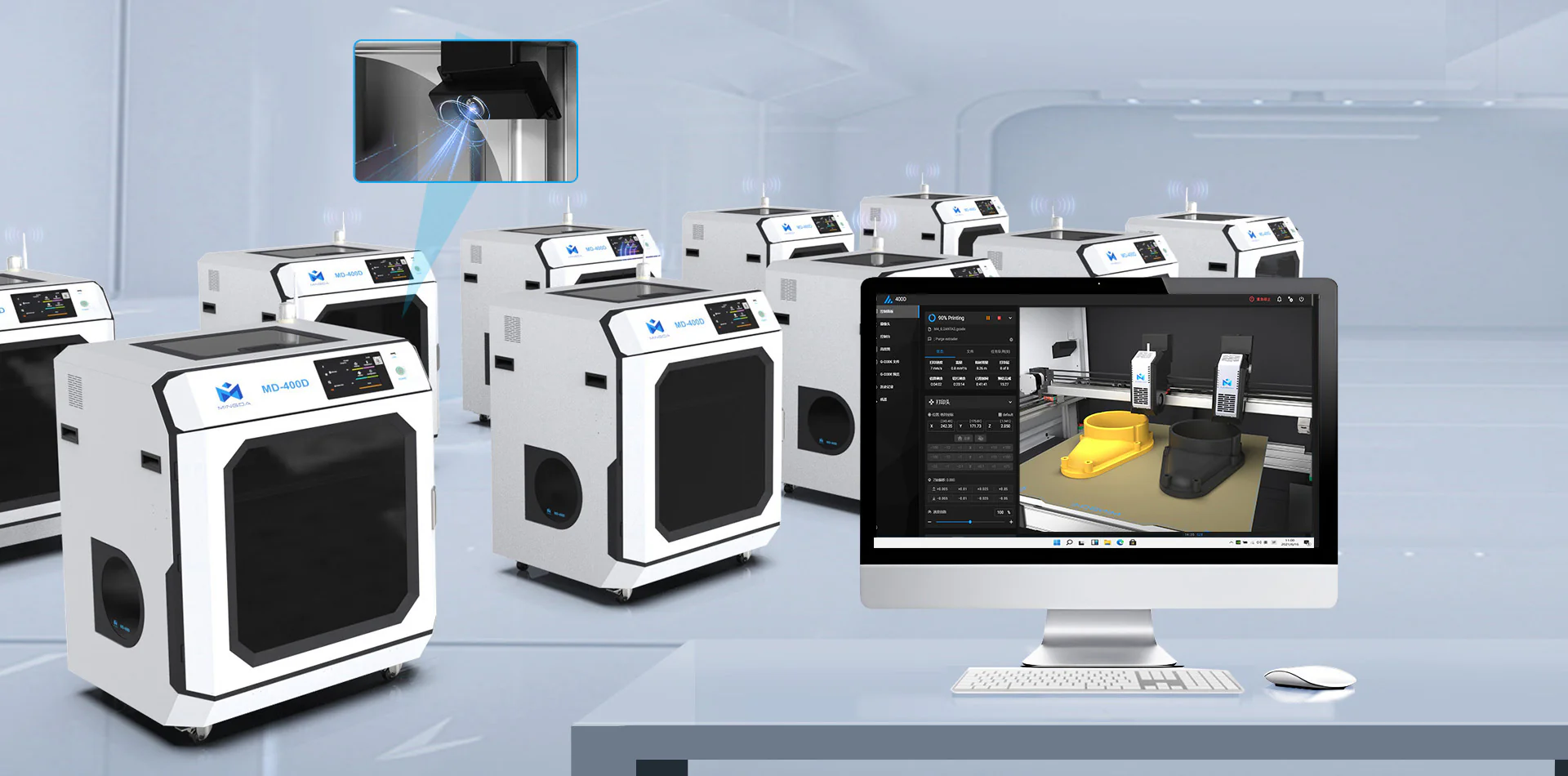

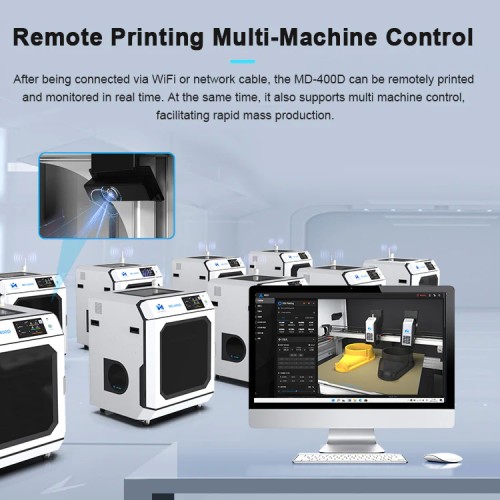

Control of multiple machines for remote printing

When connected via WiFi or a network cable, the MD-400D can be printed and monitored remotely

in real time. At the same time, it also supports multi-machine control, facilitating rapid mass production.

PEI's flexible printing platform

It has strong adhesion, high temperature resistance and is suitable for various consumables. It can be easily removed by bending.

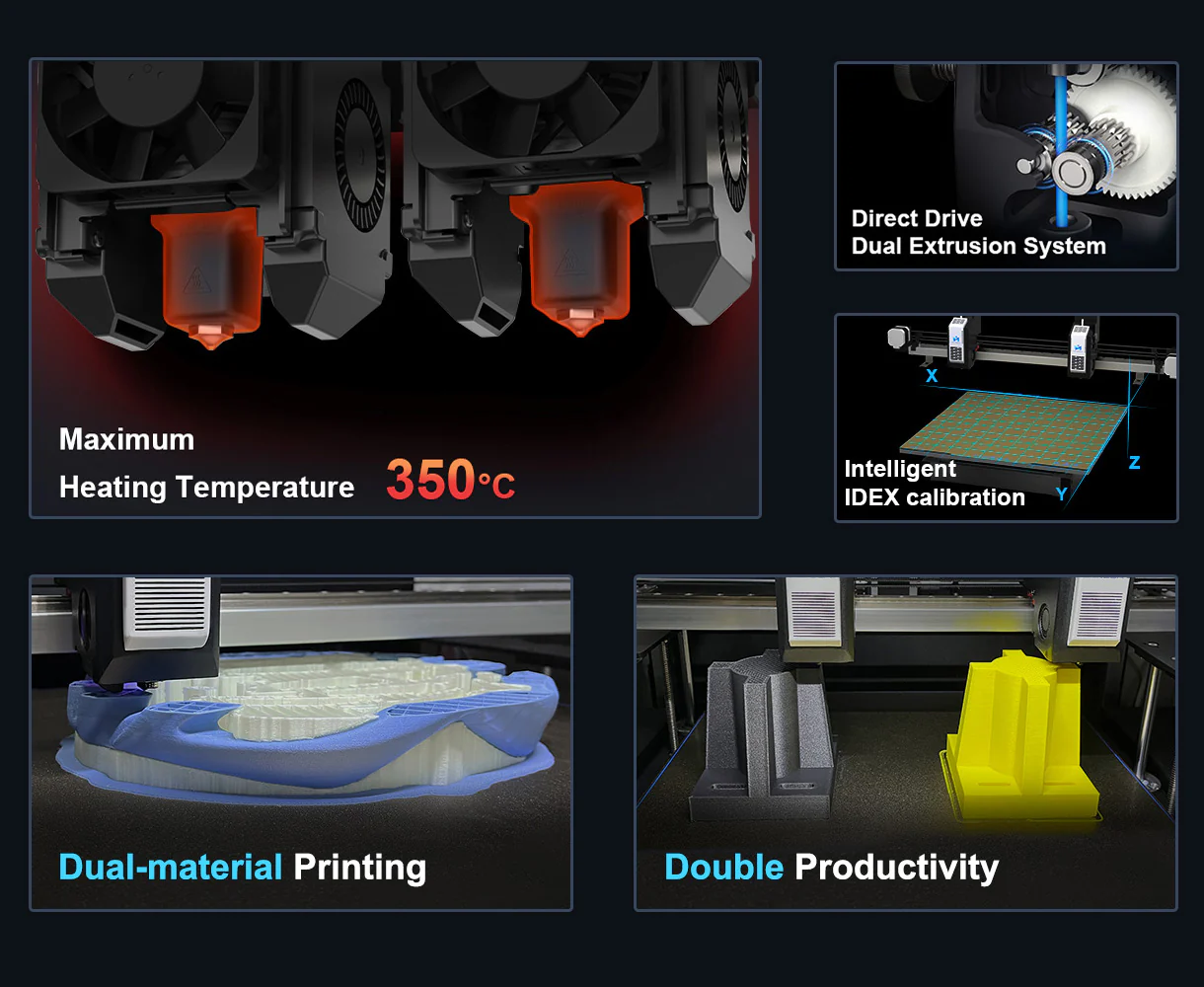

Fast Heating Hotend

The maximum hotend temperature is 350°C. It can be heated up to 200°C in about 40 seconds; The heating speed does not change at 220V and 110V voltage.

MINGDA's self-developed core hardware ensures fast and smooth operation.

Powered by a 6-core processor, this high-performance 64-bit self-designed motherboard ensures fast data processing and fast 3D printing tasks. With 32 GB of memory, you can quickly store, export and print large files.

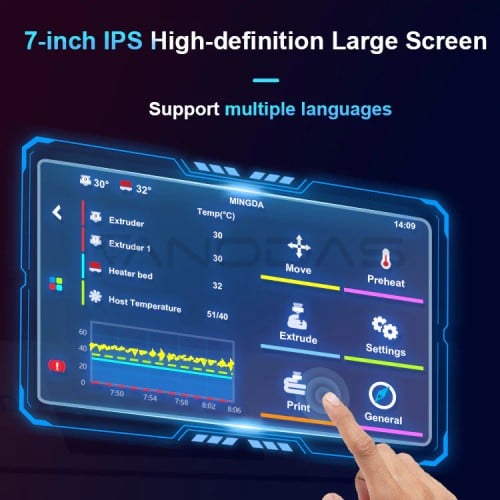

7-inch IPS high-definition large screen

The MD-400D has a 7-inch IPS high-definition computer screen. Compared with traditional LCD screens, it can display bright, rich and natural high-quality images at any angle. At the same time, it is more environmentally friendly and saves electricity.

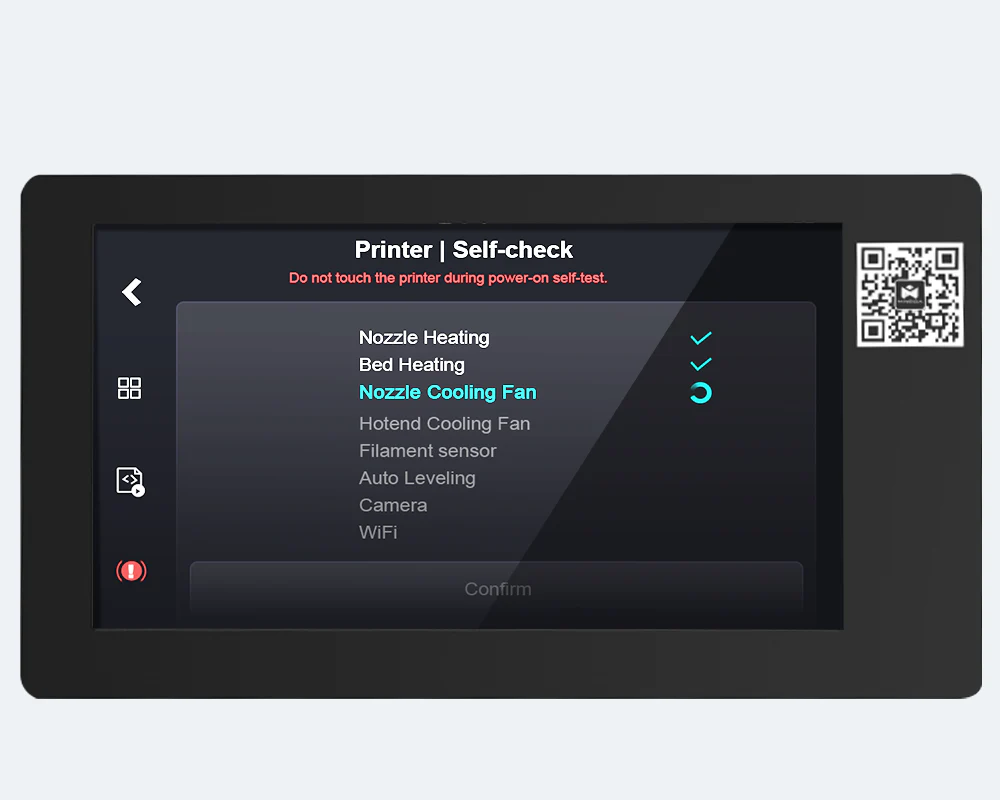

Power-on check

When the power is turned on, it can automatically check the status of the extruder, hot bed, camera, auto-leveling, fan and other components; if there are any deviations, the printer screen will display a prompt for quick and convenient processing

Smart continuous printing function

The machine can automatically continue printing after power supply, less worry about printing failure.

Automatic thread detection

It will pause the printing process if it runs out of thread or if the thread breaks.

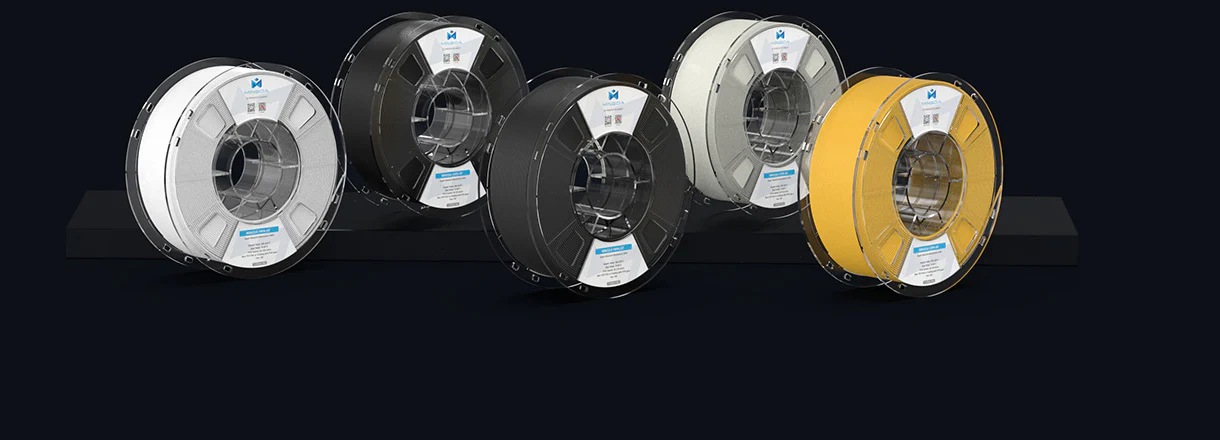

Compatible with:

• Common filament: PLA, TPU, PETG, ASA, etc.;
• Engineering filament: HtPA, PET-GF, PET-CF, PA12-CF, HTPA-GF, HTPA-CF, ABS-GF25, ABS-CF20, PA-GF25, PA-CF25, etc.
• Support thread: S-Mulit, S-HtPA, PVA, etc

Specifications:

• Model: MD-400D
• Printing technology: fused deposition modeling (FDM)
• Working area: 400x400x400mm
• Copy mode: 400(2*200)*400*400 mm
• Mirror mode: 320(2*160)*400*400 mm
• Machine dimensions: 690 * 790 * 910 mm
• Extruder Type: IDEX (Independent Dual Extruders)
• Nozzle diameter: 0.4mm (0.6, 0.8, 1.0mm optional)
• Extruder temperature: ≤350°C (recommended temperature ≤320℃)
• Platform temperature: ≤110°C
• Maximum flow: 40 mm³/s
• Maximum print speed: 500 mm/s (recommended print speed: 200-300 mm/s)
• Support software: MingDa OrcaSlicer, Prusa Slicer, etc
• Display: 7 inch HDMI touch screen
• Input voltage: 100/240AC 50/60Hz
• Nominal power: 800W
• Software: klipper
• Filament Compatibility:
• Common thread:
• PLA, TPU, PETG;
• Engineering thread:
• PA-CF/GF, PET-CF/GF, HtPA-CF/GF, ABS-GF25, ABS-CF20, PA-GF25/CF25;
• Support thread:
• S-Mulit, S-HtPA, PVA, etc
