MINI-PC Minis Forum MS-01-S1390 Intel Core i9-13900H barebone

Brand: Minis Forum
Product Code: Minis MS-01-S1390
Availability: Temporarily Out Of Stock
922.30€
Ex Tax: 762.23€

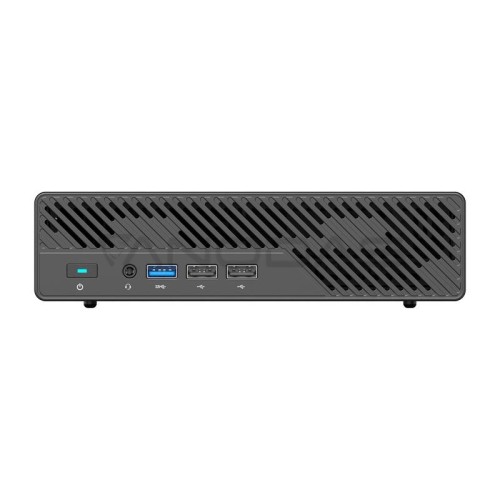

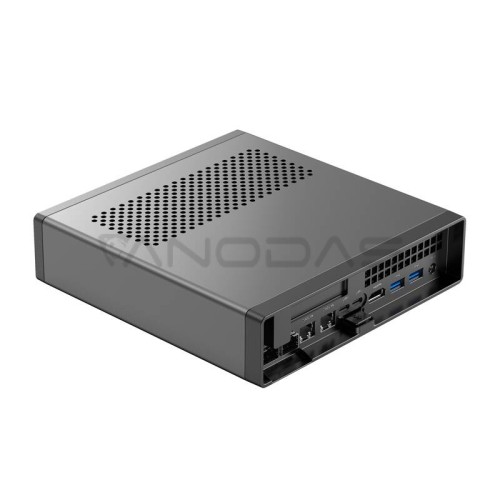

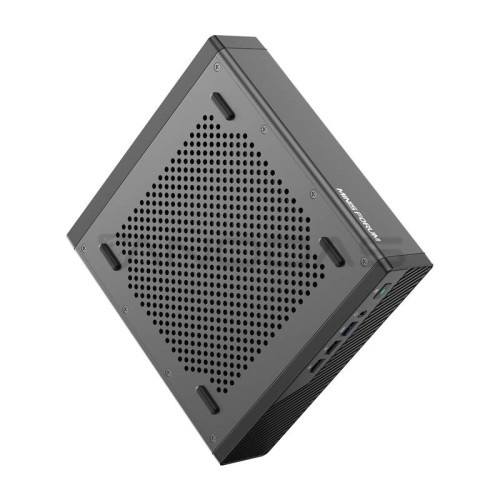

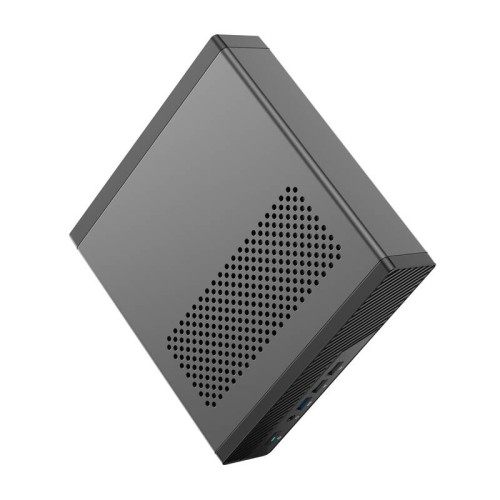

MINI-PC Minisforum MS-01-S1390 Intel Core i9-13900H

The MINISFORUM MS-01-S1390 is a compact but extremely powerful Mini-PC that will successfully perform both at work and at home. Equipped with an Intel Core i9-13900H processor from Raptor Lake-H, it offers impressive smoothness, making it an ideal choice for working with demanding applications, video editing, or managing extensive databases. Note: the device does not include RAM and SSD.

Performance at the highest level

The MINISFORUM MS-01-S1390 is equipped with a 14-core, 20-thread processor that reaches a maximum frequency of 5.4 GHz. Thanks to Intel 7 technology, you can count on the high performance needed for the most demanding tasks. Support for DDR5 RAM at up to 4800 MHz and expandable up to 64 GB allows for smooth multitasking.

Storage flexibility

The mini-PC allows you to mount 2 NVMe M.2 SSDs (2280/22110), with RAID0/RAID1 configuration and a maximum capacity of up to 4 TB. In addition, it supports U.2 drives. Such a solution not only guarantees lightning fast read and write speeds, but also ensures data security.

Advanced connectivity options

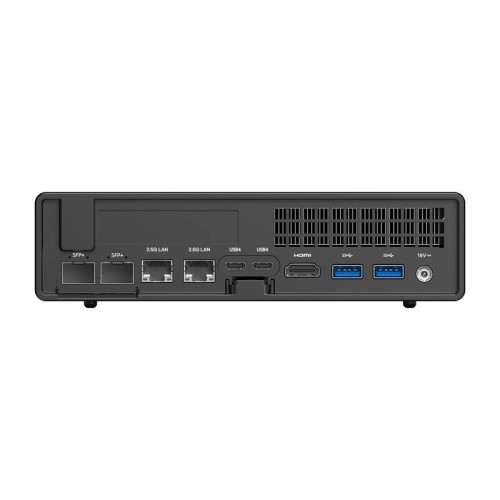

The MINISFORUM MS-01-S1390 offers a wide set of ports. There are two 10Gbps SFP+ ports, two 2.5Gbps RJ45 ports, and two Thunderbolt Ethernet-enabled USB4 ports with 20 Gbps connectivity each, for a total transfer speed of up to 65 Gbps. The mini-PC also features a full-size PCIe 4.0 port. As a result, you can transfer data at lightning speed and gain versatility in connecting peripherals.

Cooling and reliability

Thanks to the Cold Wave 2.0 cooling system with active RAM and SSD cooling, the computer maintains a stable temperature even during intensive work. This ensures not only high performance, but also longer component life.

ManufacturerMinisforum
ModelMS-01-S1390
ProcessorIntel Core i9-13900H
ArchitectureRaptor Lake-H
Number of cores14
Number of threads20
Base frequency/
Maximum frequency5.4 GHz
Processor technologyIntel 7
RAMDDR5, 0 GB
Frequency4800 MHz
Maximum capacity64 GB
StorageSSD Type: M.2 22110/2280 NVMe SSD x2
SSD capacity0 GB
Maximum SSD capacity4 TB
Graphics cardIntel Iris Xe Graphics
ConnectivityWi-Fi: M.2 2230 (support Wi-Fi 6E, BT 5.2)
PortsRJ45 (2.5G Intel KT226V B3) x1; RJ45 (2.5G with vPro, Intel I226-LM) x1; USB 2.0 (with SFP+ connector) x2; USB Type A (USB 3.2 10 Gbps) x2; SFP+ (PCIe 4.0 x4) x2; USB Type A (USB 3.2 10 Gbps) x2; USB 2.0 x2; Audio jack (3.5 mm combo jack) x1; Power button (with LED)
Operating systemNone
Cooling systemCold Wave 2.0 (liquid metal with active RAM and SSD cooling)
MountingOn the desk
Power supply19V / 9.47A
