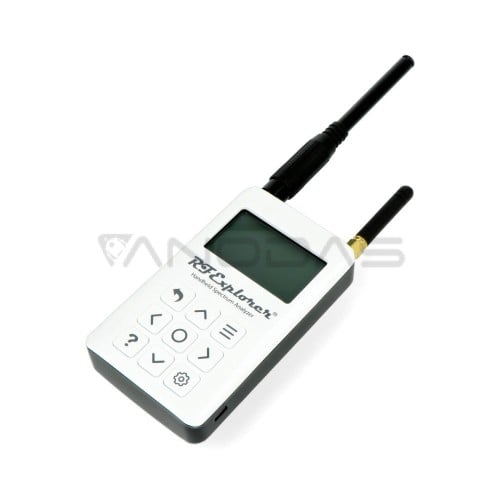

Mobile spectrum analyzer RF Explorer ISM Combo Plus, Slim

A small, powerful spectrum analyzer operating in the 50 kHz band and from 2 .34 GHz to 2.55 GHz, enabling scanning of the popular 2.4 GHz frequency. The Slim version has robust housing, a USB connector, and a larger battery. It has two connectors: left and right. The left allows for frequency analysis from 50 kHz to 960 kHz for LF, MF, HF, VHF, and UHF. The right connector allows analysis from 2.35 GHz to 2.55 GHz. A cover is included to store and carry the device safely.

Main features:

• Built-in LNA amplifier
• Supports low frequencies from 50 kHz to 960 kHz for LF, MF, HF, VHF, and UHF
• High frequencies from 2.35 GHz to 2.55 GHz are supported
• HELP and SET buttons for the user interface
• Excellent performance to diagnose and generate 2.4 GHz signals
• The wideband range for all popular bands below 1 GHz, including FM, TV and DTV, ISM, RFID, GSM, etc
• Ideal for HAM bands from 160 m to 33 cm
• Small size and weight
• Robust, metal casing
• Built-in high-capacity lithium battery allows for more than 20 hours of continuous operation, charged via USB
• Works with Windows / Linux / Mac OS, open-source software with API libraries


Specifikacijos:

• The frequency band:
• left-hand connector: 0.05 MHz to 960 MHz
• right-hand connector: 2350 MHz to 2550 MHz
• The frequency range:
• left-hand connector: 0.1 MHz to 960 MHz
• right-hand connector: 2 MHz to 85 MHz
• Internal selectable 25 dB LNA gain via left-hand connector
• Internal selectable 30 dB attenuator via left-hand connector
• 2.4 GHz WiFi band analyzer

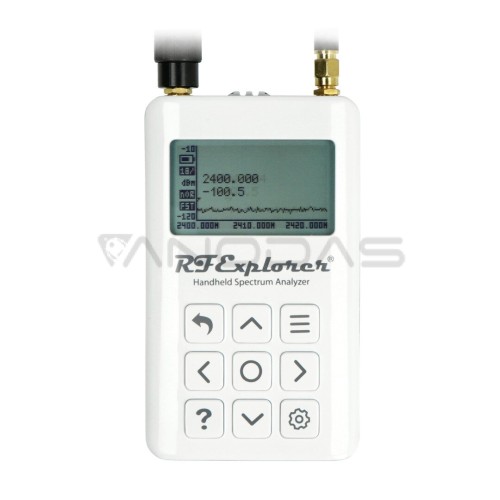

• Graphical LCD display 128x64px
• Works with: Windows, Linux, Mac OS
• Battery: Li-Ion 1800 mAh
• SMA connectors 50 Ohm
• Included is a dual-band, telescopic broadband antenna 144 / 433 MHz
• Included UHF articulated antenna from 400 MHz to 900 MHz
• 2.4 GHz antenna included
• Amplitude resolution: 0.5 dBm
• Dynamic range: -125 dBm to 10 dBm
• Maximum input power: +30 dBm
• Average noise level (typical for LNA): -125 dBm
• Frequency stability and accuracy (typical): +/- 10 dBm
• Amplitude stability and accuracy (typical): +/- 2 dBm
• Frequency resolution: 2 kHz
• Band resolution (RBW): automatic from 2.6 kHz to 600 kHz

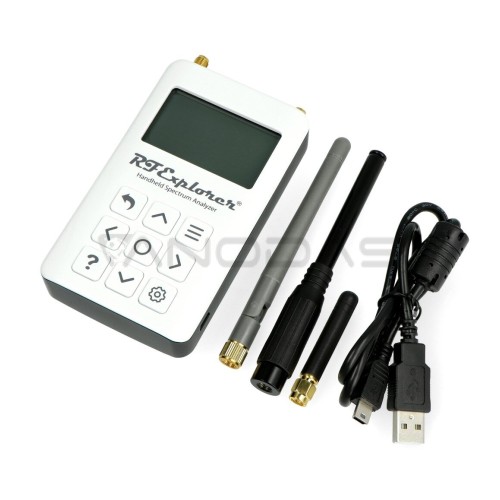

Set includes:

• 1x spectrum analyzer
• 1x USB cable - miniUSB
• 1x 144 / 430 MHz dual-band telescopic antenna
• 1x UHF antenna from 400 MHz to 900 MHz
• 1x 2.4 GHz antenna

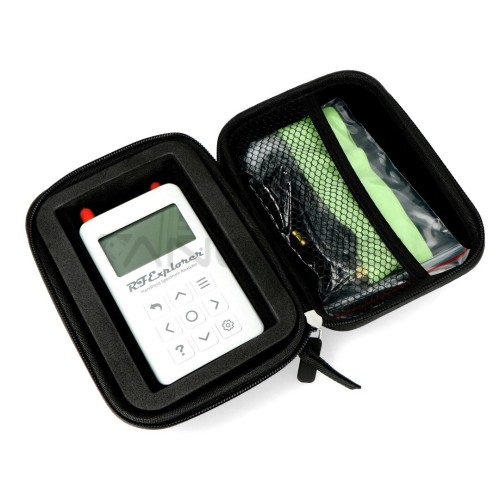

• 1x cover
