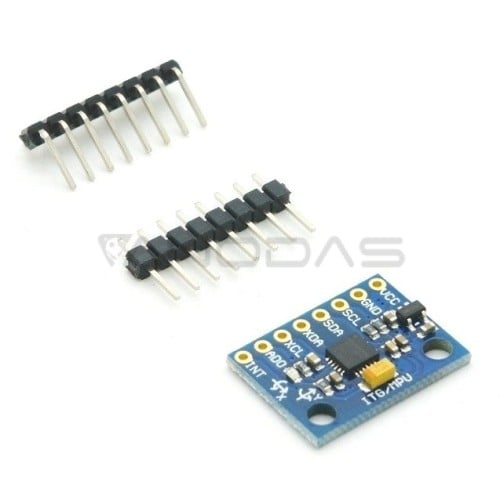

MPU6050 Three-axis gyroscope and accelerometer module

Product Code: AN0044
Availability: Vilnius Store In Stock
Kaunas Store Out of Stock
Central Warehouse In Stock

4.80€
Ex Tax: 3.97€

Qty

Add to Wish List

Description Product Delivery

3-axis gyroscope, acceleration sensor (accelerometer).

A system that responds to movement in three dimensions.

This module is mostly used to stabilize drones and RC planes

Features:

Three-axis acceleration sensor GY-521 in ±3G range
It works from 3.3V to 5.0V voltage.
It is characterized by small panel size and low power consumption. 350uA
Digital output signal on the I2C bus
The MPU system includes a hardware DMP (Digital Motion Processor) unit that allows data to be converted to position relative to the Earth.
It can easily be used to detect changes and movements of objects (eg stabilizers in RC models).
The sensor can be connected to any development kit such as Arduino or Raspberry Pi mini computer.
Pins are 2.45mm gold pin connectors (for soldering)

Specifications:

The module is equipped with an MPU-6050 chip
Sensitivity: +/-2g, +/-4g, +/-8g, +/-16g
Gyroscope operating ranges: 250°/s, 500°/s, 1000°/s, 2500°/s
Supply voltage: 3-5V
Current consumption: 350μA
I2C digital interface
Works in the temperature range from -40*C to +85*C
Three axes: X, Y, Z
Dimensions: 20x16mm
2.54mm raster connector with pins

Tags: mpu6050, three-axis, gyroscope, and, accelerometer, module, accelerometers, gyroscopes, magnetometers
