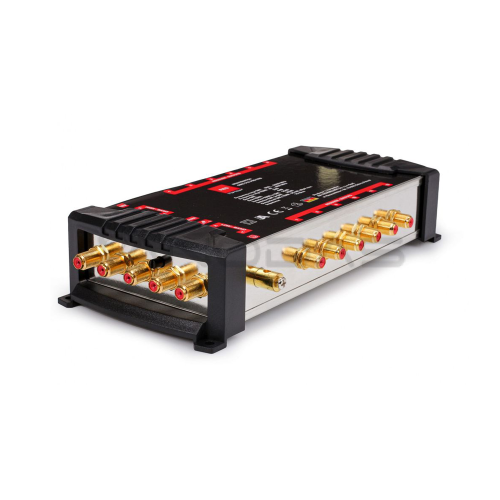

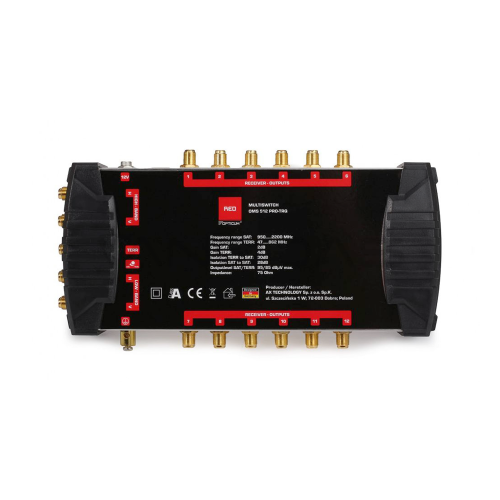

Multiswitch OPTICUM OMS 5/12 PRO TRQ PLATINUM
Multiswitch OPTICUM OMS 5/12 PRO TRQ PLATINIUM
The multiswitch is designed for the antenna installation of the DVB-S2 satellite and DVB-T2 terrestrial television system. Gold-plated sockets significantly reduce signal losses at the antenna cable connection, and there is no oxidation. The multiswitch automatically recognizes the type of signal that will be transmitted to the tuners. The installation should include connecting the multiswitch to a satellite antenna with a diameter of no less than 0.8 m and a Quattro or Quad converter, as well as a terrestrial television antenna. The separation of the satellite and terrestrial signals coming out of the multiswitch is carried out using end subscriber sockets. The multiswitch is powered by an external power supply, which eliminates the phenomenon of increased operating temperature, which is a common cause of damage to the device.
Connection:
one Quattro or QUAD converter
one DVB-T terrestrial antenna
12 terrestrial and/or satellite TV receivers
Technical data:
SAT Frequency Range: 950-2200 MHz
TER Frequency Range: 47-862 MHz
SAT Gain (950-2150 MHz): 2 dB
TER Gain (47-862 MHz): 4 dB
SAT to TER Separation: 30 dB
TER to SAT Separation: 28 dB
H/V polarization separation: 25 dB
Maximum SAT output level: 95 dBuV
Maximum output level TER : 85 dBuV
Input/output impedance: 75 Ohm
Polarity/Band Switching : 13V/18V 13V/22kHz-18V/22kHz
Mains power supply: 230V AC 50Hz
Operating temperature: 0...+55 oC
Dimensions: 255 x 130 x 54 mm (real dimensions)
The set includes:
-Multiswitch
- F connector screw wrench

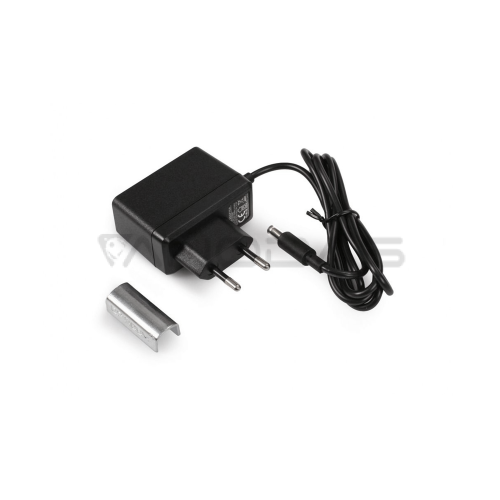

- AC adapter
- Original packaging
The multiswitch is designed for the antenna installation of the DVB-S2 satellite and DVB-T2 terrestrial television system. Gold-plated sockets significantly reduce signal losses at the antenna cable connection, and there is no oxidation. The multiswitch automatically recognizes the type of signal that will be transmitted to the tuners. The installation should include connecting the multiswitch to a satellite antenna with a diameter of no less than 0.8 m and a Quattro or Quad converter, as well as a terrestrial television antenna. The separation of the satellite and terrestrial signals coming out of the multiswitch is carried out using end subscriber sockets. The multiswitch is powered by an external power supply, which eliminates the phenomenon of increased operating temperature, which is a common cause of damage to the device.
Connection:
one Quattro or QUAD converter
one DVB-T terrestrial antenna
12 terrestrial and/or satellite TV receivers
Technical data:
SAT Frequency Range: 950-2200 MHz
TER Frequency Range: 47-862 MHz
SAT Gain (950-2150 MHz): 2 dB
TER Gain (47-862 MHz): 4 dB
SAT to TER Separation: 30 dB
TER to SAT Separation: 28 dB
H/V polarization separation: 25 dB
Maximum SAT output level: 95 dBuV
Maximum output level TER : 85 dBuV
Input/output impedance: 75 Ohm
Polarity/Band Switching : 13V/18V 13V/22kHz-18V/22kHz
Mains power supply: 230V AC 50Hz
Operating temperature: 0...+55 oC
Dimensions: 255 x 130 x 54 mm (real dimensions)
The set includes:
-Multiswitch
- F connector screw wrench
- AC adapter
- Original packaging
