MXChip Microsoft Azure IoT developer kit, DFRobot DFR0512

Brand: Dfrobot
Product Code: AN-15093
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
53.90€
Ex Tax: 44.55€

Qty

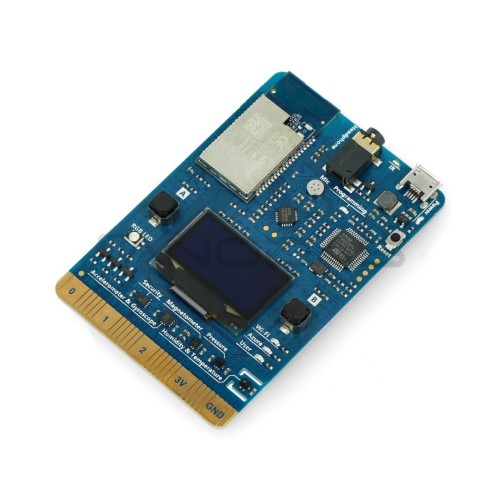

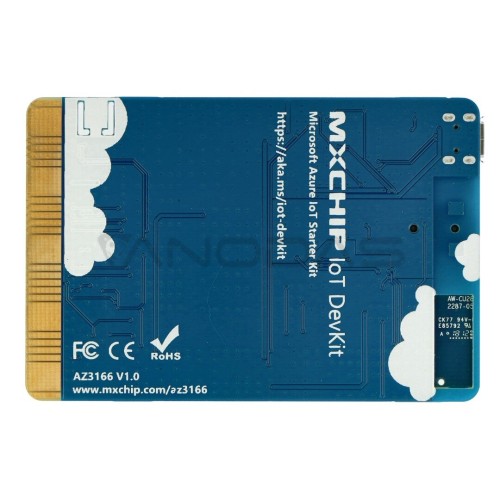

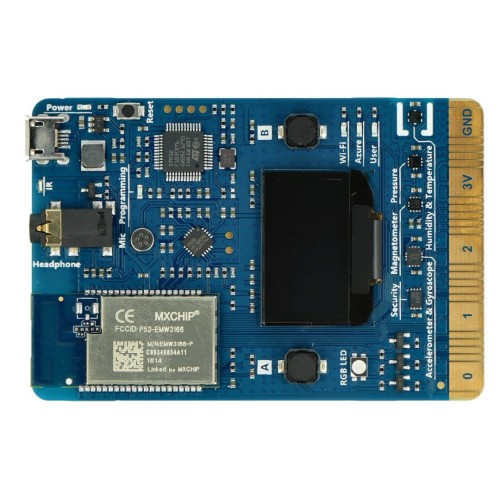

IoT development board based on STM32F412 ARM Cortex M4F. It is equipped with a WiFi module, OLED display, audio codec, motion, pressure, temperature, humidity, and magnetometer sensors. The board works with Microsoft Azure cloud. Programmable via USB, compatible with Arduino.

Main features:

  • The audio codec that works with Arduino
  • Guides to creating your first application in the cloud
  • Powerful STM32F412 Cortex-M microcontroller with 100 MHz clock with 1024 kB Flash and 256 kB SRAM and Cypress WiFi chip
  • Built-in motion, temperature, humidity, pressure, and magnetometer sensors
  • Built-in encryption system, for greater security

Specification:

  • Microcontroller: STM32F412 ARM Cortex M4F
  • WiFi module: EMW3166, 256 kB SRAM, 1 MB + 2 MB flash
  • Programming: USB (Arduino compatible)
  • Emulator: DAP Link
  • The tension of work: 3.3 V or via USB
  • Supports 3.3 V max. 1.5 A
  • Audio codec: microphone and speaker jack
  • Display: OLED 128 x 64 px
  • Buttons: 2 - programmable
  • Diodes:
    • 1x RGB LED
    • 3x Status LED - WiFi, Azure service, testing
  • Encryption system
  • Infrared emitter
  • Sensors:
    • movement
    • temperature
    • humidity
    • pressure
    • magnetometer
  • Connector in the form of pads
  • Dimensions: 77 x 52 x 7 mm

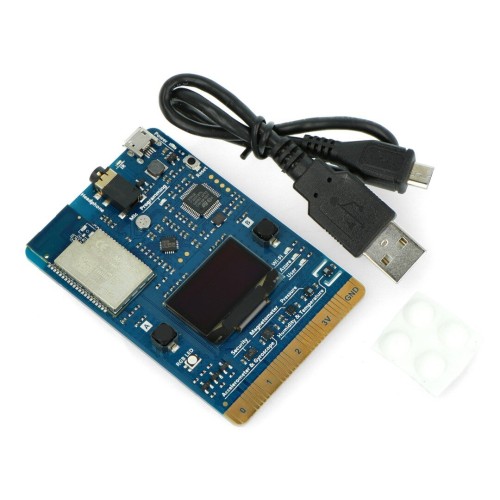

Set includes:

  • Rubber anti-slip feet
  • MicroUSB cable

Useful links:
The website of the manufacturer
Manual
