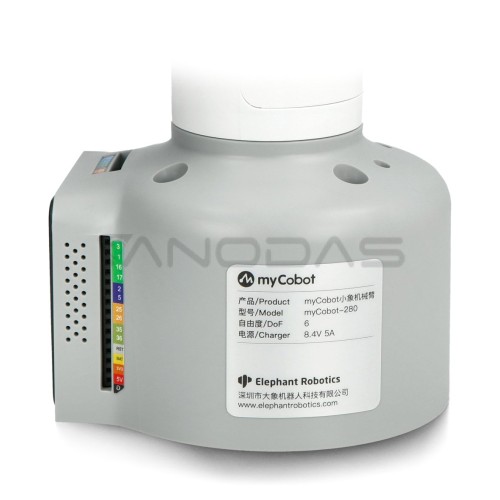

MyCobot M5 - 6-axis arm robot - M5Stack version

Brand: Elephant Robotics
Product Code: AN-20223
Availability: 3-5 business days
Planned delivery date after ordering: 2022-12-13
973.90€
Ex Tax: 804.88€

Qty

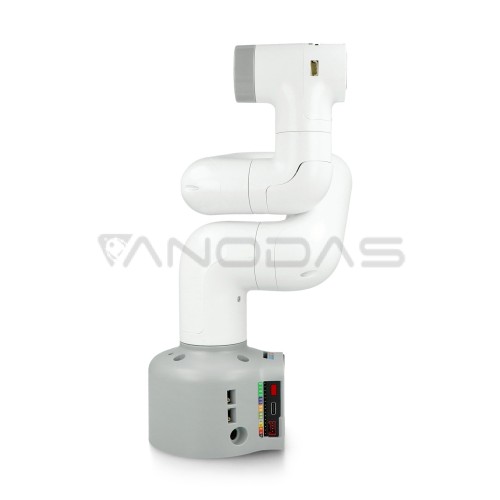

MyCobot M5 is the world's smallest and lightest six-axis arm robot, which is a collaboration between two companies - Elephant Robotics and M5Stack. It consists of two main modules - M5Stack Core Basic and M5Stack Atom. Built-in servos are responsible for movement in different axes. It provides great fun and stimulates the imagination and allows to implement many interesting projects. It can be used, among others, as a kitchen assistant, workshop assistant or teaching assistant.

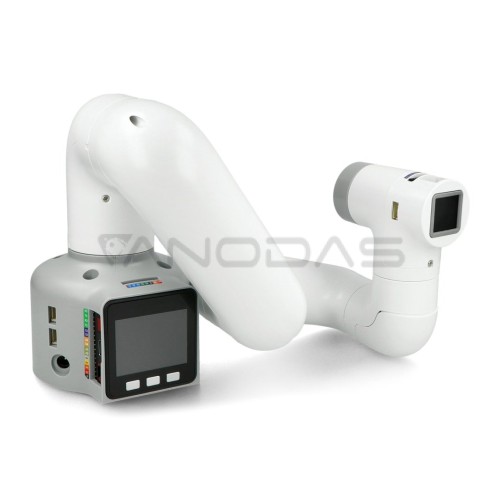

MyCobot is designed as an integrated module. It has a lightweight, compact design and weighs just 850 g. The body structure is compact and has a designer look. The small number of mounted parts means that the body can be quickly disassembled and assembled once again - this time in a completely different way. Built-in servos allow the robot to rotate in up to 6 axes.

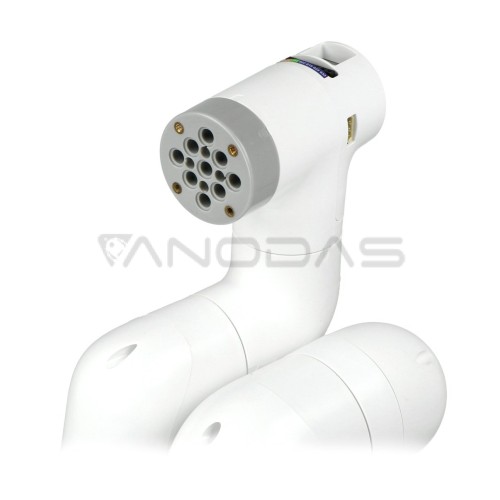

At the base and at the top of MyCobot M5 there are Lego Connectors. Thanks to them it is possible to connect a wide range of miniature devices. The possibilities of the robot are then practically limited only by our imagination. What is more, the MyCobot M5 robot was made of environmentally friendly materials.

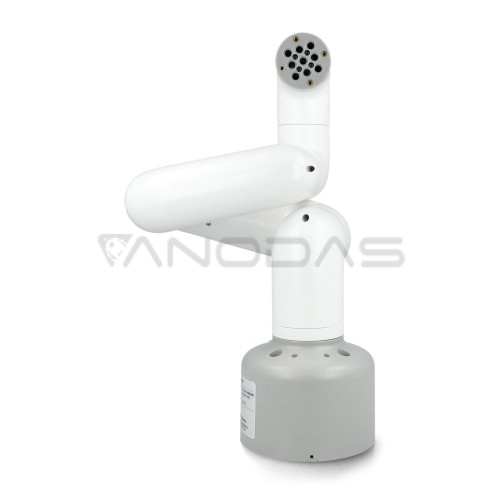

MyCobot M5 can move in 6 axes thanks to the built-in servos at the end of the joints. The movement range of J1 is -160° to +160°. The arm span is 350 mm and the working radius is 280 mm.

Specification:
  • Basic Information:
    • Robot type: Arm
    • Number of degrees of freedom: 6 axes of motion
    • Maximum load: 250 g
    • Arm span: 350 mm
    • Working radius: 280 mm
    • Repeatability: ± 0.5 mm
    • Power input: 8 V / 5 A
    • Communication: USB type C connector
    • Operating temperature: From -5 °C to 45 °C (recommended)
    • Color: White
    • Material: Industrial nylon
    • Weight: 850 g

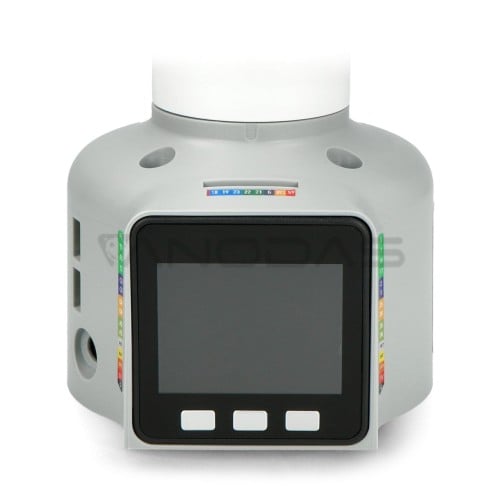

  • M5Stack Core Basic:
    • Controller: ESP32-D0WDQ6: Dual-core 240 MHz, 600 DMIPS, 520 KB SRAM, WiFi, Bluetooth dual-band
    • Flash memory: 16 MB
    • Power Input: 5 V / 500 mA
    • Connections: USB type C x1, Grove (I2C+I/O+UART) x1
    • Core Bottom Connectors: G1, G2, G3, G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36
    • Display: IPS screen: 2-inch color TFT LCD, 320x240, ILI9342C
    • Speaker: 1W-0928
    • Buttons: Custom Button x3
    • Rechargeable battery: 110 mhA / 3.7 V
    • Antenna: 3D 2.4 G antenna
    • Operating temperature: 0 °C to 40 °C

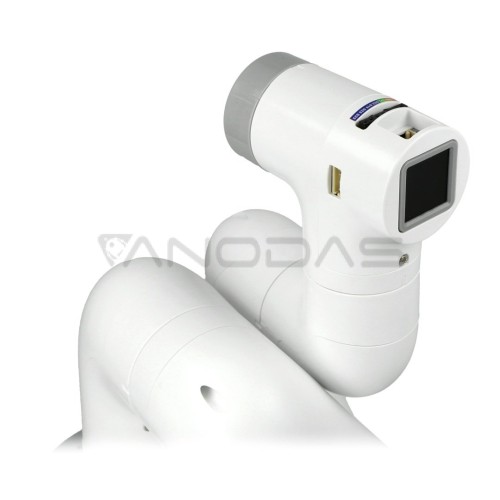

  • M5Stack Atom:
    • Controller: ESP32: Dual-core 240 MHz, 600 DMIPS, 520 KB SRAM, WiFi, Bluetooth dual-band
    • Flash memory: 4 MB
    • Power Input: 5 V / 500 mA
    • Connections: USB type C x1, Grove (I2C+I/O+UART) x1

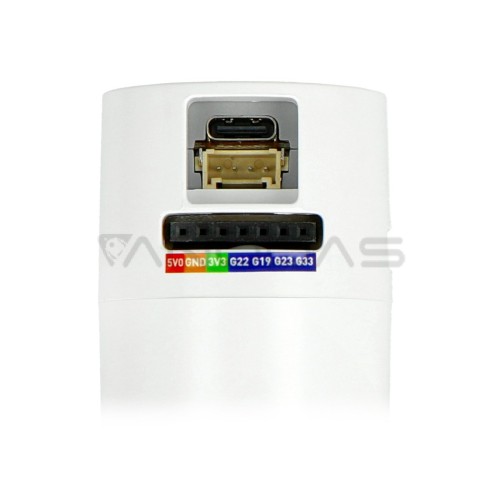

    • Lower connectors: G19, G21, G22, G23, G25, G33
    • RGB LED: WS2812C 2020 x25
    • MEMS: MPU6886
    • IR: Infrared transmission
    • Button: Custom x1
    • Antenna: 3D 2.4 G antenna
    • Working temperature: 0 °C to 40 °C

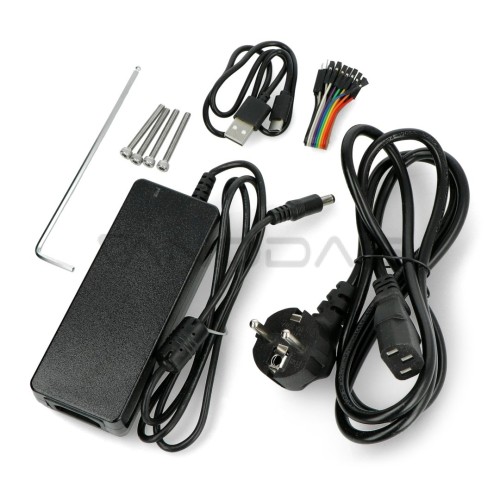

Set includes:
  • myCobot M5 robot with M5Stack Core Basic and M5Stack Atom development modules
  • Power supply with DC connector
  • USB type C cable
  • Connection cables
  • Screws x4
  • Allen wrench
