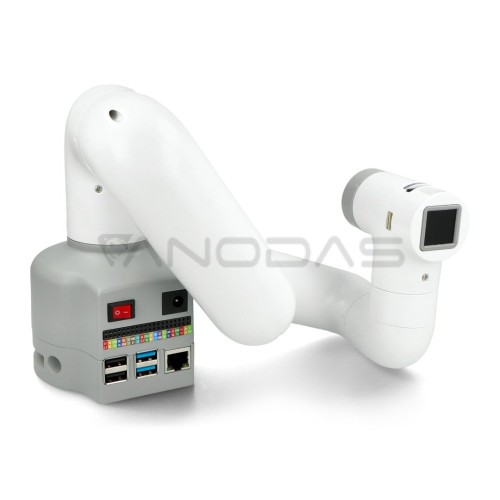

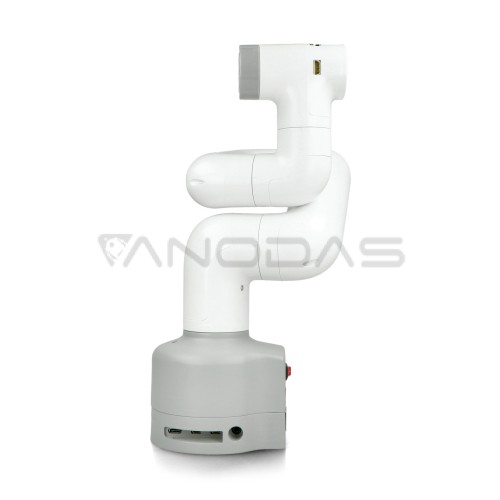

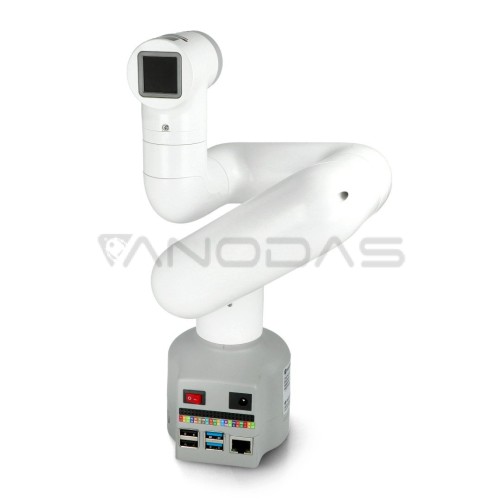

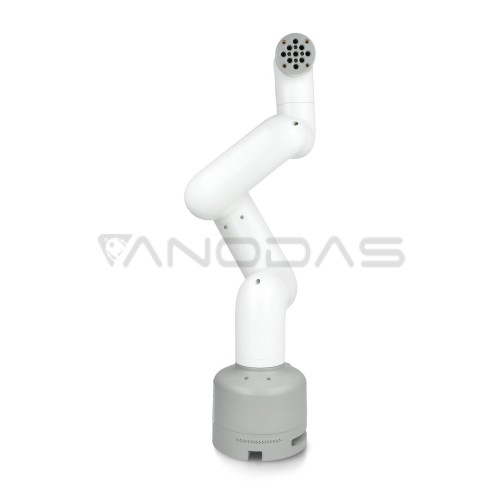

MyCobot Pi - 6-axis arm robot - Raspberry Pi version

MyCobot Pi is a multifunctional intelligent robotic arm that has been designed and carefully developed by Elephant Robotics. It is part of the myCobot series of products. It bases its operation on Raspberry Pi microprocessor and M5Stack Atom development module. The myCobot Pi robot is one of Elephant Robotics' core robots, which is widely used during education about artificial intelligence.
The weight of myCobot Pi is only 850 g, its payload is 250 g and its working range (arm span) is 280 mm. It is compact, yet extremely powerful and efficient. It has rich software and hardware interaction methods and diverse, compatible extension interfaces. It supports cross-platform secondary development and effectively helps users in application development. By using Raspberry Pi 4B, myCobot Pi robot actually has unlimited potential. Raspberry Pi 4B has a 4-core processor clocked at 1.5 GHz, which runs on Debian / Ubuntu platform. It supports up to 4 USB inputs, 2 HDMI inputs and a GPIO interface.

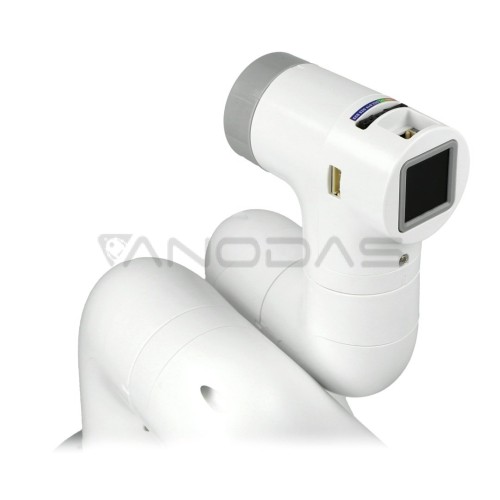

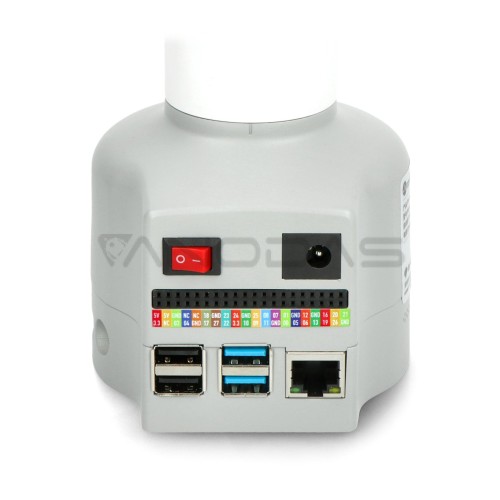

The robot is equipped with 6 super powerful servos with fast response, low inertia and extremely smooth rotation. This makes it possible to achieve truly astonishing results. In addition, the robot is built with two popular modules - Raspberry Pi 4B and M5Stack Atom development module (with RGB LEDs). With the help of a built-in screen and LEDs, the current operation and the scenario performed by the robot are presented.

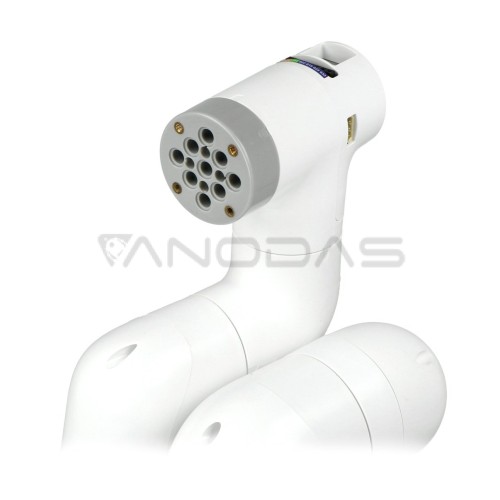

MyCobot Pi can move in 6 axes thanks to the built-in servos at the end of the joints. J1's range of motion is -160° to +160°. The arm span is 350 mm and the working radius is 280 mm.

Specification:

• Basic Information:

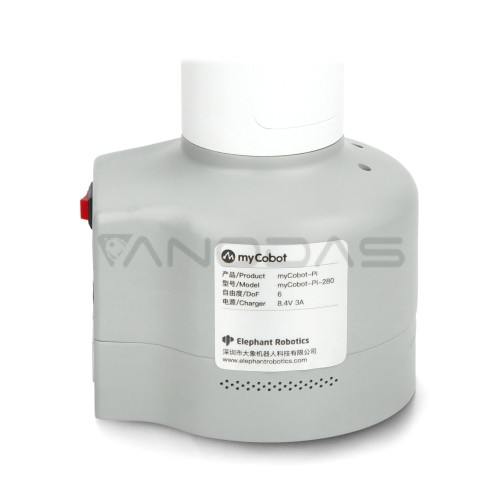

• Robot type: Arm
• Number of degrees of freedom: 6 axes of motion
• Maximum load: 250 g
• Arm span: 350 mm
• Working radius: 280 mm
• Repeatability: ± 0.5 mm
• Power input: 8 V / 5 A
• Communication: USB type C connector
• Operating temperature: From -5 °C to 45 °C (recommended)
• Color: White
• Material: Industrial nylon
• Weight: 850 g
• M5Stack Core Basic:
• Raspberry Pi 4B:
• Controller: Broadcom BCM2711
• Processor: Quad-core 1.5 GHz
• Bluetooth: Yes
• USB Connectors: USB 3.0 x2, USB 2.0 x2
• Display: None
• HDMI port: microHDMI x2
• I/O Ports: 40
• Standalone operation: Yes
• Development platform: Debian / Ubuntu
• ROS / Python: Built-in
• Additional buttons: None
• M5Stack Atom:
• Controller: ESP32: Dual-core 240 MHz, 600 DMIPS, 520 KB SRAM, WiFi, Bluetooth dual-band
• Flash memory: 4 MB
• Power Input: 5 V / 500 mA

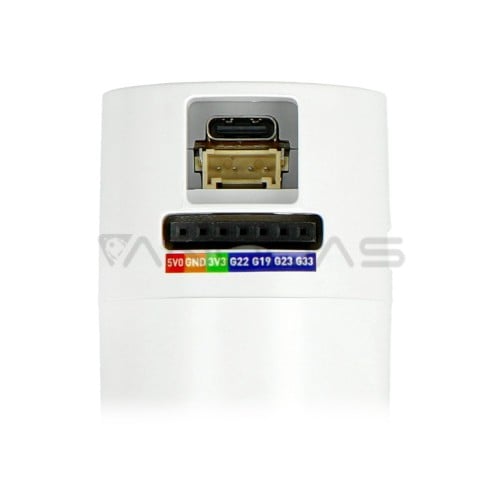

• Connections: USB type C x1, Grove (I2C+I/O+UART) x1
• Lower connectors: G19, G21, G22, G23, G25, G33
• RGB LED: WS2812C 2020 x25
• MEMS: MPU6886
• IR: Infrared transmission
• Button: Custom x1
• Antenna: 3D 2.4 G antenna
• Working temperature: 0 °C to 40 °C

Set includes:

• myCobot Pi robot with Raspberry Pi 4B and M5Stack Atom modules

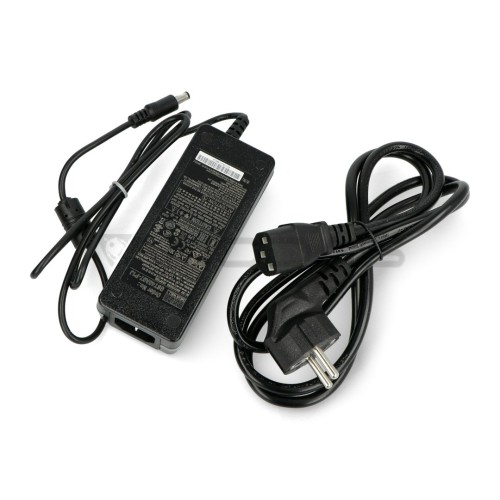

• Power supply with DC connector
