NeoKey FeatherWing - for switches - NeoPixels 1x2 - I2C - STEMMA QT/Qwiic - Adafruit 4979

Brand: Adafruit
Product Code: AN-22216
Availability: 4-6 business days
Planned delivery date after ordering: 2025-08-15

13.00€
Ex Tax: 10.74€

Qty

Add to Wish List

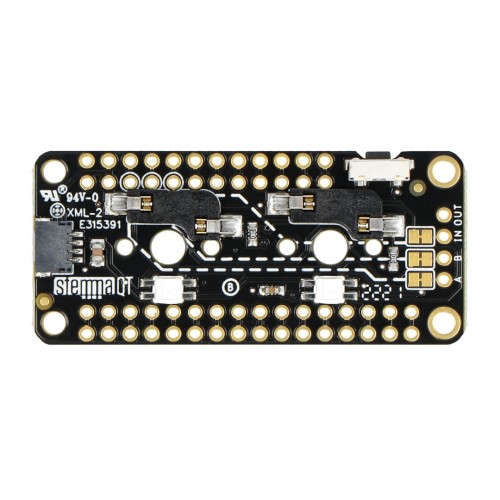

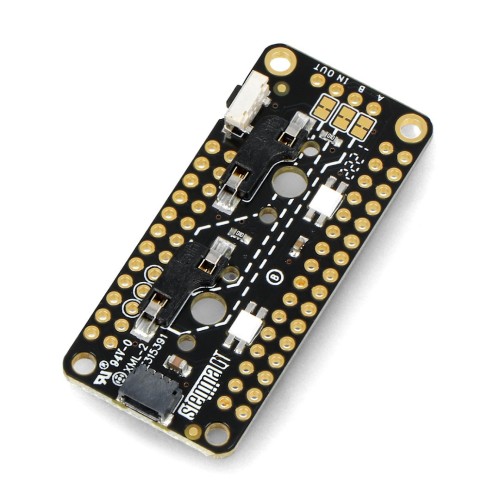

A 50 x 23.2 x 5.2 mm board by Adafruit. NeoKey FeatherWing has two outputs in the form of a Kailh socket that allows you to plug in any switch compatible with Cherry MX. In addition, in each slot, there is one NeoPixels diode, which illuminates the buttons in any color you choose. The board also has a STEMMA QT / Qwiic connector and leads in the form of solder pads. NeoKey from Adafruit uses the I2C bus to communicate with the controller module (e.g. with Feather, Arduino or Raspberry Pi). The set consists of a module with two sockets and goldpin strips - switches, keycaps and a controller module must be purchased separately.

Specification:

Compatible with e.g. with Feather, Arduino and Raspberry Pi
Maximum number of supported buttons: 2
Built-in backlight: yes
Backlight source: LEDs
LED type: NeoPixels
Lighting color: individually programmable
Button socket type: Kailh standard
Soldering Required: No
Supply voltage: 3 V to 5 V DC
Communication interface: I2C bus
Leads: STEMMA QT / 2.54 mm solder pads
Dimensions: 50 x 23.2 x 5.2 mm

Set includes:

NeoKey FeatherWing - module with two sockets of mechanical keys - NeoPixels 1x2 - I2C - STEMMA QT / Qwiic - 1 piece
Goldpin strip 1x16 - raster 2.54 mm - 2 pieces
