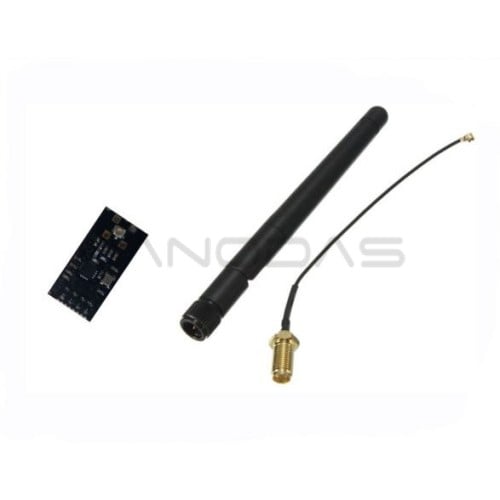

NRF24L01+PA+LNA Wireless Module - 1100m

Product Code: AN0214-29
EAN: 4779044514434
Availability: Vilnius Store In Stock
Kaunas Store In Stock
7.50€
Ex Tax: 6.20€

Qty

The nRF24L01 + is a radio communication module for the 2.4 GHz ISM band. ISM (Industrial, Scientific, and Medical) are radio frequencies for industrial, scientific, and medical use, so you will often find them in projects from these areas. They are open access, so you don’t need to buy a license for them.
The transmitter / receiver itself also has many built-in additional features that make it suitable for both simple and advanced projects: signal distance of up to 1100 m due to built-in power and low noise amplifiers, making it particularly suitable for long distance communication, while other components automatically perform the required signal filtering.

Technical specs. and features:
●    Operates in the 2400MHz ~ 2524MHz ISM radio wave range
●    Transmission power: up to + 20dBm, 50Ω
●    Antenna sensitivity: -95dBm
●    Receive 6 channels simultaneously
●    Transmission distance: up to 1100m
●    Up to 125 channels
●    Up to 2Mb upload speed
●    Automatic signal transmission and correction
●    FM modulation: GMSK
●    Power (PA) and low noise (LNA) amplifiers are installed
●    Operating current: 45-115mA
●    Logic signal voltage: 2.7-3.6V, also supports 5V, making it suitable for Arduino
●    Control interface: SPI and others, making it perfect for Arduino
●    Operating temperature: -45 - 85 ° C
●    Dimensions: only 45.54mm x 16.46mm
●    The set includes an FM antenna
External links and applications:

●    Radio player
●    (Industrial, Scientific, and Medical radio projects
●    Using the module with Arduino
