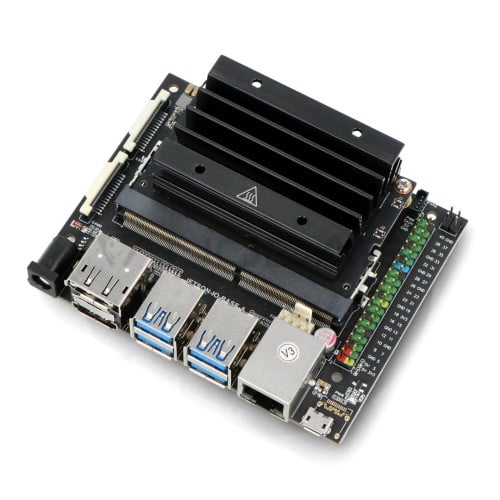

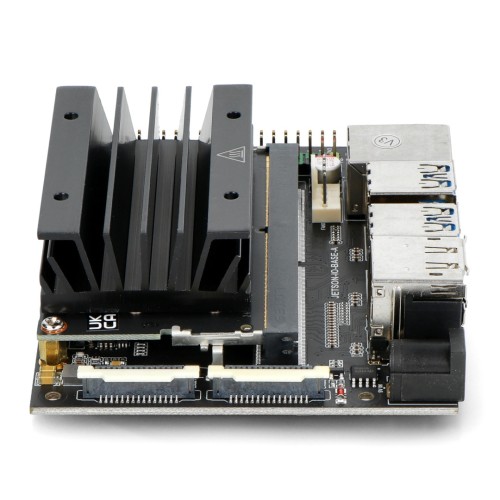

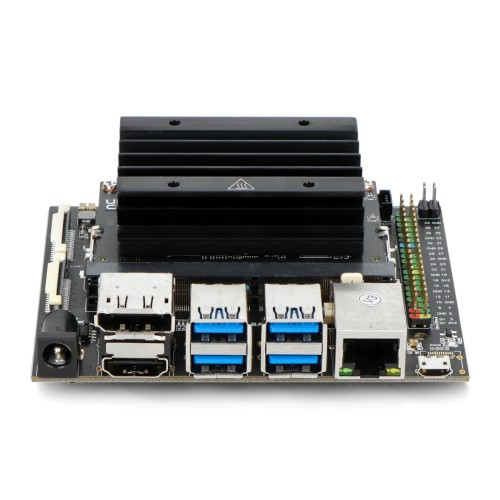

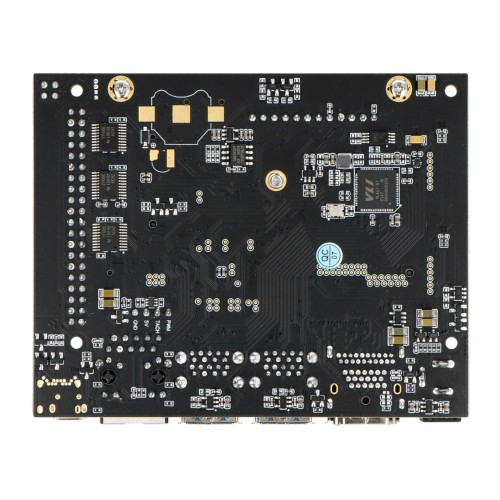

Nvidia Jetson Nano Dev Kit - ARM Cortex A57 4x 1.43 GHz Nvidia Maxwell + 4GB RAM + 16GB eMMC - Waveshare 21802

Brand: Nvidia
Product Code: AN-21868
Availability: Temporarily Out Of Stock

248.10€
Ex Tax: 205.04€

Qty

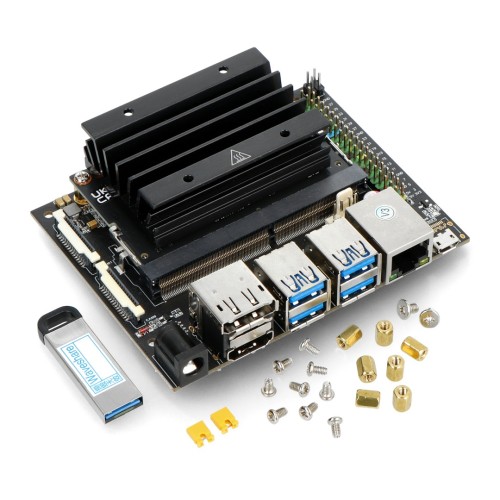

The Nvidia Jetson Nano Dev Kit is an alternative solution from Waveshare for the original Jetson Nano B01. The board features an Nvidia Jetson Nano module based on a quad-core ARM Cortex A57 clocked at 1.43 GHz and an Nvidia Maxwell graphics processor with 128 CUDA cores. The Jetson Nano has 4 GB of DDR4 RAM, and the Dev Kit board expands the internal memory by 16 GB via an eMMC module. The board features a Gigabit Ethernet port, 4x USB 3.0, HDMI, DisplayPort, GPIO, I2C, I2S, SPI, UART, 2x camera connectors, and a microSD card slot. The kit also includes a 32 GB USB 3.2 storage device.

Connectivity Nvidia Jetson Nano:

The mini computer is equipped with connectivity interfaces that can also be found on standard personal computers or Raspberry Pi:

Four USB 3.0 ports – allow you to connect external devices such as a mouse, keyboard, or WiFi network card. It is also possible to increase the number of available USB ports using USB hubs.
Gigabit Ethernet port - a socket that allows you to connect the mini computer to the Internet via an RJ45 patch cable, the module also supports PoE power supply.
GPIO - input / output connectors to which we can connect, among others: LEDs, buttons, motor controllers. They also have pins that support the following interfaces: I2C, I2S, SPI and UART.
microSD slot - a slot for memory media.
Two camera connectors - allow you to connect cameras compatible with the Raspberry Pi camera connector.

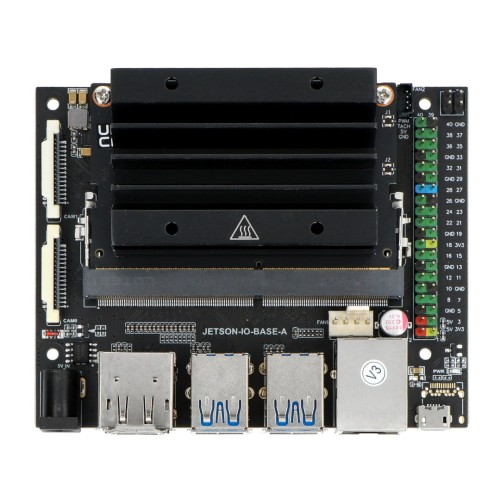

Nvidia Jetson Nano Dev Kit board component layout:

SODIMM slot for connecting Nvidia Jetson Nano module
MicroSD memory card slot
M.2 key E connector
1.25mm fan connector
PoE pins (PoE module not included)
GPIO pins 40 pins
2.54mm fan connector
MicroUSB port for powering the board with 5 V or transferring data
Gigabit Ethernet 10/100/1000 Base-T port
4x USB 3.0 ports
HDMI port
DisplayPort connector
DC 5.5/2.1mm power jack
2x MIPI CSI camera connector

Specifications:

UC – CORE: Cortex A57
UC – RAM MEMORY: 4 GB
UC – NUMBER OF CORES: 4. Quad-core
UC – DIGITAL PINS: 40
UC – EXTERNAL MEMORY: eMMC 16GB
UC – Clock: 1.43 GHz
UC – ETHERNET: Yes
UC – USB INTERFACE: 4x USB
UC – MICROSD: Yes
UC – HDMI port: yes
UC – I2C INTERFACE: Yes
UC – UART INTERFACE: Yes
UC – POWER CONNECTOR: microUSB
UC – SPI INTERFACE: yes
UC – LCD INTERFACE: yes
UC – CAMERA INTERFACE: yes
UC – LINUX SYSTEM: yes
PACKAGE WIDTH: 11cm
PACKAGE HEIGHT: 16.5cm
PACKAGE DEPTH: 4cm
PACKAGE WEIGHT: 0.225kg

Tags: nvidia, jetson, nano, dev, kit, arm, cortex, a57, 1.43, ghz, maxwell, 4gb, ram, 16gb, emmc, waveshare, 21802, single, board, computers
