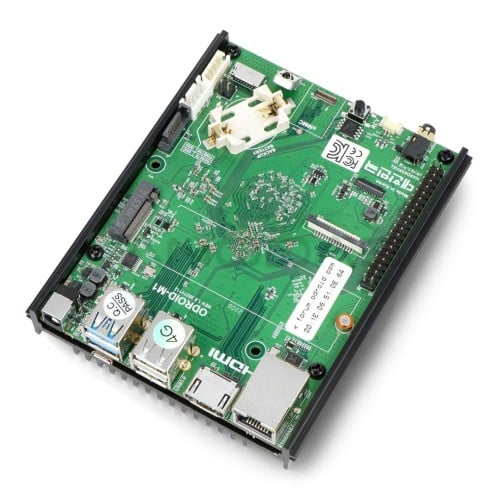

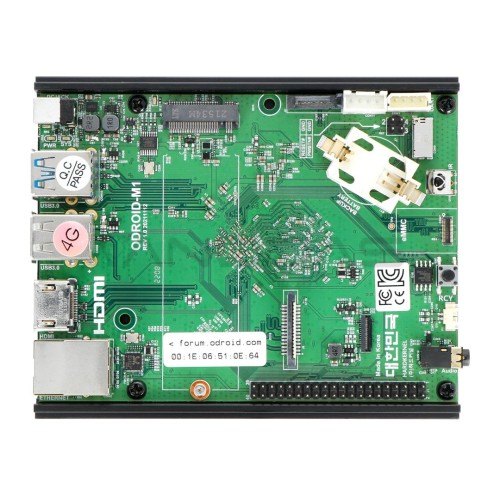

Odroid M1 - minicomputer with Rockchip RK3568B2 processor + 4GB RAM

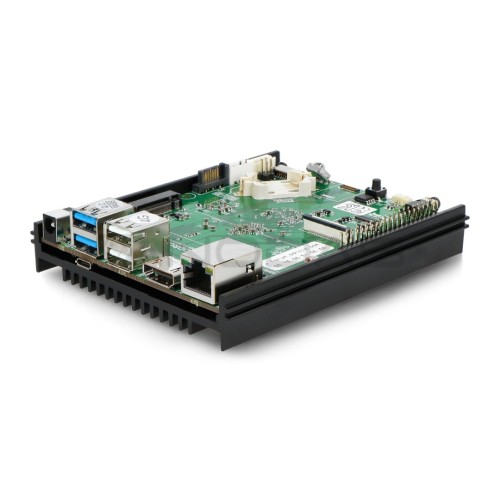

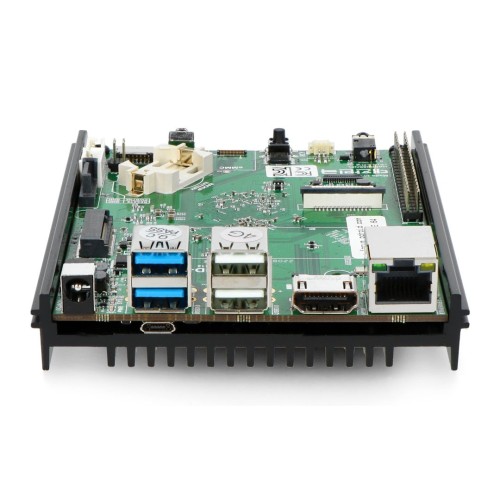

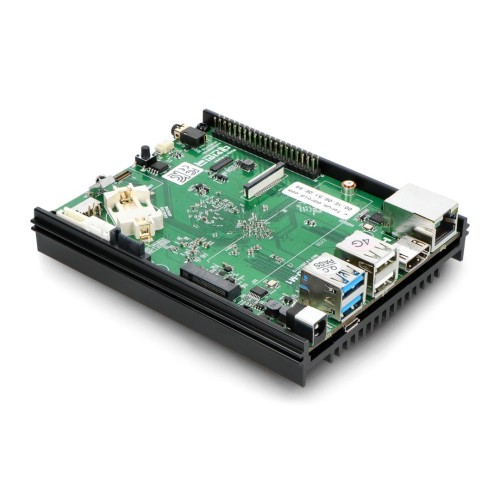

The Odroid M1 minicomputer is based on the energy-saving and efficient quad-core Rockchip RK3568B2 Cortex-A55 chip and the Mali-G52 graphics processor. The board is equipped with 4 GB of RAM and a connector for eMMC memory and microSD cards, Ethernet, HDMI and USB 3.0. An efficient heat sink is mounted on the bottom of the board, which helps to cool the entire system during operation.

The Petitboot program has been installed in the SPI flash memory of the Odroid M1 minicomputer, which helps to easily and quickly manage different versions of the operating system and supports booting the system from microSD, eMMC, NVMe, SATA and USB mass storage. In addition, since it is possible to install the operating system online via the network, the complicated procedure of downloading and flashing the operating system image has been greatly facilitated.

The Odroid M1 is equipped with a Neural Network Processing Unit (NPU) that provides up to 0.8 TOPS. Various TensorFlow Lite and ONNX models can be run on the Ubuntu Linux operating system.

Specification:

• Processor: Rockchip RK3568B2
• L1 instruction cache: 32 KB, 4-way association, 64 bytes of lines, shared by 1 processor
• L3 data cache: 512KB, 16-way association, 64 bytes line, shared by Quad-Core Cortex-A55 processor (1.992 GHz)
• ARMv8-A architecture with Neon and Crypto extensions
• Mali-G52 MP2 graphics processor with 4 execution engines (650 MHz)
• NPU:
• 0.8Tops / INT8, integrated high-performance AI RKNN NPU accelerator
• Supports Caffe / TensorFlow / TFLite / ONNX / PyTorch / Keras / Darknet switching
• Memory:
• 4 GB LPDDR4 with 32-bit bus
• Data transfer rate: 3120 MT/s to 1560 MHz
• Networking:
• 1 x eMMC slot
• 1 x Micro SD slot (DS / HS mode for UHS-I SDR104)
• 1 x NVME M.2 SSD (PCIe 3.0 x 2)
• 1 x SATA3.0
• Network:
• GbE LAN port (RJ45 10/100/1000 Mb/s)
• Realtek RTL8211F (Ethernet transceiver)
• Led
• Green LED: Flashing by data traffic on 100Mbps connection
• Amber LED: Flashing by data traffic on a 1000Mbps connection
• Video:
• HDMI 2.0 (up to 4K / 60 Hz with HDR, CEC, EDID)
• MIPI DSI (works with 800 x 1280 LCD)
• Audio:
• HDMI digital output
• 3.5 mm jack connector
• Mono speaker output
• External I/O ports:
• 2 x USB 3.0 ports (or 1 x USB 3.0 host + 1 x USB 2.0 OTG port)
• 2 x USB 2.0 port
• UART (Debugging)
• SATA
• MIPI-CSI camera interface
• MIPI-DSI LCD interface
• 40-pin GPIO connector
• Other functions:
• IR receiver
• RTC and backup battery holder
• LED diodes:
• Red (PWR) - Steady light after connecting the power supply
• Blue (ALIVE) - Flashes while the kernel is running
• Power supply:
• DC jack: 5.5 mm outer (-) diameter, 2.1 mm inner (+) diameter
• DC input: 7.5 V to 15.5 V (DC 12 V / 2 A power adapter recommended)
• Energy consumption:
• IDLE: 1.25 W
• CPU load: approximately 4.44 W
• Board dimensions: 90 x 122 x 16 mm
• Heatsink dimensions: 100 mm x 123 mm x 19 mm
• Weight: 253 g
