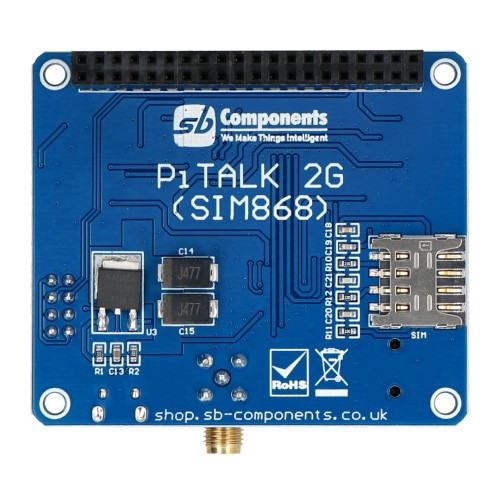

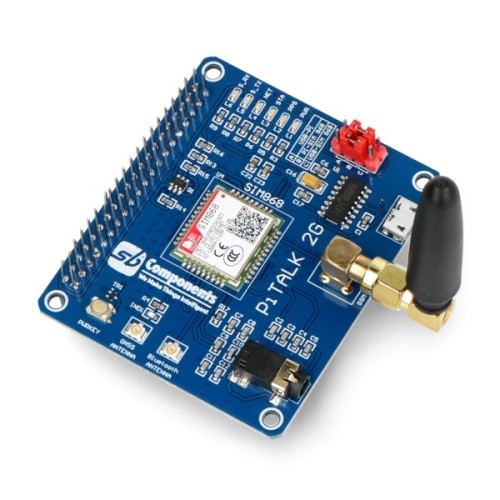

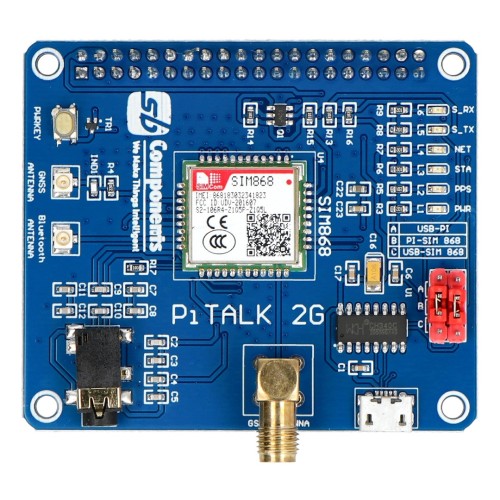

PiTalk 2G HAT - Wireless Communication Module - for Raspberry Pi - SB Components SKU25978

Brand: SB components
Product Code: AN-22961
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-29

56.60€
Ex Tax: 46.78€

Qty

Add to Wish List

Description Product Delivery

PiTalk 2G HAT is a module supporting GSM/GPRS + GNSS wireless communication based on the SIM868 chip. It works at 850/900/1800/1900 MHz frequencies. The maximum transmission speed for GPRS class 12 is 85.6 kbps. It was designed for IoT devices (Internet of Things) and applications requiring operation without an Ethernet or WiFi connection. Works with Raspberry Pi (models A, B and Zero) as a HAT shield. The built-in CH340 chip also allows it to work as a USB module.

Main features:

Works with the following frequencies: GSM 850 MHz, EGSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz
Supports GPRS coding schemes: CS-1/CS-2/CS-3/CS-4
GPRS multi-channel transmission classes: 12/10
GPRS mobile station: class B
Class 12 GPRS transmission speed: 85.6 kbps
Support for TCP/UDP/FTP/HTTP/POP3/SMTP and many other protocols
Low TTFF (Time-To-First-Fix) GNSS: 28s typical
Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
Many additional functionalities, such as SMS, MMS, DTFM, interference detection
Low energy consumption

Specification:

2G communication: GSM/GPRS + GNSS
Built-in chip: SIM868
Frequencies: GSM 850 MHz, EGSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz
GPRS coding schemes: CS-1/CS-2/CS-3/CS-4
Class 12 GPRS transmission speed: 85.6 kbps
40-pin connector compatible with Raspberry Pi
Micro SIM card connector
Power button
LEDs: Tx, Rx, power, working status, connection status, PPS
Bluetooth communication: U.FL antenna connector
Built-in GPS: U.FL antenna connector
GSM antenna connector: SMA
Jumper for selecting the UART connection
Built-in USB - UART converter: CH340
MicroUSB connector
3.5 mm audio jack: input/output
Dimensions: 65 x 56 mm

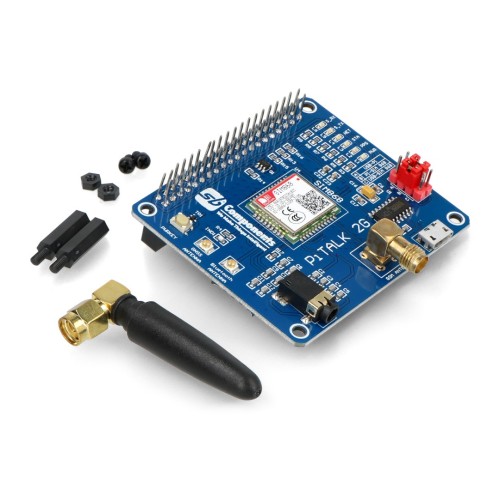

Set includes:

1x PiTalk 2G HAT - wireless communication module - shield for Raspberry Pi - SB Components 25978
1x GSM antenna

Tags: pitalk, hat, wireless, communication, module, for, raspberry, components, sku25978
