Power regulator module AC 230V 2000W - potentiometer on 20cm cable - maximum 2kW

Product Code: ABC-18404
Availability: 5-8 business days
Planuojama gavimo data po užsakymo: 2025-12-30

4.40€
Ex Tax: 3.64€

Qty

Add to Wish List

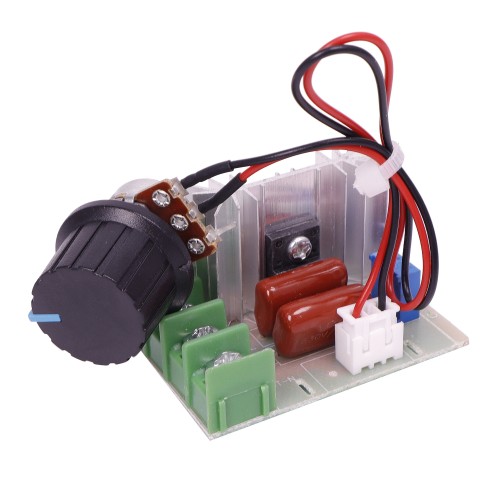

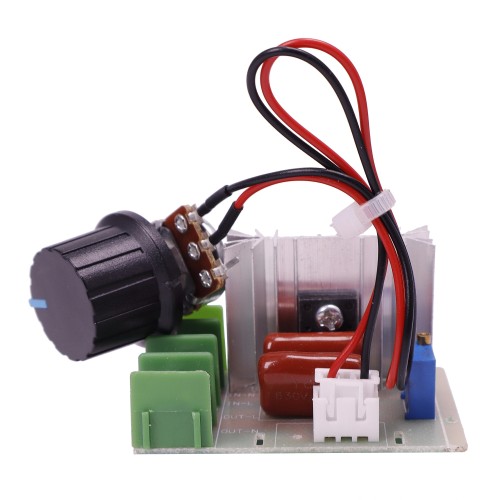

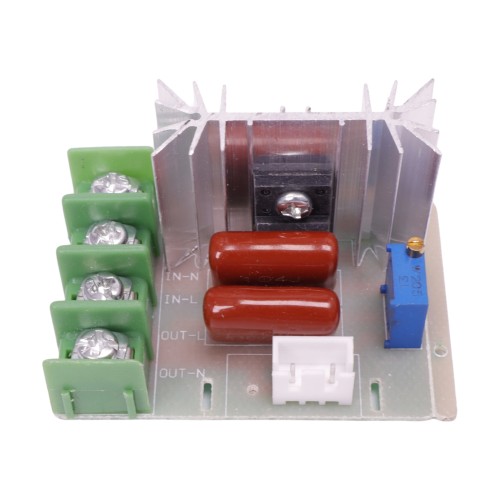

AC POWER controller module up to 2000W - 2kW maximum SCR voltage and power regulator controls the operating voltage from 10V to 230V AC.

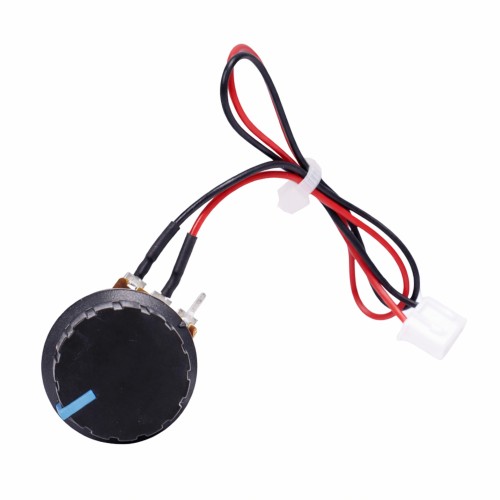

The power controller has a built-in potentiometer for infinite output voltage adjustment and a heat sink for better heat dissipation from the triac.

The regulator can be used in many devices powered by AC voltage from the power grid.

light intensity control (dimmer)
infinitely variable speed control of motors in power tools, fans, etc.
charge current regulation in battery chargers
temperature control: heaters , heaters, etc.
Infinitely adjustable motor speed, heater temperature and speed in power tools.
Terminal block connectors for screwing wires - aRK twist-on connectors
The system built on thyristor.
The controller uses an innovative bi-directional high-power SCR to regulate current up to 25A.

Technical specifications of the 2000W regulator

max. output power : 2000 watts
max. output current: 8A
working voltage : 230 V
regulation range : 10 V - 230 V
working temperature: -20°C to 40°C

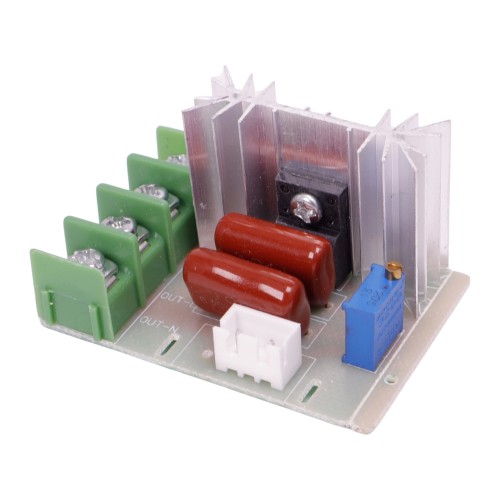

triac equipped with a heat sink
max dimensions with heatsink: 39x49x26mm
cable length: 200mm

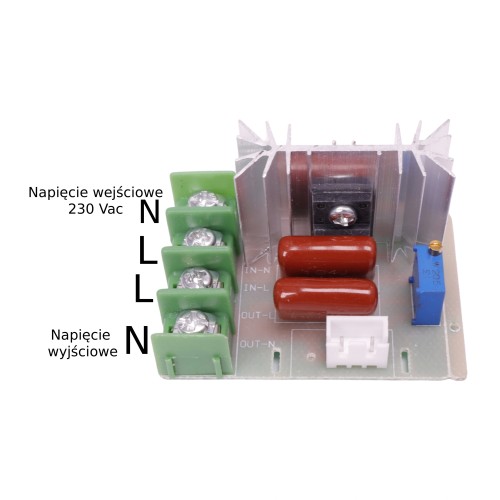

Connection method:

to the input connect the wires with mains voltage 230 V.
to the input terminal labeled "L" connect the wire with the phase,
connect the neutral wire to the "N" terminal.
connect the output terminals freely, provided that the receiver does not require a corresponding connection.

Important note on safety

There is a high life-threatening voltage on the executive module side of the controller board!
Do not, under any circumstances, perform tests on the device without proper protection, you risk electric shock.
There is high potential on almost every element on the module side. Special care should be taken
