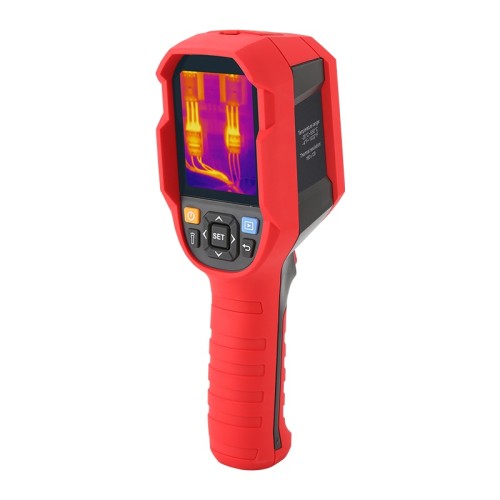

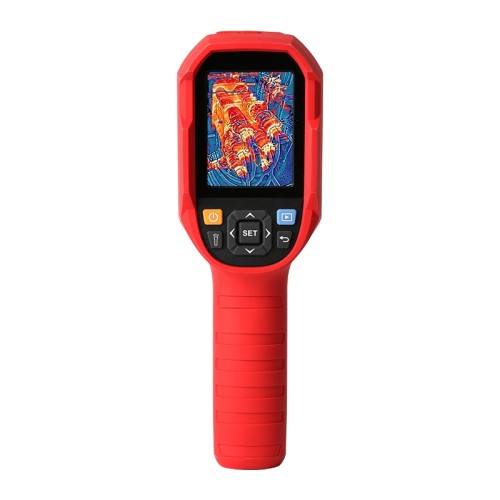

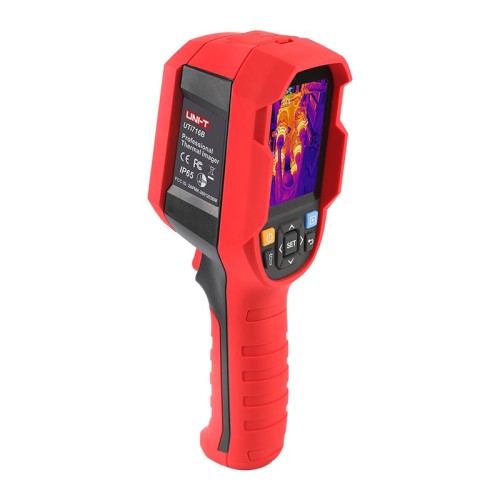

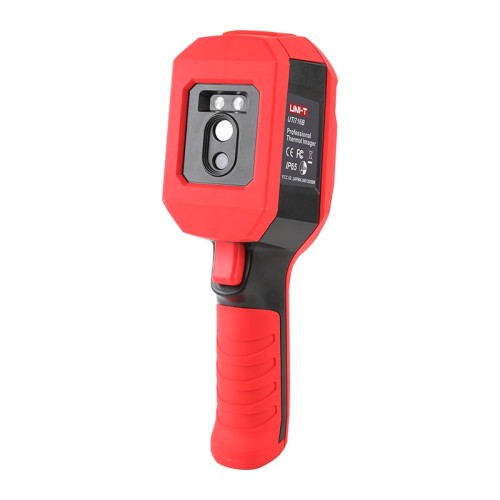

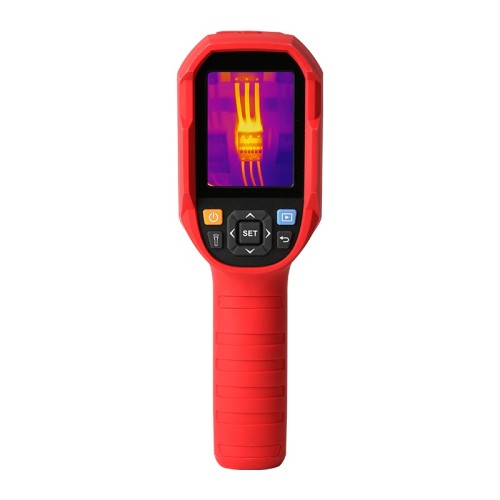

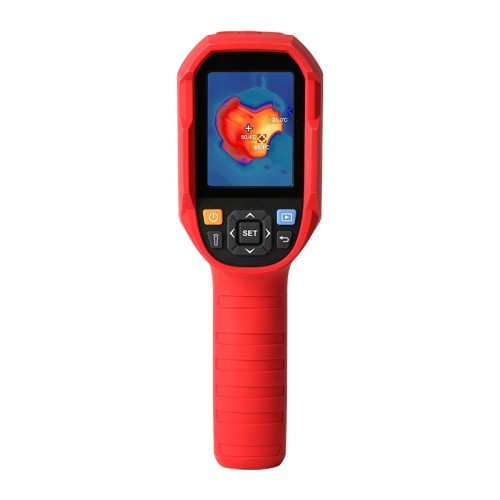

Professional thermal imaging camera, 160x120, -20-550C, 25Hz, 2.8' TFT LCD, camera 2MP, IP65, WIFI, video recording, UNI-T
Ex Tax: 318.93€
UTi716B
High-performance thermal imaging camera
The UNI-T UTi716B is a rugged and reliable thermal imaging camera designed for demanding environments and delivering outstanding performance. It features a 160×120 infrared detector with an enhanced Super Resolution mode that increases image resolution to 320×240. The main feature is its rugged construction, IP65 rated for dust and water resistance, and certified to withstand a 2-meter drop. The UTI716B is an ideal and reliable tool for professionals working in the fields of field maintenance, HVAC, and building diagnostics, with a wide temperature measurement range from -20°C to 550°C, Wi-Fi connectivity for mobile device integration, and an ultra-long 8-hour battery life, IP65 rated, and 35GB internal memory.
Features:
- 160×120 infrared resolution (increased to 320×240 when super resolution is enabled)
- Temperature measurement range from -20 °C to 550 °C
- T-Mix video blending algorithm technology
- Video recording
- With 2 MP digital camera
- Wi-Fi connection
- Multilingual operating system
- IP65 and 2m drop resistance
· Technical
Technical data | |
Screen | 2.8 inch TFT (320×240) |
IR resolution (dots) | 160×120 |
Super resolution (dots) | √ (320×240) |
Spectral range | 8~14µm |
Pixel size | 12 µm |
Frame rate | ≤25Hz |
Thermal sensitivity (NETD) | ≤50 mK |
Focusing | Without focus |
Field of View (FOV) | 40°(H) × 30°(V) |
Spatial resolution (IFOV) | 4.62 mrads |
Temperature measurement range | -20 ℃ ~550 ℃ |
Accuracy | ±2 ℃ or ±2%, whichever is greater |
Features | |
Color palette | White hot, black hot, red hot, iron arc, lava, rainbow, rainbow HC |
Image mode | Thermal, visual image, T-Mix fusion, PIP |
Screen analyzer | 5 points/3 rectangles |
High/low temperature alarm | LCD animation, LED flashlight, whistle |
High/low temperature monitoring | √ |
Digital camera resolution | 2 MP |
Video recording | √ |
Wi-Fi/Wi-Fi Live Streaming | √ |
LED lighting | √ |
Analysis software | PC+APP |
General characteristics | |
Battery | 5000 mAh rechargeable lithium-ion battery |
Operating time | ≥8 hours |
USB | Type C |
Memory | Built-in 32 GB |
Image/video storage format | JPG/MP4 |
Protection | IP65 and 2m drop resistance |
Certificates | CE, FCC, RoHS |
Languages | EN, FR, DE, IT, ES, SV, PL, CZ |
Weight | 600g |
Dimensions | 236mm × 75.5mm × 86mm |
Packaging details | |
Standard accessories | USB Type-C cable, quick start guide, downloadable user manual |
Standard individual packaging | Gift box |
Standard quantity per carton | 10 pcs |
Standard carton size | 500mm × 315mm × 295mm |
Standard carton weight | 11.2 |
