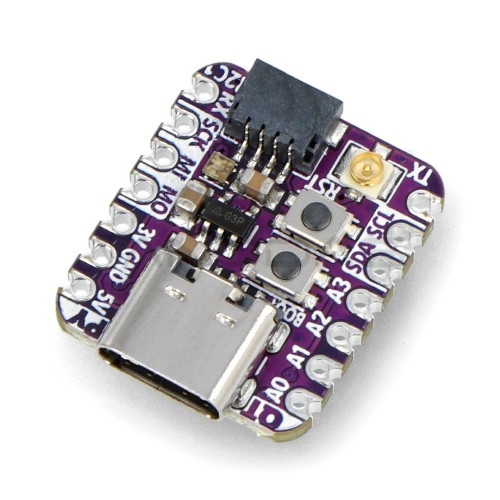

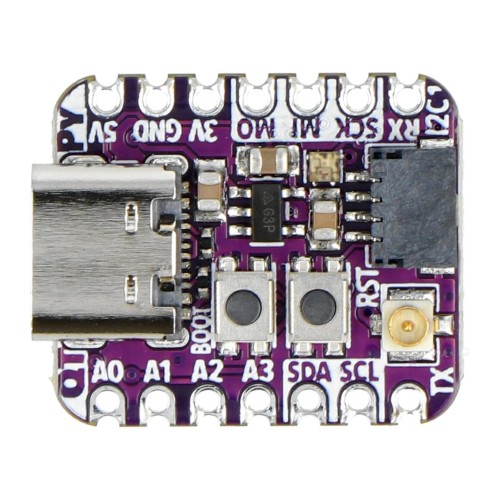

QT Py ESP32-S2 development board with WiFi and u.FL antenna connector - STEMMA QT/Qwiic - Adafruit 5348

Brand: Adafruit
Product Code: AN-21080
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
24.60€
Ex Tax: 20.33€

Qty

QT Py is a development board equipped with an ESP32-S2 chip with WiFi wireless communication. Supports WiFi 2.4 GHz 802.11b/g/n standard. The module has 4 MB of Flash memory, 2 MB of external PSRAM memory and u.FL antenna connector. In addition, the board has an RGB NeoPixel diode and a 3.3 V LDO stabilizer with a maximum current efficiency of up to 600 mA. QT Py from Adafruit offers the user as many as 13 GPIO pins: analog inputs, DAC output, PWM, I2C, UART, SPI and I2S interface, as well as a touch button driver.

Specification:
  • Built-in ESP32-S2 chip
  • Tensilica processor clocked up to 240 MHz
  • 4 MB of Flash and an additional 2 MB of PSRAM
  • Native USB Type-C port designed for programming and power; supported by any operating system - can be used in Arduino or CircuitPython, as a USB serial console, MIDI, HID keyboard/mouse, or a hard disk for storing Python scripts
  • 2.4 GHz WiFi communication in the 802.11b/g/n standard is supported

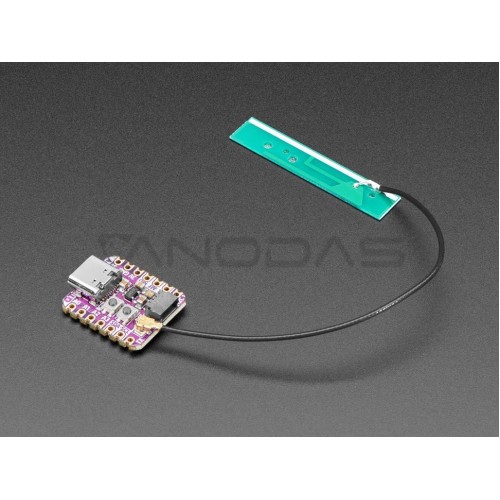

  • u.FL antenna connector (the antenna is not included, it can be purchased separately)
  • LDO stabilizer 3.3 V / 600 mA
  • Optimized power system ensuring low energy consumption
  • Built-in RGB NeoPixel LED
  • 13 x GPIO pins:
    • 10 x 12-bit ADC analog inputs
    • 2 x 8-bit DAC outputs
    • PWM on any pin
    • 2 x I2C + STEMMA QT / Qwiic as plug-and-play
    • UART
    • SLEEPS
    • I2S
    • Driver for 5 capacitive touch buttons
  • Reset and Boot button
  • Connectors: STEMMA QT / Qwiic, solder pads
  • Module dimensions: 21.8 x 17.9 x 5.7 mm
  • Weight: 2.1 g
Set includes:
  • QT Py ESP32-S2 - development board with WiFi and u.FL antenna connector - STEMMA QT/Qwiic - Adafruit 5348 - 1 piece
  • 1x16 goldpin strip - 2.54 mm raster - 1 piece
