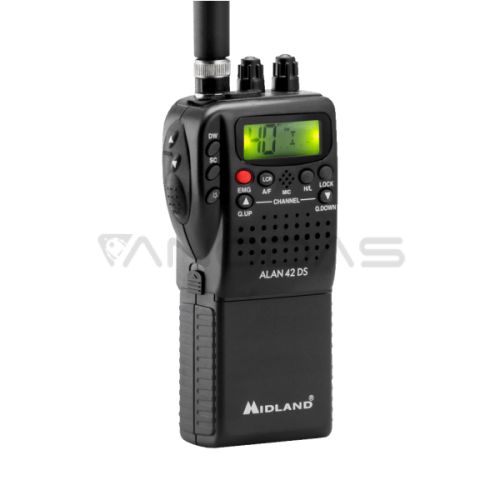

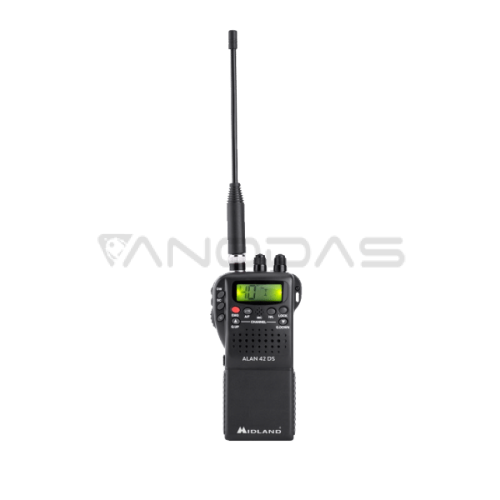

Radio CB ALAN 42DS AM / FM DIGITAL SQUELCH

The LAN 42 MULTI is a compact portable CB radio that can be quickly adapted to the car. The current version makes it easy to change the frequency range according to one of several European CB standards. Frequency synthesis is performed using a PLL phase loop, and current consumption is reduced by automatic battery saving. The large, multifunctional, backlit display shows information about the device's operating parameters. An optional external speaker microphone that improves usability can be plugged into the accessory jack.

• Q UP/Q DOWN fast channel change every 10
• Scan for automatic call search
• Quick priority 9 channel selection (emergency)
• The DW button allows you to watch two channels at the same time
• LOCK key lock
• H/L transmission power change 4/1W
• Illuminated controls make it easy to control the radio at night
• Thanks to the highest quality materials, impact-resistant printed circuits, monolithic integrated circuits, PLL frequency synthesizer
• Midland Alan 42 Plus Multi guarantees many years of work

Specification:

• Frequency range: 26 960 to 27 400 MHz
• Number of channels: 40 AM/FM
• Emission types: A3E (AM), F3E (FM)
• Frequency control: PLL phase loop
• Antenna resistance: 50 ohms
• Speaker: 0.5 W / 8 ohms
• Microphone: condenser
• Power supply: 7.2-13.2 Vdc
• Antenna socket: 50 ohms, BNC
• Dimensions: 30 (length) x 140 (height) x 70 (depth) mm
• Weight: 190g without batteries

RECEIVER

• Picking system: double conversion superheterodyne
• Sensitivity: 0.5uV (AM), 0.25 (FM) at 10dB SINAD
• Intermediate frequencies: I°IF: 10.695 MHz II°IF: 455 KHz
• Channel separation: 60dB
• Part of the inhibition. mirror: 60dB
• Power to come out. sound @10% THD: 0.5 W@8Ohm
• Sound distortion: 3%@
• Frequency response: 400 Hz÷2400 Hz
• Power consumption in standby mode: 100mA, 45mA in SAVE mode

TRANSMITTER

• Output power: 1 or 4W switchable AM ​/FM
• Modulation: AM: 90%, FM: 1.8 KHz ± 0.2 kHz
• Frequency response: 500Hz ÷ 3kHz
• Maximum current consumption: 1100mA (without modulation)

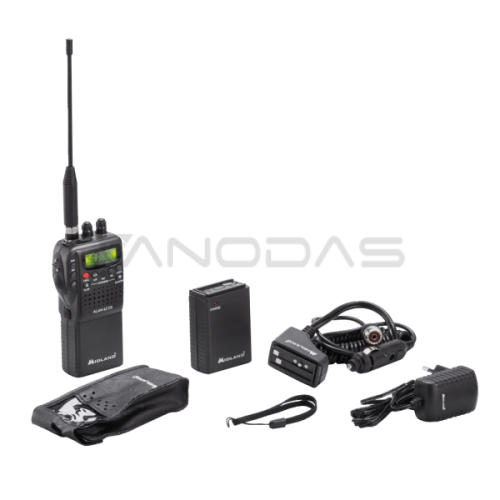

• Radio with belt clip
• Short spiral antenna (20cm)
• Battery box with charging socket
• Charger
• Battery compartment

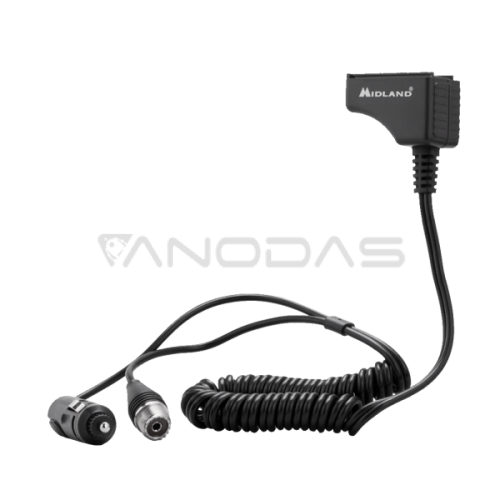

• Power adapter with external antenna output (50 ohm UHF socket)
