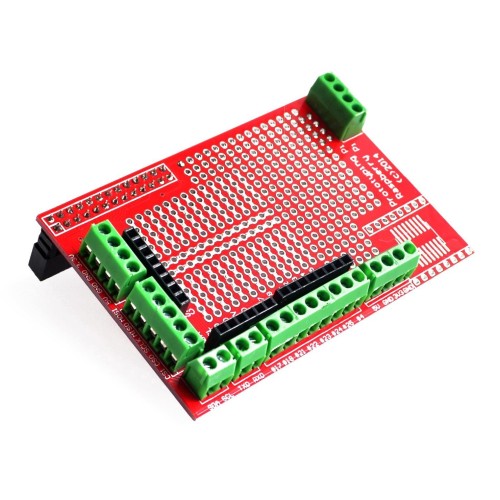

Raspberry Pi prototyping shield. Screw connections allow for reliable connection of high power wires, F-type sockets for quick prototyping, and free solder pads for convenient soldering of desired components.
- A big prototyping area, half of which is 'breadboard' style and half of which is 'perfboard' style so you can wire up DIP chips, sensors, and the like.
- Along the edges of the proto area, all the GPIO/I2C/SPI and power pins are broken out to 0.1" stips so you can easily connect to them.
- On the edges of the prototyping area, all of the breakout pins are also connected to labeled 3.5mm screw-terminal blocks. This makes it easy to semi-permanently wire in sensors, LEDs, etc.
- There's also a 4-block terminal block broken out to 0.1" pads for general non-GPIO wiring.
- A SOIC surface mount chip breakout area, for those chips that dont come in DIP format.
