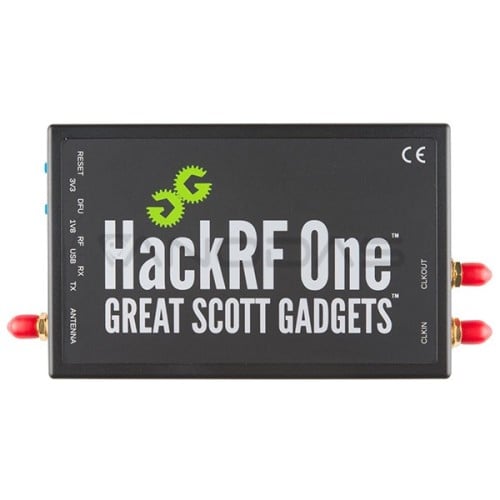

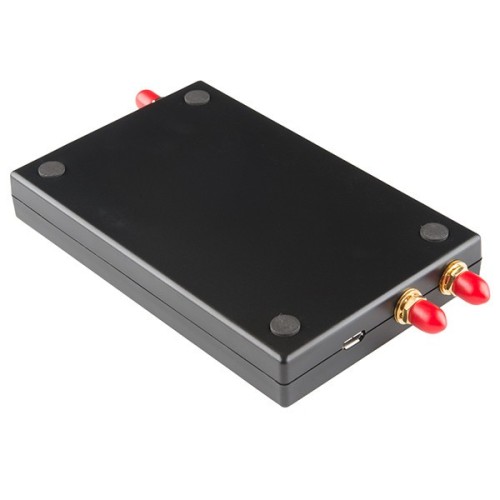

Receiver HackRF One SDR 6 GHz

Product Code: SPF-04289
Availability: 3-5 business days
Planned delivery date after ordering: 2020-12-03
351.56€ 413.60€
Ex Tax: 290.55€


Device for transmission and reception of radio waves in the frequency range from 10 MHz to 6 GHz, designed to study and develop the radio signals.


  •     Powered by microUSB connector
  •     Frequency range: 1 MHz to 6 GHz
  •     Transmission in mode half-duplex
  •     Sampling rate to 20 msps
  •     Compatible with GNU Radio and SDR#
  •     The possibility of configurating of the gain of RX and TX
  •     You can monitor the antenna output (50 mA at 3.3 V)
  •     Connector for external antenna: SMA female
  •     Clock iput and output: SMA female
  •     Outputted buttons for programming
  •     Interface: USB 2.0 High Speed

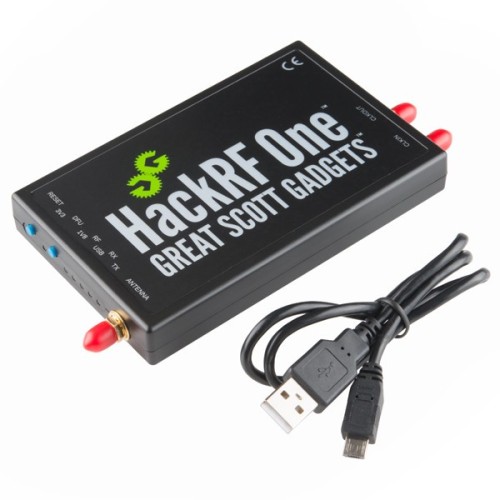

Module HackRF One
MicroUSB cable - A
