RFID Reader with Cards Kit- 13.56MHz

Product Code: AN0232
EAN: 4779044515158
Availability: Vilnius Store In Stock
Kaunas Store In Stock
Ex Tax: 7.02€


RFID reading and writing module suitable for Arduino and similar microcontrollers. The module is controlled by the SPI interface. It allows you to read and write RFID cards and other devices in a contactless way.
Technical specs. and features:
●    RFID chip: MFRC522
●    Operating frequency: 13.56MHz
●    Works with RFID devices compliant with ISO 14443A / MIFARE standard
●    Supported RFID card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire
●    Supports fast CRYPTO1 encryption algorithm, terminology validation for MIFARE products.
●    Control interface: SPI, up to 10 Mbps
●    Operating current: 13-30 mA / DC 3.3V
●    Standby current: 10-13 mA / DC 3.3V
●    Sleep current: <80 uA
●    Operating temperature: -20 - 80 ° C
●    Reading distance: up to 50 mm
●    Dimensions: 40mm × 60mm
External links and applications:
●    Using with Arduino
●    RFID writing and reading
●    Security systems

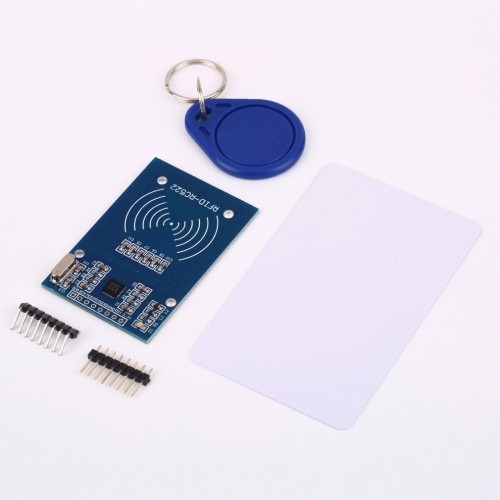

Kit contains:
●    1 x A RFID-RC522 module
●    2 x RFID S50 cards
●    Connections
