RGB LED Hat - Raspberry Pi 3/2/Zero Shield
RGB LED Hat - Raspberry Pi 3/2/Zero Shield
RGB LED Hat - Raspberry Pi 3/2/Zero Shield

RGB LED Hat - Raspberry Pi 3/2/Zero Shield

Brand: Waveshare
Product Code: WSR-08869
Availability: 3-5 business days
Planned delivery date after ordering: 2020-09-24
12.60€
Ex Tax: 10.41€

Qty

Add to Wish List

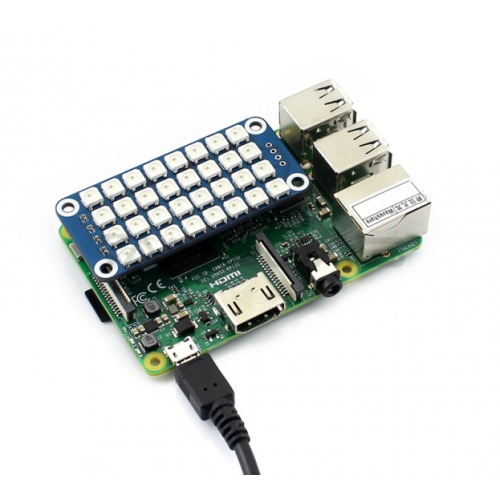

This RGB LED HAT can be easily attached on top of the Raspberry Pi to display colorful effect, and controlled by only one signal pin.

Features
  • Supports any revision of Raspberry Pi (directly-pluggable)

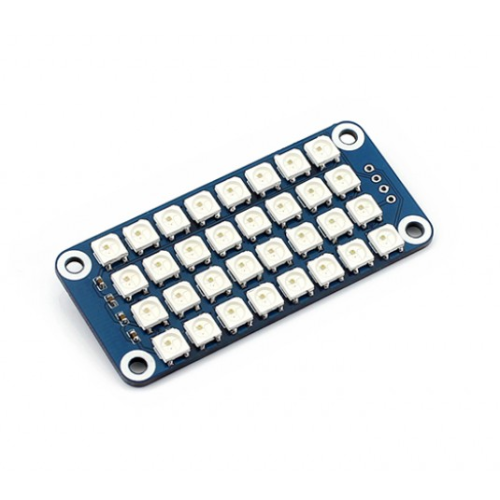

  • Onboard 4 × 8 RGB LED (WS2812B)
  • Control pin is configurable via jumpers (0Ω resistor)
  • Break out control pins, easy for working with other MCUs
  • Comes with development resources and manual (examples in Python and Web control)
Specifications
  • Operating voltage: 5V
  • Brightness: adjustable 256 levels
  • Color depth: 24-bit true color (8-bit for R/G/B respectively, totally 256x256x256=16777216 colors)
  • Data rate: 800Kbps(typ)
  • Dimension: 65mm × 30.2mm
  • Mounting hole size: 3.0mm

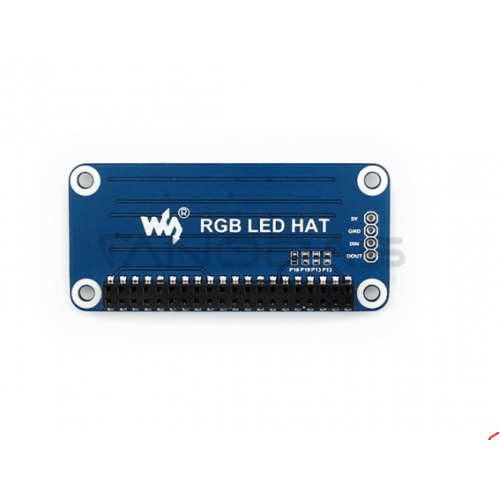

How to Use

In the case of working with a MCU:

  • 5V ↔ 5V power
  • GND ↔ GND
  • DIN ↔ Signal input
  • DOUT ↔ Signal output (optional)
