Rotation sensor pulse generator optical encoder 4.8 V - 24V DFRobot 400P/R

Product Code: AN-09381
Availability: 3-5 business days
Planned delivery date after ordering: 2024-04-05
37.50€
Ex Tax: 30.99€

Qty

The encoder generates two-phase, rectangular pulse signal AB by rotating the shield with opto-isolator. Resolution is 400 pulses per rotation for each phase which gives the possibility of obtaining 1600 pulses per rotation using both signals. The maximum speed of the encoder is 5000 R/min.

On the output of the system is a NPN transistor in open collector configuration which means that you need a pulled-up resistor. The module has system of voltage regulation 750L05 that is powered by DC voltage from 4.8 V to 24 V. The encoder is compatible with Arduino, STM32, PLC and other types of microcontrollers.

Specification :

  • Supply voltage: from 4.8 V to 24 V
  • Encoder size: Φ 39 x 36.5 mm
  • Shaft diameter: Φ 6 x 13 mm
  • The external platform of shaft: Φ2 0 x 4.85 mm
  • Mounting of the screws: M3
  • Weight: 234 g

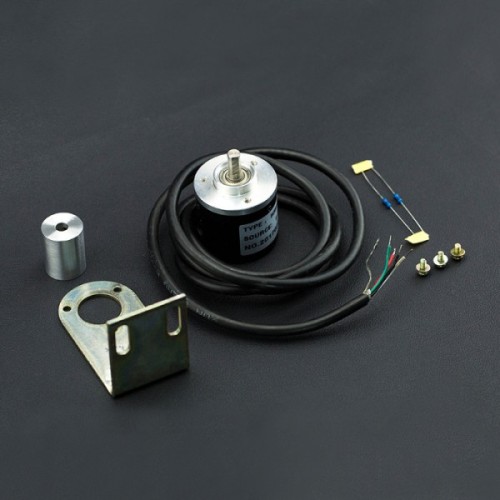

Set includes :

  • Encoder
  • Mounting bracket
  • Mounting screws
  • 2 x 10K resistor
