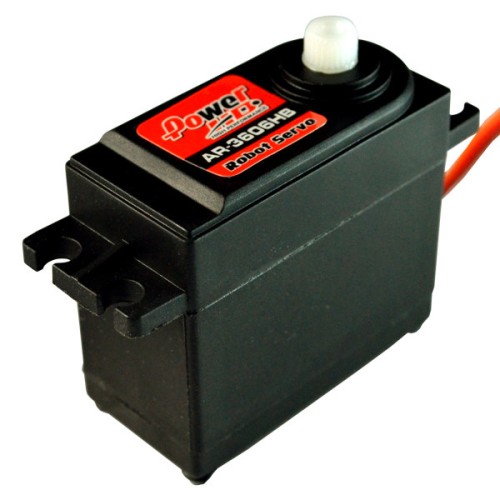

Servo PowerHD AR-3606HB Continuous Rotation

Product Code: AN-01880
EAN: 4772164006070
Availability: Vilnius Store In Stock
Kaunas Store Out of Stock
12.90€
Ex Tax: 10.66€

Qty

Servo motors are a type of motors that move, when given new position data. An integrated chip determines it's current position and moves the motor to the new position.

Specification

  • Voltage: from 4,8 V to 6,0 V
  • Movement range: unlimited
  • With potentiometer
  • Control signal: 50 Hz / 1 - 2 ms
  • Two ball bearings
  • Dimensions: 40,5 x 20,0 x 38,0 mm
  • Weight: 40 g



  • 4,8 V parameters:
    • Torque: 6,0 kg*cm (0,58 Nm)
    • Speed: 0,16 s/60°

  • 6,0 V parameters:
    • Torque: 6,7 kg*cm (0,65 Nm)
    • Speed: 0,14 s/60°

  • The kit includes servo horn set, spacers and screws.
