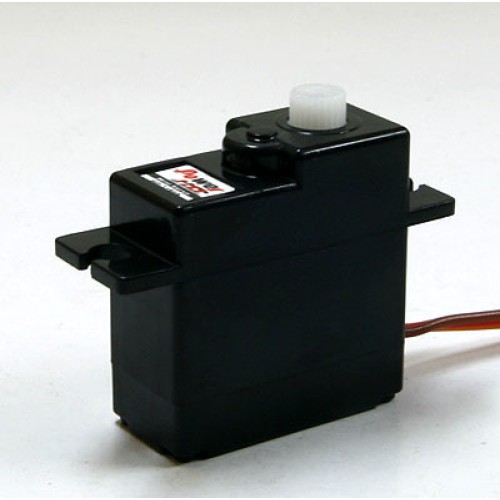

Servo PowerHD HD-1160A - medium

Product Code: AN-02303
EAN: 4772164006124
Availability: Vilnius Store In Stock
Kaunas Store Out of Stock
5.53€ 6.50€
Ex Tax: 4.57€

Qty

Servo motors are a type of motors that move, when given new position data. An integrated chip determines it's current position and moves the motor to the new position.

Specification

  • Voltage: from 4,8 V to 6,0 V
  • Movement range: from 0 ° to 180 °
  • Type: analog
  • Working temperature: from -15 ° C to 55 ° C
  • Control:
    The frequency of the control signal: 50 Hz
    Neutral position: 1500 μs
    Turning clockwise: 1500 -> 2000 μs
    The maximum range of pulses: 800 - 2200 μs
  • JR connector
  • Cable length: ~150 mm
  • Dimensions: 29 x 12 x 30,2 mm
  • Weight: 16 g



  • 4,8 V parameters:
    • Torque: 2,0 kg*cm (0,19 Nm)
    • Speed: 0,12 s/60°
    • Power consumption in standby mode: 4 mA
    • Power consumption without load: 160 mA
    • Maximum current consumption: 680 mA

  • 6,0 V parameters:
    • Torque: 2,7 kg*cm (0,26 Nm)
    • Speed: 0,11 s/60°
    • Power consumption in standby mode: 5 mA
    • Power consumption without load: 180 mA
    • Maximum current consumption: 800 mA

  • The kit includes servo horn set, spacers and screws.
