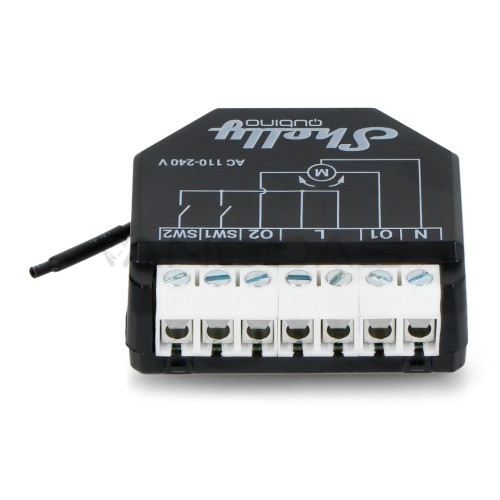

Shelly Qubino Wave Shutter - 230V roller shutter controller - energy measurement - Z-Wave

Brand: Shelly
Product Code: AN-24176
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-10-03

31.30€
Ex Tax: 25.87€

Qty

Add to Wish List

Shelly Qubino's Wave 2PM Shutter Controller is the perfect solution for those looking to fully control shutters and other devices powered by bi-directional AC motors. With advanced functions, you will save energy, gain comfort and integrate into the ecosystem of your smart home.

With the controller, your blinds can open and close at the time you choose, creating the perfect atmosphere to start and end your day. In addition, you can use the position control to set the correct position of the curtains and adjust the lighting level to your liking. You can control them manually with a switch or button.

With the Shelly controller, you can adjust the position of the blinds using the smart home app - no more getting up from your desk and interrupting your work! Not only that, this equipment also allows you to adjust the angle of the blind slats to let in as much light as you need.

This controller is compatible with certified Z-Wave gateways and more than 4,000 other devices, so you can easily integrate it into your existing smart home infrastructure. It allows you to control and monitor your devices remotely, giving you complete control over the energy each one uses.

Increase security and integrate the Shelly controller with other devices to create smart scenes. In your absence, the blinds will automatically adjust to a certain time and the lights will turn on every night. This will give the impression that someone is home, deterring potential intruders.

Once you establish connections between the Shelly controller and other Z-Wave devices, they can communicate directly without a gateway. For example, you can pair the Wave Shutter with a Z-Wave wind sensor or weather station. This way, when strong winds are detected, the awnings will close automatically to prevent damage. Note: Programming Smart Schedules and Smart Scenes will require a gateway.

Specifications:

Manufacturer: Shelly
Model: QubinoWaveShutter
Size: 37x42x16±0.5mm
Weight: 29g
Installation: wall console
Screw terminals max. torque: 0.4Nm
Cable cross-section: from 0.5 to 1.5mm²
Cable length without insulation: from 5 to 6 m
Shell material: plastic
Color: black
Ambient temperature: -20°C to 40°C / -5°F to 105°F
Humidity: 30% to 70% relative humidity
Maximum Elevation: 2000 m / 6562 ft
Power supply: 110-240 V AC ±10%
Energy consumption: < 0.3W
Power metering: Yes
Max. switching voltage AC: 240V
Max. switching current AC: 10 A per channel
Z-Wave frequency bands: 868.4 MHz; 865.2 MHz; 869.0 MHz; 921.4 MHz; 908.4 MHz; 916 MHz; 919.8 MHz; 922.5 MHz; 919.7-921.7-923.7 MHz; 868.1 MHz; 920.9 MHz
Z-Wave repeater: Yes
Z-Wave range: up to 40 m (131 ft) indoors (depending on local conditions)
Maximum RF power transmitted in the frequency bands: <25 mW
Processor: Z-Wave S800
Overcurrent protection: Yes
Overheat protection: Yes

Tags: shelly, qubino, wave, shutter, 230v, roller, controller, energy, measurement, z-wave, relay, and, meters
