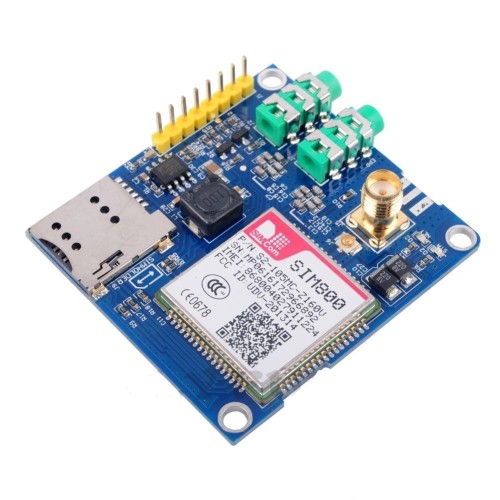

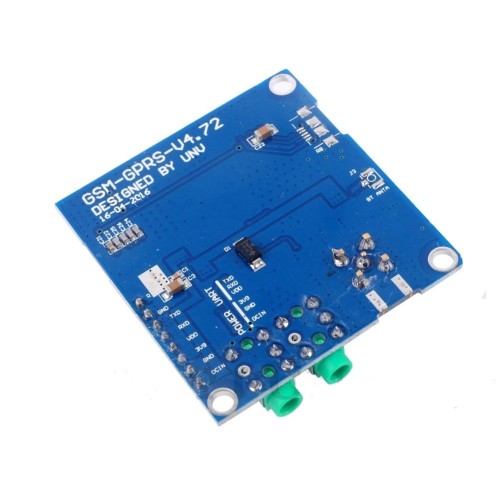

SIM800 GSM GPRS Deverlopment Board Module

Product Code: AN0214-35
EAN: 4779044515493
Availability: Vilnius Store In Stock
Kaunas Store In Stock
31.90€
Ex Tax: 26.36€

Qty

The SIM800 is a GSM GPRS connection module that uses very little power and is suitable for use with Arduino and similar microcontrollers. It can be used to make and receive calls, write and receive SMS messages, use GPRS mobile internet connection and otherwise adapt the capabilities of a regular phone to Arduino.

Technical specs. and features:
●    Suitable for: Arduino UNO, Leonardo, AVR, STM32 and other similar microcontrollers
●    Supply voltage and current: 3.7-4.2V or 5-18v, supply current must be >1A
●    Logic signal voltage: 2.85-5V DC
●    3.5mm jack for headphones and microphone
●    microSIM slot
●    Operating frequencies: 850/900/1800/1900 MHz, GPRS 10/8, GPRS class B
●    Connections: SMS, calls, GPRS internet
●    Operating temperature: -40 ° C ~ 85 ° C
●    Operating current only 1.5mA
●    Dimensions: 48x51 mm

External links and applications:

●    Programable SMS, calls and websurfing
