Smart SwitchBot Relay Switch 1PM.

Brand: SwitchBot
Product Code: W5502310
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-11-20

23.30€
Ex Tax: 19.26€

Qty

Add to Wish List

Description Product Delivery

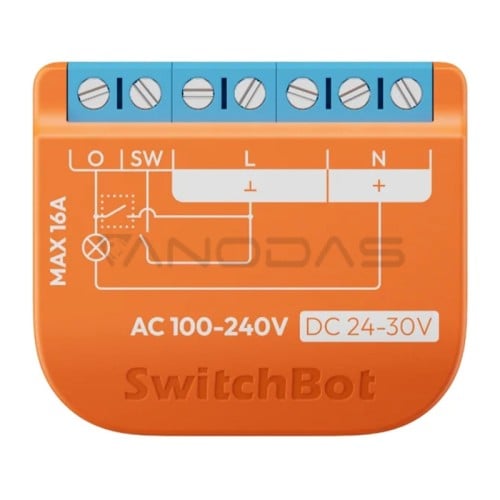

SwitchBot Relay Switch 1PM smart switch

The SwitchBot Relay Switch 1PM is an advanced device that supports the Matter protocol, enabling seamless interoperability with multiple smart home platforms. With Matter certification, you can control two Bluetooth SwitchBot devices simultaneously, integrating them with Apple Home, Alexa, Google Home and SmartThings - all from a single app. This solution eliminates the need to switch between different platforms, providing convenience and ease of use.

Enhanced Bluetooth networking

The built-in Bluetooth Repeater on the Relay Switch 1PM can support up to 10 Bluetooth SwitchBot devices, extending the network range up to 80 meters in open space. This feature ensures that connections remain stable even in larger homes, providing reliable communication between devices. You can remotely view the status of each connected device and connect them to automations, creating a comprehensive smart home.

Instant automation without replacing installations

SwitchBot Relay Switch 1PM transforms traditional lighting and appliances into smart systems in just 10 minutes. You don't need to replace existing switches or wiring - the product works perfectly with wall switches, lamps, heaters, ceiling fans and more. Compact dimensions (42 x 36 x 16 mm) and a weight of just 27 grams allow for discreet installation directly into flush-mounted boxes.

Detailed monitoring of energy consumption

The 1PM is distinguished by its advanced real-time energy consumption monitoring function. You can track detailed energy reports with free annual access to the data cloud, export statistics and optimize power consumption, resulting in lower bills. The device displays daily energy consumption, total on-time, power, current, voltage and total power from the previous day.

Multi-channel control

The SwitchBot Relay Switch 1PM offers convenient voice control via Alexa, Siri and Google Assistant, allowing hands-free operation of devices. The remote function works via Wi-Fi and Bluetooth, providing local control even if the Internet fails. You can set custom schedules to automatically turn off lights at night to save energy, and use motion triggers to automatically turn on lights when doors are opened.

Security at the highest level

The SwitchBot Relay Switch 1PM is equipped with comprehensive safety features, including protection against overheating (automatic shutdown at temperatures above 100°C), overloading, and an emergency power cut-off function. The V0 housing made of fire-resistant material and EU, CE and ROHS certifications guarantee the highest level of safety for your home's electrical system. The product supports both AC (100-240V, 16A max) and DC (24V-30V, 10A max).

Flexible modes of switch operation

The Relay Switch 1PM model supports a variety of switch types. Toggle Switch mode maintains 'on' and 'off' states, ideal for traditional light switches. Momentary Switch is a spring-loaded option that temporarily changes the state of a relay when pressed, often used with doorbells and access control systems. Detached Switch physically separates the wall switch from the device, allowing independent control. Edge Switch responds to each press of the button, changing state independently of the previous position, which is ideal for ceiling lights.

Manufacturer	SwitchBot
Model	Relay Switch 1PM
Dimensions	42 x 36 x 16 mm (±0.5 mm)
Weight	27 g (±0.9 oz)
Material	PC
AC power supply	100-240V 50/60Hz
DC power supply	24V-30V
Maximum AC output current	16A
Maximum DC output current	10A
Connection method	Wi-Fi + BLE
Installation method	Built-in
Bluetooth range (indoor)	Maximum 10 meters / 33 feet
Bluetooth range (outdoor)	maximum 30 meters / 100 feet
Wi-Fi range (indoor)	maximum 30 meters / 100 feet
Wi-Fi range (outdoor)	maximum 50 meters / 160 feet
Certifications	EU, CE, ROHS
Push button function	On/off control
Power measurement	Yes (daily, monthly and annual power consumption with data storage limit of 1 year)
Overload protection	Automatic disconnection of the output in case of overloading
Protection against overheating	Immediate disconnection if the temperature exceeds 100°C
Switch modes	Toggle, Momentary, Detached, Edge
Matter support	Yes (ability to add the device to the Home app and connect additional Matter devices)
Maximum number of connected Bluetooth devices	10

Tags: smart, switchbot, relay, switch, 1pm., w5502310
