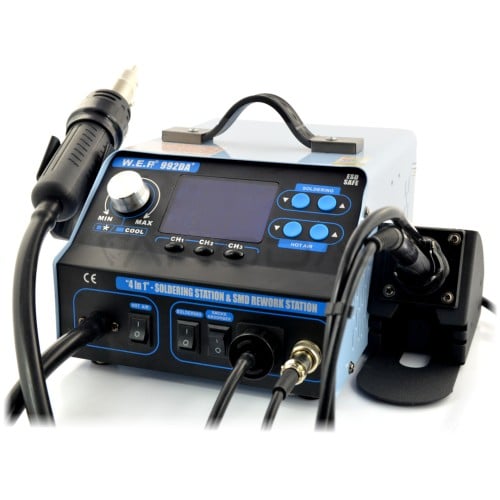

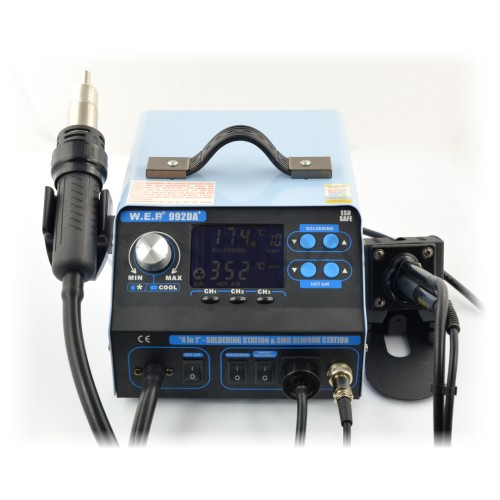

Soldering station 2in1 WEP 992DA+ with Hotair 720W and fume extraction

Product Code: AN-05037
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-12
218.00€
Ex Tax: 180.17€

Qty

Device WEP 992DA+ is the soldering station on hotair and a grotto soldering iron (75 W), used for soldering and desoldering the electronic components. The station is equipped with microprocessor with precise PID controller, which checks the operating parameters and adjusts them to the preset values. 3 programmes of work - station has the possibility to memorize 3 of the work programme for hot air and the flask. Depending on type of works, on assembly or disassembly, we set the appropriate program. The operation of the hotair in automatic and manual mode: automatic - when you put the flask away, the system will turn off the heat and will cool the flask to a safe temperature manual - when you put the flask away, the system continues to heat a heating element, before finishing the work, it is recommended to switch to auto-mode. The function of temperature correction depending on external parameters. Work in C/F mode - the possibility to change the units, in which temperature is displayed. Sleep function for grotto soldering iron - if the flask is not used by the earlier set time (0 - 99 minutes) the system switches it to the sleep mode, that is, cooling it to a temperature of 200 °C, which ensures longer service life of the device. Grotto flask with a heating element, fast heating up itself, keeping a stable temperature, which is electrostatically safe. Ehaust ventilation - station has the possibility to extract of harmful fumes.

Specification:

  •     Power supply: from 220 V to 240 V / 50 Hz (network)
  •     Power consumption: 720 W
  •     The station is controlled through a microcontroller that provides high stability of work
  •     The device has a PID controller
  •     Compact design with large and readable LCD display
  •     The cooling function


 Soldering Iron Hotair:

  •         Blowing of air is through the compressor inside the station
  •         Air-flow: up to 28 l/min
  •         Smooth adjustment of temperature in the whole range
  •         Adjustable temperature of hot air: 100 °C to 480 °C
  •         Temperature stability: +/-1 °C
  •         LCD display showing actual power of air-flow
  •         Manual / automatic operation mode
  •         Protection before reaching too high temperature and informing the alarm
  •         Cable with length of the flask: up to 90 cm


Grotto Soldering Iron

  •         Adjustable temperature of th seoldering tip: 200 °C to 480 °C
  •         Temperature stability: +/- 1 °C
  •         Peak power of the soldering flask iron: from 72 to 75 W
  •         The resistance in relation to grounding: up to 2 Ω
  •         Capacity in relation to grounding: up to 2 mV
  •         The system ESD safe
  •         Cable length of the flask: up to 100 cm
  •         Sleep mode: enabled after idle operation for 0-99 minutes



Includes:
Station WEP 992DA+ with exhaust ventilation
Stand the for the hotair flask
Set of nozzles:
        round with a diameter of 2.5 mm
        round with a diameter of 4.4 mm
        round with a diameter of 6 mm
        round with a diameter of 9 mm
        square 12x12 mm
Stand for the grotto flask along with a cleaning sponge

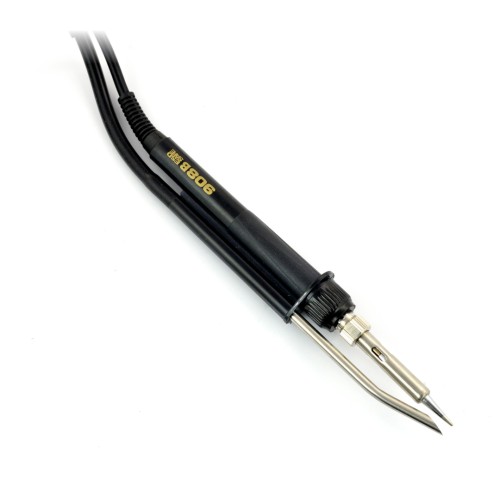

The 908B grotto flask with tip T-B with exhaust ventilation
A gripper for lifting the chips
Power cable
