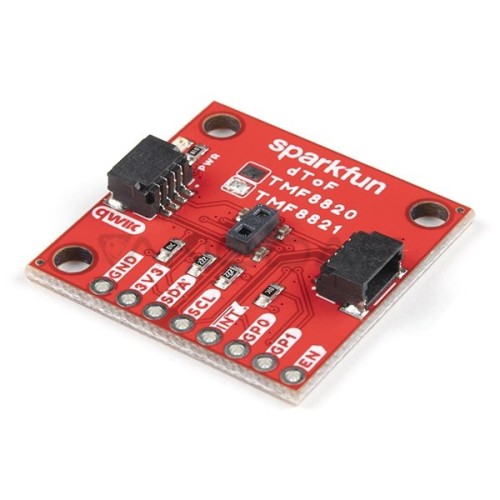

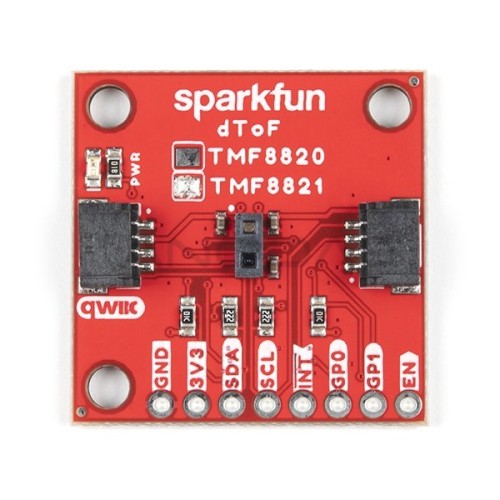

SparkFun Qwiic dToF Imager - TMF8821 - Distance sensor 1-500cm - SparkFun SEN-19037
Brand: Sparkfun
Product Code: AN-21421
Availability: 4-6 business days
Planned delivery date after ordering: 2024-04-26
Product Code: AN-21421
Availability: 4-6 business days
Planned delivery date after ordering: 2024-04-26
Ex Tax: 32.98€
Distance sensor manufactured by SparkFun. It was equipped with the TMF8821 system, which measures in the range from 1 cm to 500 cm. The operation of the sensor is based on the time-of-flight (ToF) technology - the distance from the obstacle is calculated on the basis of the time difference between the light pulses. SparkFun Qwiic dToF Imager detects objects regardless of their color, reflectance or texture. It allows for excellent measurement performance in both dark and sunny places. The communication module uses the I2C interface, it is supplied with a voltage from 2.7 V to 3.6 V.
Main features:
Main features:
- Multi-zone VCSEL Vertical Cavity Surface Emitting Laser by AMS - TMF8821 system
- Direct ToF technology with high SPAD detection sensitivity
- 3x3, 4x4 and 3x6 multi-zone configuration
- Very wide, dynamically adjustable field of view
- Fast Time-to-Digital Converter (TDC) Architecture
- Light pulse less than 1ns
- Processing the histogram on the chip
- Built-in filter and algorithm to limit the influence of sunlight
- Built-in chip: TMF8821
- Measurement technology: ToF Time of flight
- Supply voltage: 2.7 V to 3.6 V (3.3 via Qwiic connector)
- Power consumption:
- standby mode: 8 uA
- active mode: 57 mA
- Distance measuring range: 1 cm to 500 cm at 30 Hz
- Maximum reading speed: up to 30 Hz
- Zone operation: 3x3, 4x4 and 3x6
- Laser beam: 940 nm VCSEL class 1
- Field of view: diagonally adjustable up to 63°
- Communication interface: I2C bus

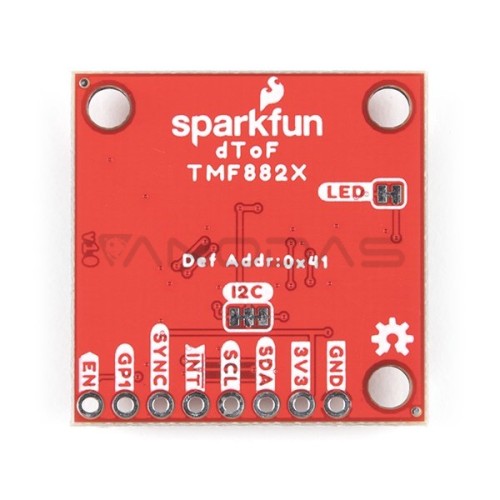

- I2C address: 0x41

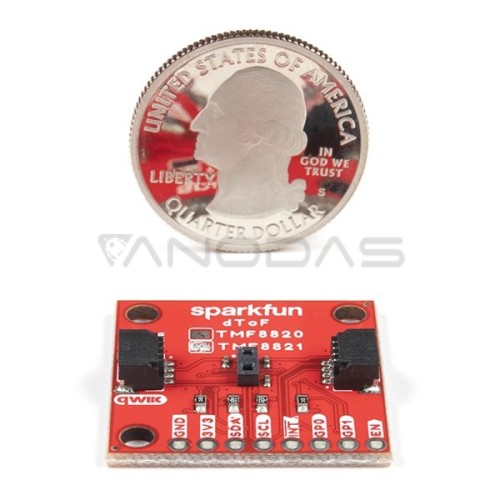

- Tile sizes: 25.4 x 25.4 mm
