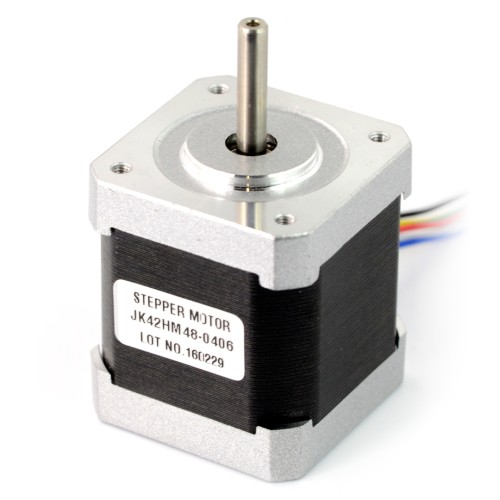

Stepper motor 42HM48-0406 400 steps/rev 12V / 0.4A / 0.31Nm

Product Code: AN-11617
Availability: Vilnius Store In Stock
Kaunas Store In Stock
22.00€
Ex Tax: 18.18€

Qty

A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor's position can then be commanded to move and hold at one of these steps without any position sensor for feedback (an open-loop controller), as long as the motor is carefully sized to the application in respect to torque and speed.

Specification

  • 400 steps / rev (0.9 °)
  • Voltage: 12 V
  • A winding current: 0.4 A
  • Resistance: 30 Ω
  • Inductance: 38 mH
  • Torque 3.17 kg * cm (0.43 Nm)
  • Shaft diameter: 5 mm
  • Weight: 350 g
  • Standard: NEMA 17
  • Size: 42 x 42 x 48 mm
