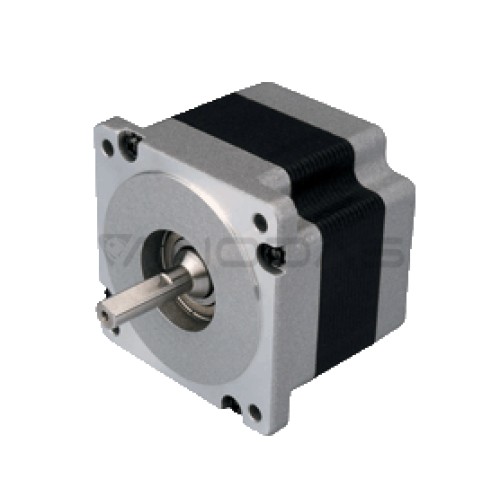

Two-phase stepper motor from Leadshine. Size NEMA 34 (86 mm) which is characterized by high precision and work culture. High holding torque and 8 leads make this possible that engines from this family can be used in many applications that require precise positioning.

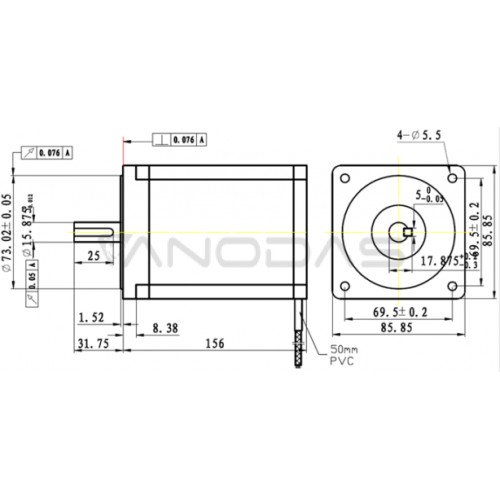

Length (mm): 156

Holding moment [Nm] - p: 12

Holding moment [Nm] - s: 12

Holding moment [Nm] - u: 8.4

Voltage [V] - p: 3.8

Voltage [V] - s: 7.6

Voltage [V] - u: 5.2

Phase current [A] - p: 6

Phase current [A] - s: 3

Phase current [A] - u: 4.2

Resist. phase [Ohm] - p: 0.63

Resist. phases [Ohm] - s: 2.5

Resist. phase [Ohm] - u: 1.25

Phase induction [mH] - p: 8

Phase induction [mH] - s: 32

Phase induction [mH] - u: 8

Rotor inertia [g-cm2]: 4000

Weight [kg]: 5.3

Flange [mm]: 86

Number of trips: 8

Number of steps [°]: 1.8

Brake: No

IP65: No

Shaft diameter [mm]: 15.87

Integrated screw: No

Tags: stepper, motor, 86hs120, 12nm, leadshine, motors, technology
