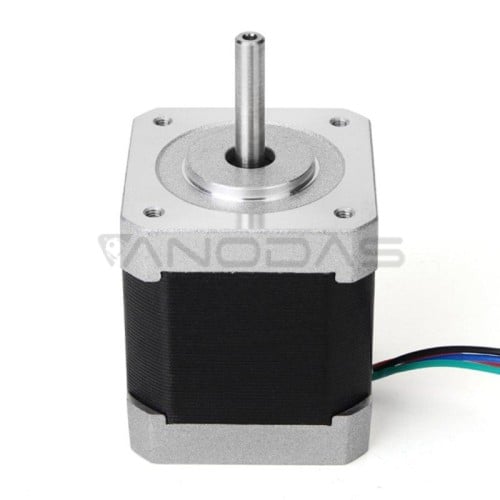

Stepper motor JK42HS40-0504 200 steps/rev 12V / 0.5A / 0.43Nm

Product Code: AN-03610
EAN: 4779044515950
Availability: Vilnius Store In Stock
Kaunas Store Out of Stock
17.80€
Ex Tax: 14.71€

Qty

A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor's position can then be commanded to move and hold at one of these steps without any position sensor for feedback (an open-loop controller), as long as the motor is carefully sized to the application in respect to torque and speed.

Specification:

  • Steps per revolution: 200 (1,8 °)
  • Voltage rating: 12 V
  • Current rating: 0,5 A
  • Resistance: 24 Ω per coil
  • Inductance: 36 mH
  • Torque: 4,4 kg*cm (0,44 Nm)
  • Bipolar (4 wires)
  • Shaft diameter: 5 mm
  • Weight: 280 g
  • Standard: NEMA 17
  • Size: 42 x 42 x 40 mm

Stepper motors are used in:

  • 3D printer
  • CNC machines
  • Laser cutters
  • Manipulators
