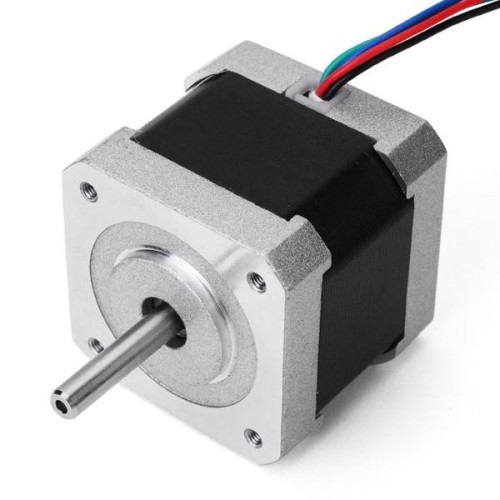

Stepper motor JK42HS40-0806 200 steps/rev 6V / 0.8A / 0.25Nm

Product Code: MOT-06428
Availability: 3-5 business days
Planned delivery date after ordering: 2020-10-29
21.70€
Ex Tax: 17.93€

Qty

A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor's position can then be commanded to move and hold at one of these steps without any position sensor for feedback (an open-loop controller), as long as the motor is carefully sized to the application in respect to torque and speed.

Specification:

  • Steps per revolution: 200 (1,8 °)
  • Voltage rating: 6 V
  • Current rating: 0,8 A
  • Resistance: 7,5 Ω per coil
  • Inductance: 6,7 mH
  • Torque: 2,6 kg*cm (0,25 Nm)
  • Bipolar (4 wires)
  • Shaft diameter: 5 mm
  • Weight: 280 g
  • Standard: NEMA 17
  • Size: 42 x 42 x 40 mm

Stepper motors are used in:

  • 3D printer
  • CNC machines
  • Laser cutters
  • Manipulators
