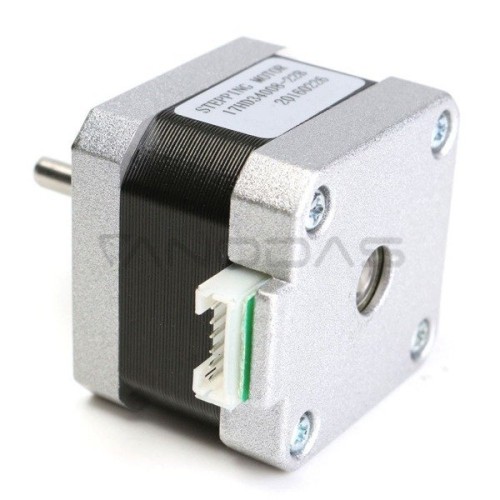

Stepper Motor NEMA17 - KS42STH48-1684A - 1.5A - 48mm

Product Code: ABC-9366
Availability: Temporarily Out Of Stock

17.30€
Ex Tax: 14.30€

Qty

NEMA17 stepper motors are the most popular motors used in the construction of 3D printers, milling machines, plotters and other electronically controlled devices. The middle part where the coils are wound consists of a number of ferromagnetic plates connected to each other. Strong neodymium magnets ensure precise work. The kit includes 4 wires connected with a plug dedicated to stepper motors. On the other hand, the cable is terminated with a 4-pin plug, which allows direct connection to stepper motor controllers such as, for example, a set for building a RAMPS 3D printer or SHIELD for a CNC machine tool and many others.

Main features:

High starting speed
Get precise angular movements at a reasonable price
It can be used to activate disk transistors in the correct order
The ease of operation makes the engine convenient to use
Motors with a wide range of applications, used in 3D printers, monitoring devices, packaging machines, stage lighting, etc.

Specification:

Axle diameter: 5 mm
Movement angle: 1.8 degrees
Rated current 1.68 A
Resistance: 1.65 Ω
Cable length: 70 cm
Holding torque: ≥ 0.5 Nm
CE certificate
Max. temperature: 80 degrees
Ambient temperature range -20 ~ 50 °C
Insulation resistance 100 M - min. 500 V DC
500 V AC dielectric strength for 1 minute
Wiring: 4:

Red B+
Blue B-
Black A+
Green A-

Dimensions 42 mm x 42 mm x 48 mm
Weight: 349 g

Tags: stepper, motor, nema17, ks42sth48-1684a, 1.5a, 48mm, motors
