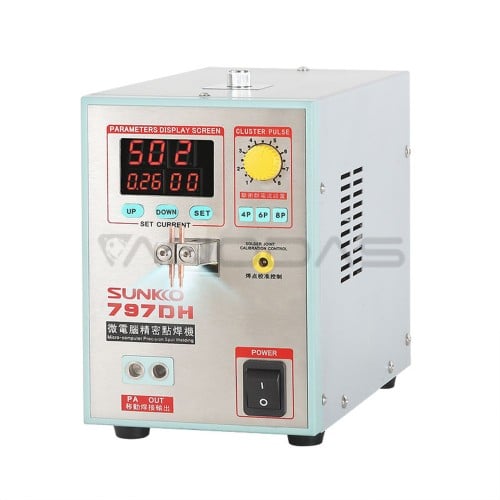

797DH is the professional-level model of battery spot welding. Applicable to weld 18650, 14500 and other lithium batteries. Two ways of welding: fixed welding head and mobile welding pen, must be used with foot pedal.
Press the button and adjust the knob, machine's power is changed conveniently. The built-in LED light helps you work at night. Please read the manual carefully before using.
fixed welding head: 0.05-0.25mm pure nickel strip or 0.05-0.3mm nickel plated steel.
mobile welding head: 0.05-0.15mm pure nickel strip or 0.05-0.2mm nickel plated steel.

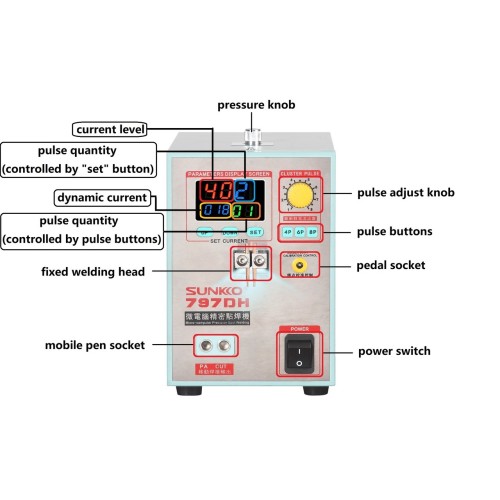

LCD Display:
The welding current and pulse can be easily set.On the basis of sunkko 709 series LCD, we added an extra part to show the dynamic welding current and pulse number during the welding process in real time. The value at the lower left corner stands for the dynamic welding current, 0.1 equals to 100 amps. The value at the lower right corner is the dynamic pulse quantity.
Technical details
- Voltage 220V, 50Hz or 110V, 60Hz
- Power 3.8kw (instantaneous)
- Max. welding current 500A
- Pluse quantity 2-16
- Welding thickness 0.05 to 2mm(nickel plated steel: 0.3mm)
- Mobile welding Pen(70B)
- Length ≤22.4"
- Cable cross sectional area 16mm2
- Dimension of welding pins 1.5 x 7mm
- Max. welding current 800A
- Welding thickness
- 0.05 to 0.2mm(nickel plated steel)
- 0.05 to 0.15mm(pure nickel strip)
- Net Weight 7kg
- Machine dimension 14 x 25 x 20cm
- 797DH main machine: 1pc
- mobile welding pen(3 options): 1pc
- Copper welding rods: 2pairs
- Copper welding pins for mobile pen: 1pair
- Battery fixture: 1pc
- Foot Pedal: 1pc
- Fuse: 2pcs
- Hexagon wrench: 1pc
- 0.15 x 8 x 100 mm (nickel plated steel) 30pcs
- 0.1 x 4 x 100 mm (nickel plated steel) 30pcs
- Manual: 1pc
