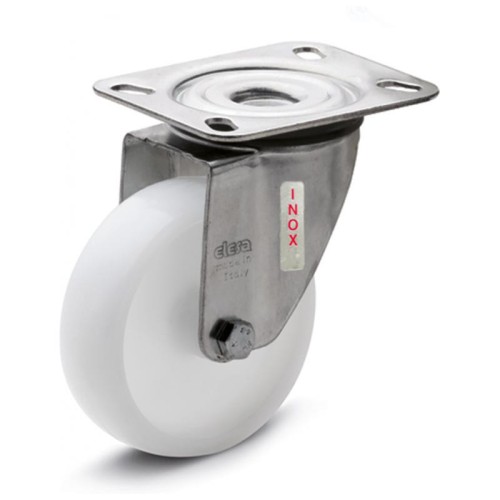

Swivel wheel fi 125mm plastic with mounting plate, load capacity 220 kg RE.F8-125-SBL-SST
Brand: ELESA+GANTER
Product Code: MX-RE-F8-125-SBL-SST
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2026-01-07
Product Code: MX-RE-F8-125-SBL-SST
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2026-01-07
Ex Tax: 46.36€
The RE.F8-125-SBL-SST-N wheel set is a durable transport wheel with a diameter of 125 mm, made of durable stainless steel. Its swivel housing with mounting plate allows it to be attached to various surfaces. The dimensions of the mounting plate are 85x100 mm and the load capacity is up to 220 kg. The hub is made of polyamide-based technopolymer (PA) and the tread is made of the same material. The wheel bearing takes place directly in the wheel disc, using a through hole. The RE.F8-125-SBL-SST-N wheel set can be used to transport trolleys, transport carts, pallets, shelves and other items. Its rugged design makes it an ideal solution for industrial applications where high durability is required.

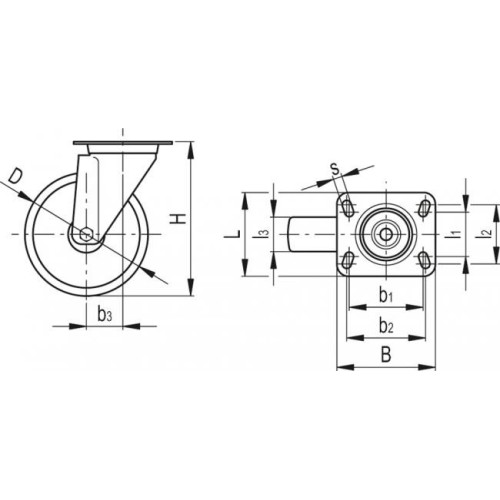

l%2%: 60
b2: 80
l1: 45
L: 85
b3: 37
B: 100
b%1%: 75
Housing material: stainless steel
Housing: swivel with mounting plate
Dynamic load #[N]: 2200
Rolling load capacity #[N]: 2000
Hub: polyamide-based technopolymer (PA)
Tread: polyamide-based technopolymer (PA)
Tread hardness: 75 Shore D
Wheel diameter (D): 125
Tread width (l3): 40
Set height (H): 156
Mounting plate dimensions (L x B): 85x100
Mounting plate hole spacing (l2 x b2): 60x80
Dimension of mounting plate holes (s): 9
Load capacity [kg]: 220
Brake: no
Wheel bearing: through hole directly in the wheel disc
l%2%: 60
b2: 80
l1: 45
L: 85
b3: 37
B: 100
b%1%: 75
Housing material: stainless steel
Housing: swivel with mounting plate
Dynamic load #[N]: 2200
Rolling load capacity #[N]: 2000
Hub: polyamide-based technopolymer (PA)
Tread: polyamide-based technopolymer (PA)
Tread hardness: 75 Shore D
Wheel diameter (D): 125
Tread width (l3): 40
Set height (H): 156
Mounting plate dimensions (L x B): 85x100
Mounting plate hole spacing (l2 x b2): 60x80
Dimension of mounting plate holes (s): 9
Load capacity [kg]: 220
Brake: no
Wheel bearing: through hole directly in the wheel disc
Tags: swivel, wheel, 125mm, plastic, with, mounting, plate, load, capacity, 220, re.f8-125-sbl-sst, mx-re-f8-125-sbl-sst, elesa+ganter
