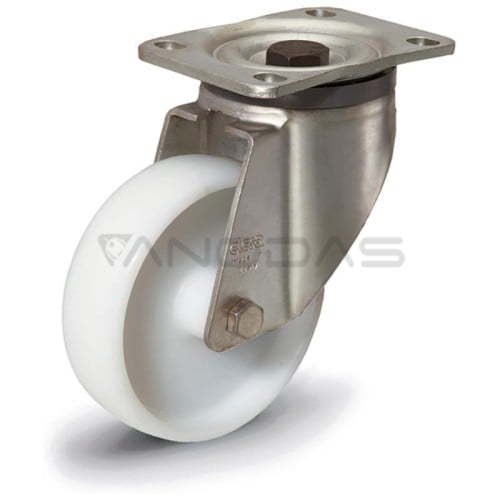

The RE.F8-200-SBL-H wheel set is an ideal solution for medium and heavy loads. Its wheel diameter is 200 mm and the load capacity is up to 730 kg. The set consists of a swivel housing with a mounting plate measuring 110x140 mm, a technopolymer hub based on polyamide (PA) and a technopolymer tread based on polyamide (PA). The wheel bearing is provided via a through hole directly in the wheel disc. Application: The RE.F8-200-SBL-H wheel set is suitable for many applications, such as transport carts, pallets, shelves, etc.

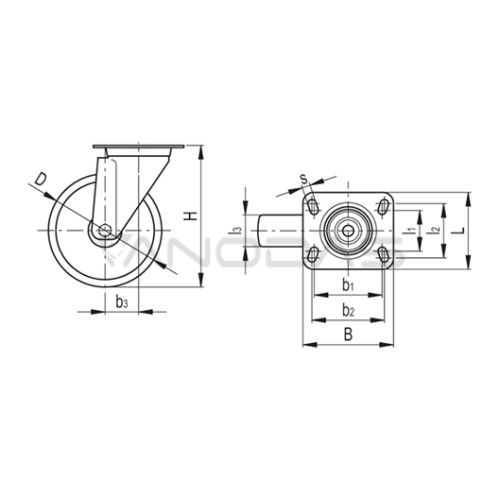

l%2%: 87
b2: -
l1: 73
L: 110
b3: 70
B: 140
b%1%: 105
Housing material: galvanized steel
Housing: swivel with mounting plate
Dynamic load #[N]: 7300
Rolling load capacity #[N]: 4550
Hub: polyamide based technopolymer (PA)
Tread: polyamide-based technopolymer (PA)
Tread hardness: 75 Shore D
Wheel diameter (D): 200
Tread width (l3): 50
Set height (H): 250
Mounting plate dimensions (L x B): 110x140
Dimension of mounting plate holes (s): 11
Load capacity [kg]: 730
Brake: no
Wheel bearing: through hole directly in the wheel disc

Tags: swivel, wheel, 200mm, plastic, with, mounting, plate, load, capacity, 730, re.f8-200-sbl-h, mx-re-f8-200-sbl-h, elesa+ganter
