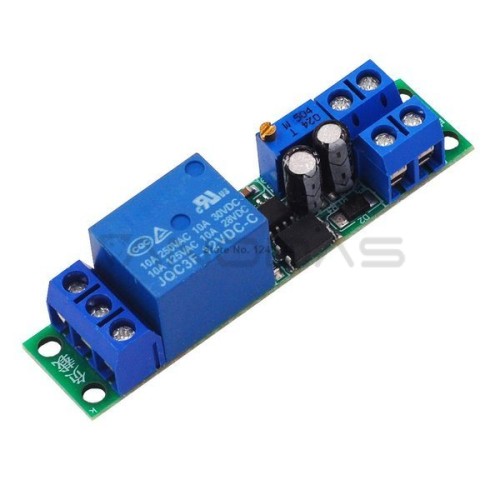

Timer relay module - Timer - 0-60s - 12V

Relay module with adjustable timing circuit in the range from 0 to 60 seconds. The system works on a simple principle: when 12 V power is supplied to the input, it starts measuring the set time and when this time is over the module turns off the relay.

The circuit can also be excited by applying a voltage to the SVCC input as the plus of the power supply and SIG as the minus of the power supply. The signal voltage range is from 3 to 20 V. The circuit starts timing from the disconnection of the signal voltage, so the signal must be a pulse.

Main features:

• The length time of the relay is regulated by a potentiometer soldered on the board
• At the output of the relay, there are three twisted sockets 1 extreme - NO, 2 middle - COM and 3 - NC extreme, so you can easily connect the wires
• The module has a diode that prevents reverse connection of the power supply

Specification:

• Simple circuit design
• Adjustable duty cycle: 0 - about the 60s
• Supply voltage: VCC+, GND: 12 V DC
• Excitation signal voltage range: SVCC+, SIG: from 3 to 20 V DC
• Time adjustment by multi-turn potentiometer
• Output: terminal strips ARK
• Relay contact load: 10 A / 250 V AC, or 10 A / 30 V DC
• PCB dimensions: 16 x 67 mm
