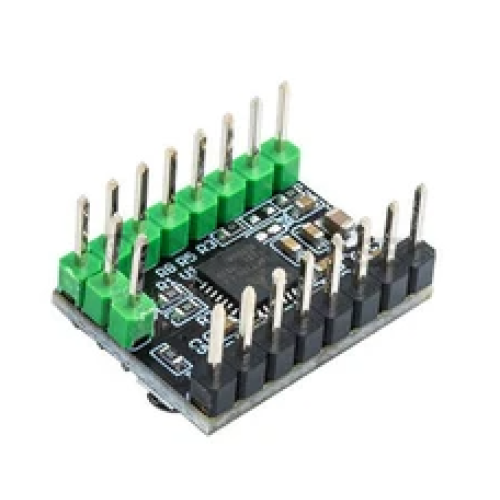

TMC2209 V2.0 3D Printer StepStick Stepper Motor Driver 2A UART

TMC2209 has all function of TMC2208, can completely replace TMC2208. At the same time, TMC2209 have better heat dissipation, support bigger current, support sensor-less homing function.

Features:

• Ultra quiet
• Large heat sink,good heat dissipation
• Support sensor-less homing function.
• Supports UART mode by setting jumper caps instead of soldering

Parameters:

• Default current: 0.88A
• Recommend max current: 1.72A
• Max current: 2a
• Logic voltage: 3.3V/5V
• Input voltage: 5.5V-28V
• Micro stepping: up to 1/256

Driver current regulation:

• V-ref measures the voltage between GND and potentiometer.
• DO NOT connect the motors when measuring the voltage, or you may to burn the drive.
• Connect the power supply when measuring voltage as well, do not connect only the USB power.
• Pay special attention to the polarity when inserting into the board!

Notice:

• The motor direction is opposite to that of A4988 and DRV8825, please adjust the firmware or adjust the motor wiring if you want to change A4988.
• Dir/step mode used in the printer control board, please pay attention to set the jumper cap MS1 MS2.

Package Included:

  1 x TMC2209 driver
