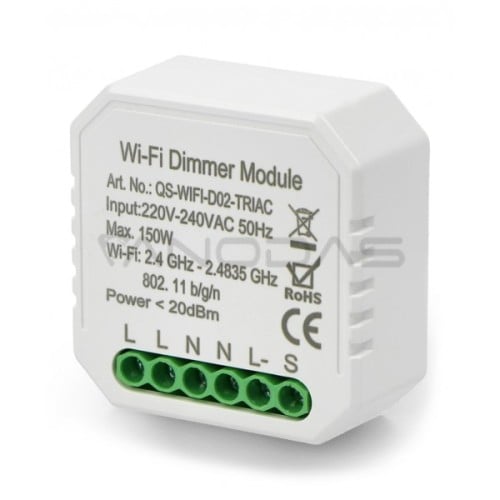

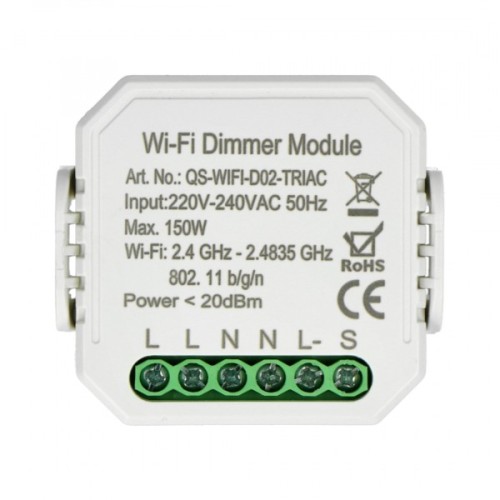

Tuya Dimmer - light driver 230V WiFi

A small, ready-made driver module, the backlight 230 V via wi-fi. The module allows to switch on / off the light circuit, and change the brightness of the light source in the form of incandescent lamps or LEDS. The maximum power of the managed device is 150 watts. Free app allows you to control the device from anywhere in the world. The module can also be mapped to a voice assistant, such as Google Home or Amazon's Alexa.

Technical data:

• Supply voltage: 85 V to 265 V AC. CURRENT / 50 Hz to 60 Hz

• Load power: 150 W

• Number of channels: 1

• Wi-Fi 2.4 GHz

• WiFi range : up to 30 m (depending on environmental conditions)

• Operating temperature: 0°C to 50°C

• Dimensions: 53 x 48 x 18 mm

• Weight: 72 g

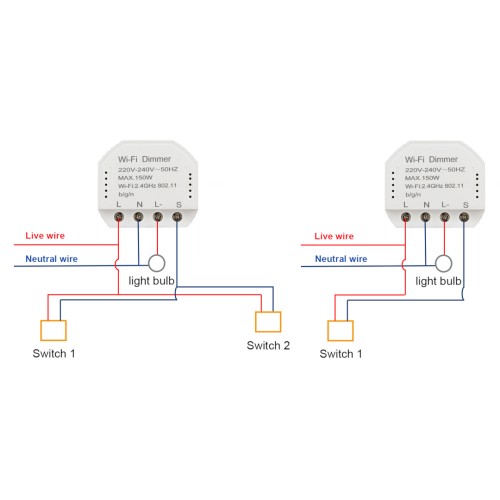

The module has four administration in the form of bolted connections, to which you can connect the wires with a screwdriver:

• L - power supply 230 to the positive pole.
• N - power, the neutral wire to ground.
• L- - the power of a controlled light source.
• S - the ability to connect external buttons to exit L-, the second line of the button must be connected to the phase line indicated by the symbol L.
