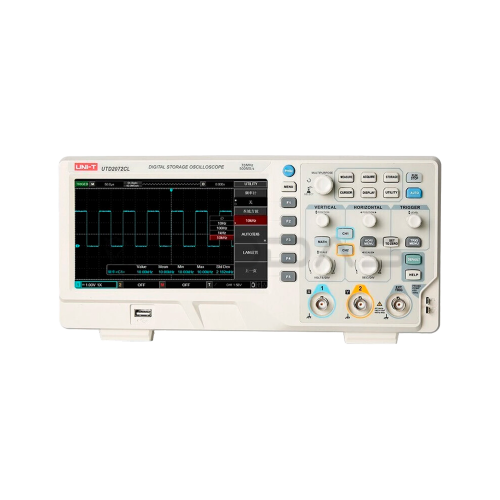

Uni-T Oscilloscope UTD2072CL
Brand: UNI-T
Product Code: MIE0482
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-09-26
Product Code: MIE0482
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-09-26
Ex Tax: 281.24€
-----------
MAIN PARAMETERS
-----------
Bandwidth: 25MHz
Number of channels: 2
Sampling rate: 500MS/s
Rise Time: <5ns
Memory depth: 64 kpts
Waveform Capture Rate: >5000wfms/s
Vertical Deflection Sensitivity: 1 mV/div ~ 20 V/div
DC measurement accuracy (average acquisition): ±(3% x reading + 0.1 div + 1 mV)
Input impedance: 1MOhm ±2%/24pF ±3pF
Polarity: positive/negative
Input voltage: max. 400 V (DC + AC peak)
Mathematical operations: addition, subtraction, multiplication, division, FFT
Time base: 2ns/div ~ 50s/div
Recording of measurement data: setup, waveform, bitmap
-----------
TRIGGER
-----------
Frequency counter: 6 digits
Trigger types: edge, pulse width, video, alternating
Trigger sources: CH1, CH2, Line, EXT
Trigger level range:
internal: ±8 div counted from the center of the screen
external: ±3V
Dead time rise range: 80 ns ~ 1.5 s
Edge trigger types: rising, falling, rising and falling
Self-adjusting: Yes
Ports: Pass/Fail output, USB OTG
-----------
GENERAL FEATURES
-----------
Power supply: 100 ~ 240V AC RMS, 50/60Hz
Display: 7” TFT LCD, WVGA (400x240 px)
Weight: 2.5 kg
Dimensions: 306x138x124mm
Accessories: 2x measuring probe, power cord, USB cable
MAIN PARAMETERS
-----------
Bandwidth: 25MHz
Number of channels: 2
Sampling rate: 500MS/s
Rise Time: <5ns
Memory depth: 64 kpts
Waveform Capture Rate: >5000wfms/s
Vertical Deflection Sensitivity: 1 mV/div ~ 20 V/div
DC measurement accuracy (average acquisition): ±(3% x reading + 0.1 div + 1 mV)
Input impedance: 1MOhm ±2%/24pF ±3pF
Polarity: positive/negative
Input voltage: max. 400 V (DC + AC peak)
Mathematical operations: addition, subtraction, multiplication, division, FFT
Time base: 2ns/div ~ 50s/div
Recording of measurement data: setup, waveform, bitmap
-----------
TRIGGER
-----------
Frequency counter: 6 digits
Trigger types: edge, pulse width, video, alternating
Trigger sources: CH1, CH2, Line, EXT
Trigger level range:
internal: ±8 div counted from the center of the screen
external: ±3V
Dead time rise range: 80 ns ~ 1.5 s
Edge trigger types: rising, falling, rising and falling
Self-adjusting: Yes
Ports: Pass/Fail output, USB OTG
-----------
GENERAL FEATURES
-----------
Power supply: 100 ~ 240V AC RMS, 50/60Hz
Display: 7” TFT LCD, WVGA (400x240 px)
Weight: 2.5 kg
Dimensions: 306x138x124mm
Accessories: 2x measuring probe, power cord, USB cable
