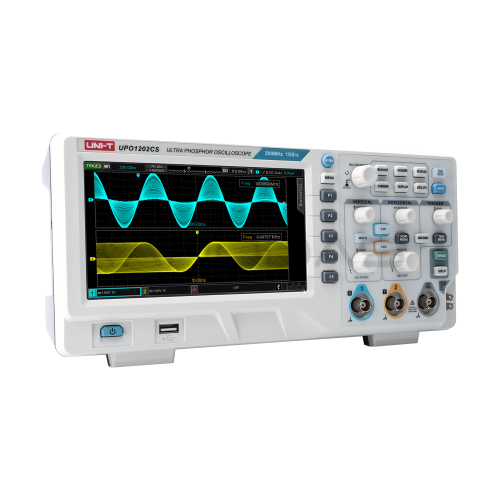

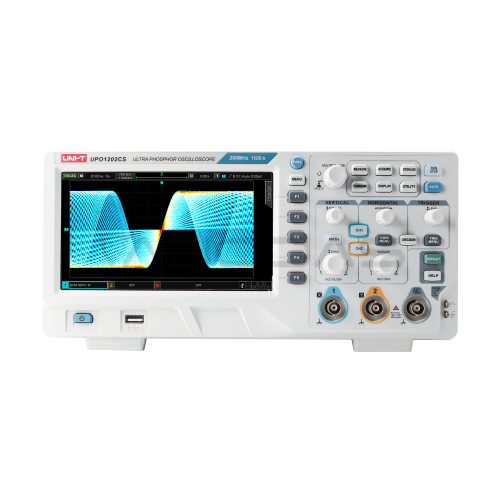

Uni-T UPO1202CS oscilloscope
Brand: UNI-T
Product Code: MIE0521
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-09-26
Product Code: MIE0521
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-09-26
Ex Tax: 395.12€
-----------
PARAMETRY GŁÓWNE
-----------
Szerokość pasma analogowego: 200 MHz
Czas narastania: <=1,8 ns
Liczba kanałów: 2
Częstotliwość próbkowania: 1 GS/s
Głębokość pamięci: 56 Mpts (1 kanał)
Szybkość przechwytywania przebiegu: 500 000 wfms/s
Podstawa czasu: 5 ns/div~50 s/div
Impedancja wejściowa: (1MOhm ±2%) II (20 pF ±3 pF)
Czułość odchylenia pionowego: 1 mV/div~20 V/div (1M?)
Dokładność wzmocnienia sygnału: <=±3%
Zapis przebiegów: 100 000 ramek
Sposoby wyzwalania: Edge, pulse width, runt, window, N-edge, delay, timeout, duration, setup/hold, slope, video, code
Opcje dekodowania magistrali szeregowych: RS232/UART, I2C
Operacje na przebiegach: A+B, A-B, AxB, A/B, FFT, operacje logiczne, zaawansowane
Pomiar automatyczny 27 parametrów: Peak-Peak, Amplitude, Maximum, Minimum, Top, Bottom, Mean, Middle, Cycle Mean,RMS, Cycle RMS, Area, Cycle Area, Overshoot, Preshoot, Frequency, Cycle, Rise Time,Fall Time, Positive Pulse, Negative Pulse, Positive Duty Ratio, Negative Duty Ratio,Delay A->B (Rising edge), Delay A->B (Falling edge), Delay B->A (Rising edge), Delay B->A (Falling edge).
Typy wyświetlenia wyników: 5 wyników jednocześnie
Statystyki pomiarów: Average, Max, Min, odchylenie standardowe, numer pomiaru
Okno częstotliwości: 6 bitów
Interfejsy: USB-Host, USB-Device, LAN, EXT Trig, AUX (Trig Out, Pass/Fail)
-----------
CECHY OGÓLNE
-----------
Zasilanie: 100V~240VAC, 50Hz/60Hz
Wyświetlacz: 7” TFT LCD, WVGA (800×480 px)
Waga: 3 kg
Wymiary: 306 x 138 x 124 mm
PARAMETRY GŁÓWNE
-----------
Szerokość pasma analogowego: 200 MHz
Czas narastania: <=1,8 ns
Liczba kanałów: 2
Częstotliwość próbkowania: 1 GS/s
Głębokość pamięci: 56 Mpts (1 kanał)
Szybkość przechwytywania przebiegu: 500 000 wfms/s
Podstawa czasu: 5 ns/div~50 s/div
Impedancja wejściowa: (1MOhm ±2%) II (20 pF ±3 pF)
Czułość odchylenia pionowego: 1 mV/div~20 V/div (1M?)
Dokładność wzmocnienia sygnału: <=±3%
Zapis przebiegów: 100 000 ramek
Sposoby wyzwalania: Edge, pulse width, runt, window, N-edge, delay, timeout, duration, setup/hold, slope, video, code
Opcje dekodowania magistrali szeregowych: RS232/UART, I2C
Operacje na przebiegach: A+B, A-B, AxB, A/B, FFT, operacje logiczne, zaawansowane
Pomiar automatyczny 27 parametrów: Peak-Peak, Amplitude, Maximum, Minimum, Top, Bottom, Mean, Middle, Cycle Mean,RMS, Cycle RMS, Area, Cycle Area, Overshoot, Preshoot, Frequency, Cycle, Rise Time,Fall Time, Positive Pulse, Negative Pulse, Positive Duty Ratio, Negative Duty Ratio,Delay A->B (Rising edge), Delay A->B (Falling edge), Delay B->A (Rising edge), Delay B->A (Falling edge).
Typy wyświetlenia wyników: 5 wyników jednocześnie
Statystyki pomiarów: Average, Max, Min, odchylenie standardowe, numer pomiaru
Okno częstotliwości: 6 bitów
Interfejsy: USB-Host, USB-Device, LAN, EXT Trig, AUX (Trig Out, Pass/Fail)
-----------
CECHY OGÓLNE
-----------
Zasilanie: 100V~240VAC, 50Hz/60Hz
Wyświetlacz: 7” TFT LCD, WVGA (800×480 px)
Waga: 3 kg
Wymiary: 306 x 138 x 124 mm
