Uni-T UT221 Digital Current Meter

Brand: UNI-T
Product Code: UT221
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2026-05-29

107.70€
Ex Tax: 89.01€

Qty

Add to Wish List

Description Product Delivery

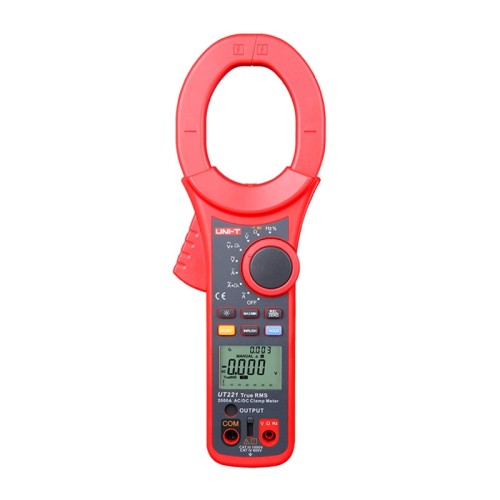

Uni-T UT221 Digital Clamp Meter

The Uni-T UT221 is a more advanced clamp meter from the UT220 series, designed to measure high AC and DC currents up to 2000 A. The device was created for professional applications where greater precision, a wider range of functions, and convenient operation are essential when measuring high current values. With a jaw opening of 63 mm, automatic range switching, and a higher maximum reading, this model performs well in more demanding tasks.

Greater capabilities and a wider range of functions

The UT221 model allows for the measurement of AC and DC current up to 2000 A, AC voltage up to 750 V, DC voltage up to 1000 V, resistance up to 66 MΩ, and frequency up to 20 MHz. Compared to the UT220 model, it offers a maximum reading of 6000, True RMS for AC voltage and current, duty cycle measurement, low-pass filter, inrush current measurement, relative mode, and MIN/I-OUT functions. An additional advantage is the 66-segment analog bar graph, which makes it easier to observe changes during measurement.

Ready for more demanding tasks

The meter is equipped with a diode test, continuity buzzer, Data Hold and MAX functions, a full set of icons, and a low battery indicator. Powered by a 9V 6F22 battery, weighing 726 g, and measuring 298 × 107 × 47 mm, this model remains a robust tool for advanced applications.

Included

Clamp meter
Battery x1
Test leads
Output cable
Carrying case
User manual

Specifications

Manufacturer	Uni-T
Model	UT221
Type	True RMS clamp meter
AC current	2000A ±(2.5%+5)
DC current	2000A ±(2.5%+5)
AC voltage	750V ±(1.2%+5)
DC voltage	1000V ±(0.8%+1)
Resistance	66MΩ ±(1%+2)
Frequency	20MHz ±(0.1%+3)
Duty cycle	10% ~ 90%
Maximum reading	6000
Functions	True RMS, diode test, continuity test, Data Hold, MAX, Relative mode, low-pass filter, inrush current measurement, analog bar graph, automatic range switching, low battery indicator
Jaw opening	63 mm
Power supply	9V battery (6F22)
Display	43 x 30 mm
Dimensions	298 x 107 x 47 mm
Weight	726 g
Certifications	CE, UKCA, cETLus

Tags: uni-t, ut221, digital, current, meter
